1980 Kawasaki KV75 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 1980 Kawasaki KV75, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

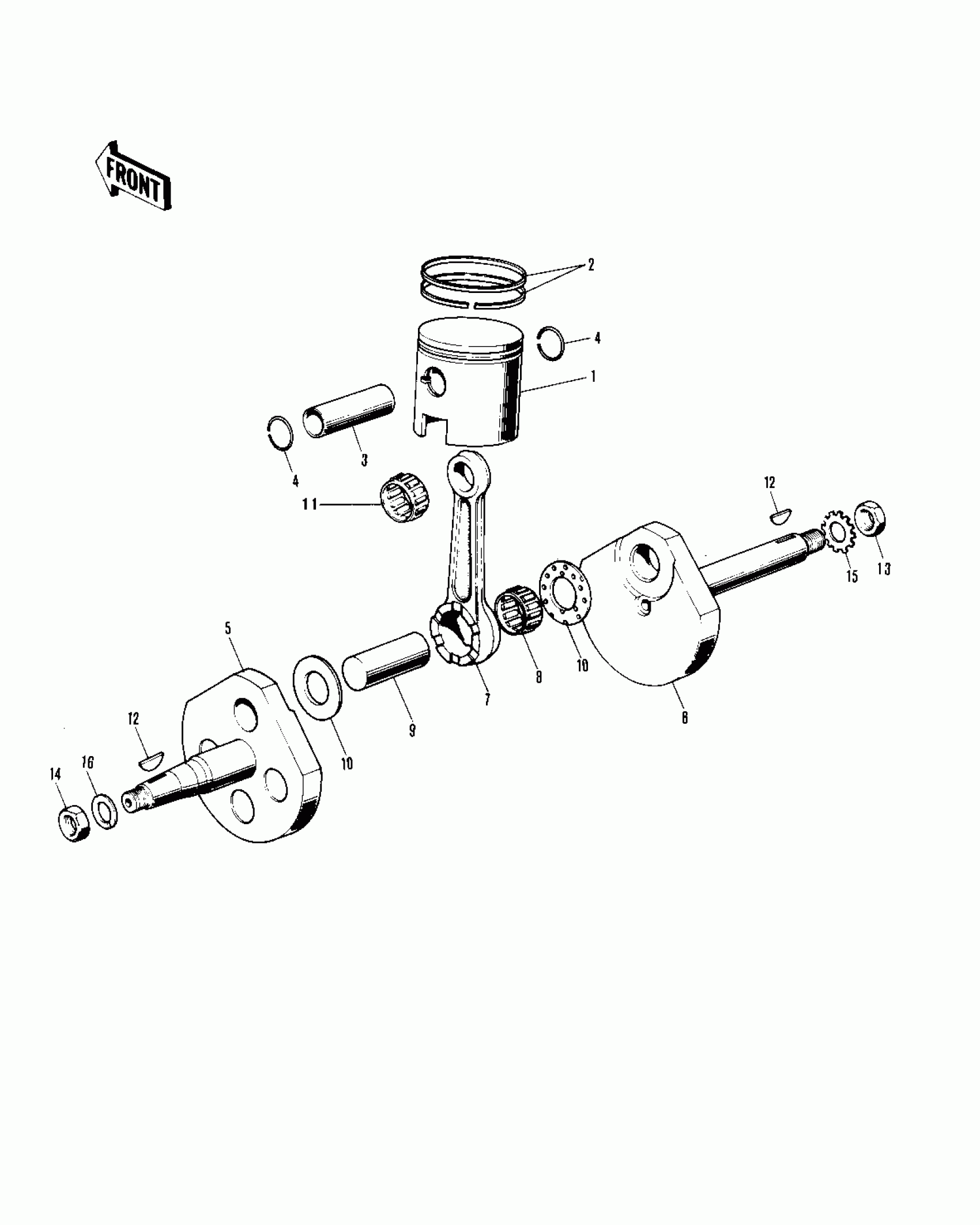

1980 Kawasaki KV75 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON,STD

13001-047

1
Out of stock

2

RING SET,STD

13008-029

1
Out of stock

3

PIN-PISTON

13002-019

1
Out of stock

4

RING-SNAP,PISTON PIN

92036-007

1
Out of stock

5 10

CRANK - CONROD ASSY

13036-030

1
Out of stock

5

CRANKSHAFT L.H

13037-043

1
Out of stock

6

CRANKSHAFT R.H

13038-039

1
Out of stock

7 10

CONNECTING ROD SET

13044-015

1
Out of stock

8

NEEDLE BEARING-BG END

13034-002

1
Out of stock

9

CRANK PIN

13035-024

1
Out of stock

10

WASHER-SIDE

92026-002

1
Out of stock

11

BEARING-NEEDLE,72KTV030

13033-028

1
Out of stock

12

KEY,WOODRUFF

92038-001

1
Out of stock

13

NUT,12MM

92016-024

1
Out of stock

14

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

15

WASHER-TOOTHED,12MM

464H1200

1
Out of stock

16

WASHER SPRING 10MM

461F1000

1
Out of stock
