1976 Kawasaki KV100-A7 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

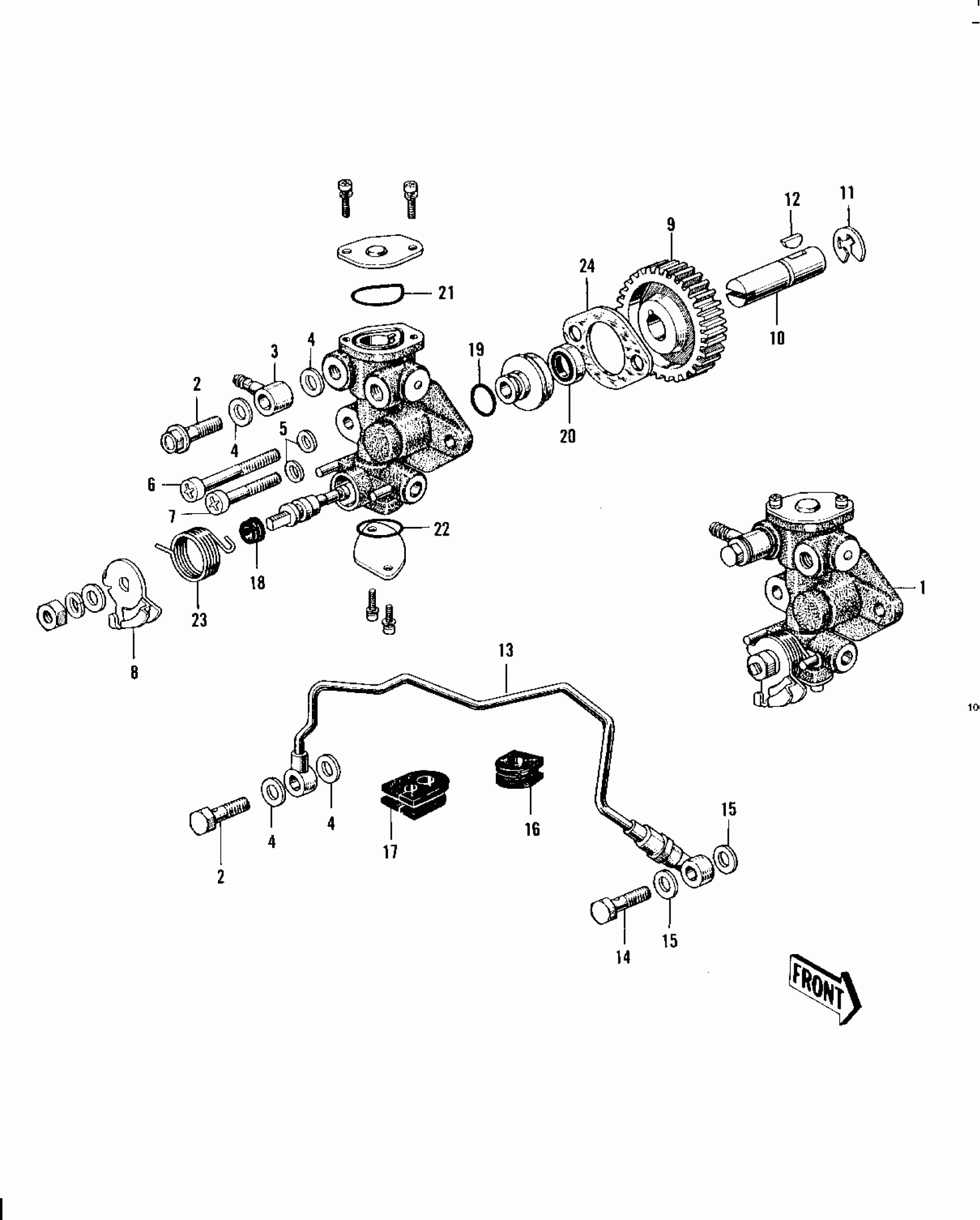

1976 Kawasaki KV100-A7 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

16082-021

1
Out of stock

2

BOLT,BANJO,L=16

92060-013

1
Out of stock

2

BOLT,BANJO,L=16

92060-013

1
Out of stock

3

FITTING,BANJO

92061-009

1
Out of stock

4

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

5

WASHER,5.5X10.5X0.8

92022-037

1
Out of stock

6

SCREW-PAN-CROS

220B0514

1
Out of stock

7

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

8

LEVER-OIL PUMP CABLE

16096-001

1
Out of stock

9

GEAR,OIL PUMP

16085-004

1
Out of stock

10

SHAFT,OIL PUMP

16086-001

1
Out of stock

11

CIRCLIP-TYPE-E,9MM

482K9000

1
Out of stock

12

KEY-WOODRUFF

510A3100

1
Out of stock

13

PIPE OIL

16129-003

1
Out of stock

14

BOLT BANJO CHECK VLV

92001-052

1
Out of stock

15

GASKET,8.5X16X1

92065-023

1
Out of stock

16

GROMMET OIL PIPE A

16135-001

1
Out of stock

17

GROMMET OIL PIPE B

16135-005

1
Out of stock

18

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

1
Out of stock

19

RING-O,OIL PUMP SHAFT

16090-002

1
Out of stock

20

SEAL-OIL,OIL PUMP SHAFT

16091-001

1
Out of stock

21

RING-O,CAP,BANJO SIDE

16088-002

1
Out of stock

22

"0" RING,LOWER CAP

16090-003

1
Out of stock

23

SPRING OIL PUMP LEVER

16093-004

1
Out of stock

24

GASKET,OIL PUMP

11060-1160

1
Out of stock
← Muffler Oil Pump →
