1976 Kawasaki KV100-A7 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

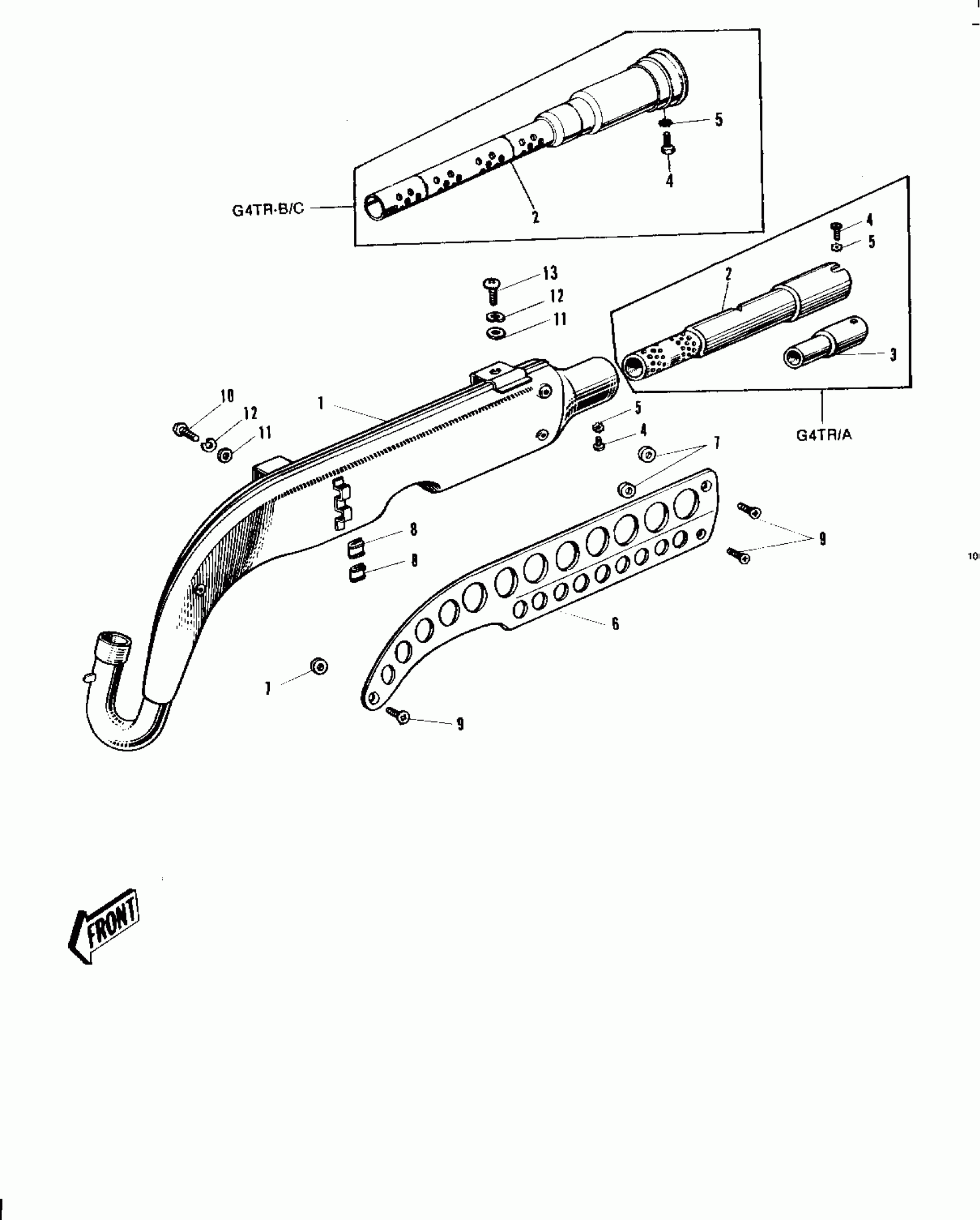

1976 Kawasaki KV100-A7 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSY

18001-069

1

$263.99

In stock

1

MUFFLER ASSY

18001-069

1

$263.99

In stock

2

1

$74.24

In stock

2

BAFFLE TUBE

18033-055

1

$91.77

In stock

3

BAFFLE TUBE

18033-039

1
Out of stock

4

BOLT,6X10

112G0610

1
Out of stock

4

BOLT,6X10

112G0610

1
Out of stock

5

WASHER LOCK 6MM

464H0600

1
Out of stock

5

WASHER LOCK 6MM

464H0600

1
Out of stock

6

COVER,MUFFLER

18057-046

1
Out of stock

6

COVER,MUFFLER

18057-046

1
Out of stock

6

COVER,MUFFLER

18057-046

1
Out of stock

7

INSULATOR

18065-001

1
Out of stock

8

INSULATOR

18065-007

1
Out of stock

9

SCREW PAN HEAD 6X10

221E0610

1
Out of stock

10

BOLT-SMALL-UPSET,8X16

115G0816

1
Out of stock

11

WASHER PLAIN 8MM

410B0800

1
Out of stock

12

WASHER SPRING 8MM

461F0800

1
Out of stock

13

SCREW-PAN HEAD,8X16

220B0816

1
Out of stock
