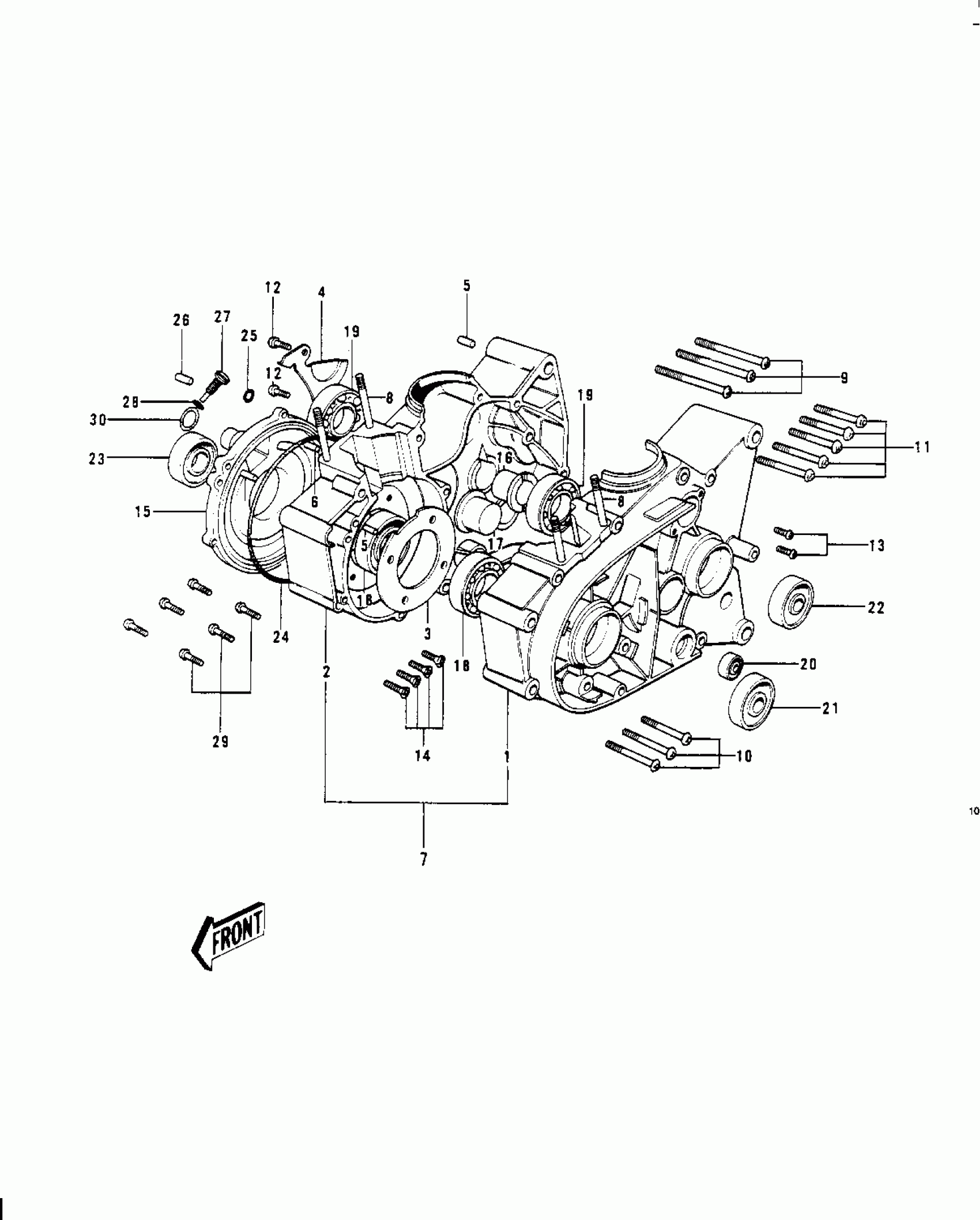

Kawasaki KV100-A7 CRANKCASE ('70-'73) Diagram

#

Description
Price

1

CRANKCASE,L.H

14002-084

Unavailable

2

CRANK CASE,R.H

14003-039

Unavailable

3

PLATE-POSITION

14014-017

$8.24

4

PLATE-POSITION

14014-008

$7.32

5

PIN DOWEL 8X16

551A0816

$1.14

6

ROLLER,5X12

610A0512

$4.53

7

CRANKCASE SET

14001-044

Unavailable

8

BOLT-STUD,8X115

172G08115

Unavailable

9

SCREW PAN HEAD 6X65

220B0665

Unavailable

10

SCREW-PAN-CROS,6X60

220B0660

Unavailable

11

SCREW PAN HEAD 6X40

220B0640

Unavailable

12

SCREW PAN HEAD 6X25

220B0625

Unavailable

13

SCREW PAN HEAD 6X12

220B0612

Unavailable

14

SCREW-CSK-CROS,6X16

221B0616

$0.54

15

COVER ROTARY DISC VLV

14019-032

Unavailable

16

BUSHING,L=14

92028-069

$37.73

17

BUSHING,L=23.5

92028-025

$40.77

18

BEARING-BALL,#6204C3

601B6204

$10.33

19

BEARING-BALL,#6005C3

601B6005

$12.79

20

SEAL-OIL,SB12205

92049-004

$7.63

21

SEAL-OIL

92049-1240

$12.80

22

OIL SEAL SC32435.5

92050-032

Unavailable

23

SEAL-OIL

92049-1250

$14.78

24

RING-O,100MM

92055-010

$7.63

25

RING-O,7.8X3.5

92055-029

$3.51

26

PIN,DOWEL,8X16

92042-017

$4.89

27

NOZZLE OIL INJECTION

92062-004

Unavailable

28

"0" RING,5MM

92055-011

Unavailable

29

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

30

O RING,26MM

670B3026

$3.89
