1976 Kawasaki KV100-A7 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

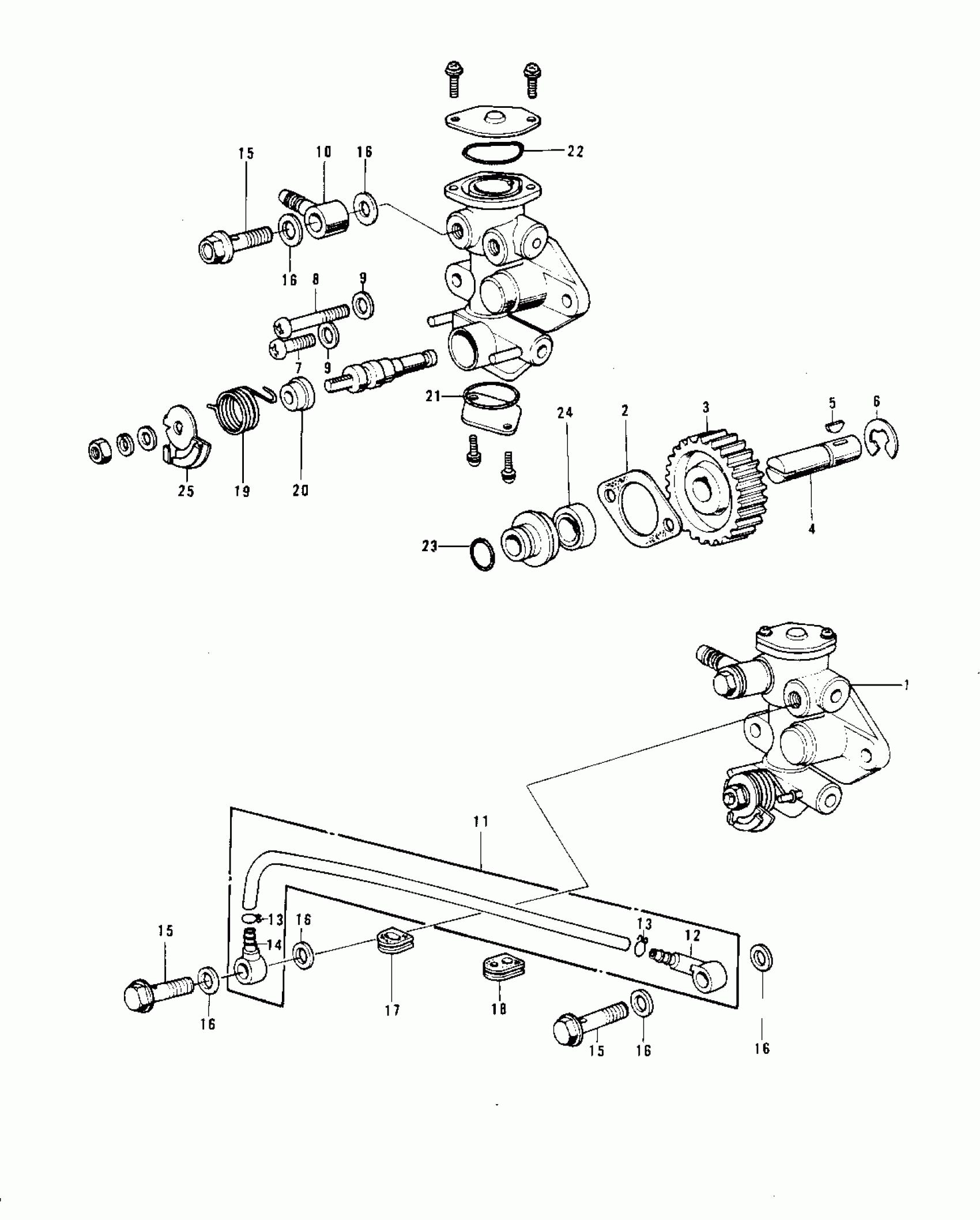

1976 Kawasaki KV100-A7 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP-ASSY-OIL

16082-067

1
Out of stock

2

GASKET,OIL PUMP

11060-1160

1
Out of stock

3

GEAR,OIL PUMP

16085-004

1
Out of stock

4

SHAFT,OIL PUMP

16086-001

1
Out of stock

5

KEY-WOODRUFF

510A3100

1
Out of stock

6

CIRCLIP-TYPE-E,9MM

482K9000

1
Out of stock

7

SCREW-PAN-CROS

220B0514

1
Out of stock

8

SCREW-PAN-CROS

220B0528

1
Out of stock

9

WASHER,5.5X10.5X0.8

92022-037

1
Out of stock

10

FITTING,BANJO

92061-009

1
Out of stock

11

TUBE,OIL

16134-021

1
Out of stock

12

VALVE-CHECK

16128-009

1
Out of stock

13

RING-SNAP

92036-022

1
Out of stock

14

FITTING,BANJO

92061-018

1
Out of stock

15

BOLT,BANJO,L=16

92060-013

1
Out of stock

16

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

17

GROMMET

21017-002

1
Out of stock

18

GROMMET,OIL PIPE

92071-067

1
Out of stock

19

SPRING,OIL PUMP LEVER

16093-006

1
Out of stock

20

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

1
Out of stock

21

"0" RING,LOWER CAP

16090-003

1
Out of stock

22

RING-O,CAP,BANJO SIDE

16088-002

1
Out of stock

23

RING-O,OIL PUMP SHAFT

16090-002

1
Out of stock

24

SEAL-OIL,OIL PUMP SHAFT

16091-001

1
Out of stock

25

LEVER-OIL PUMP

16096-012

1
Out of stock
