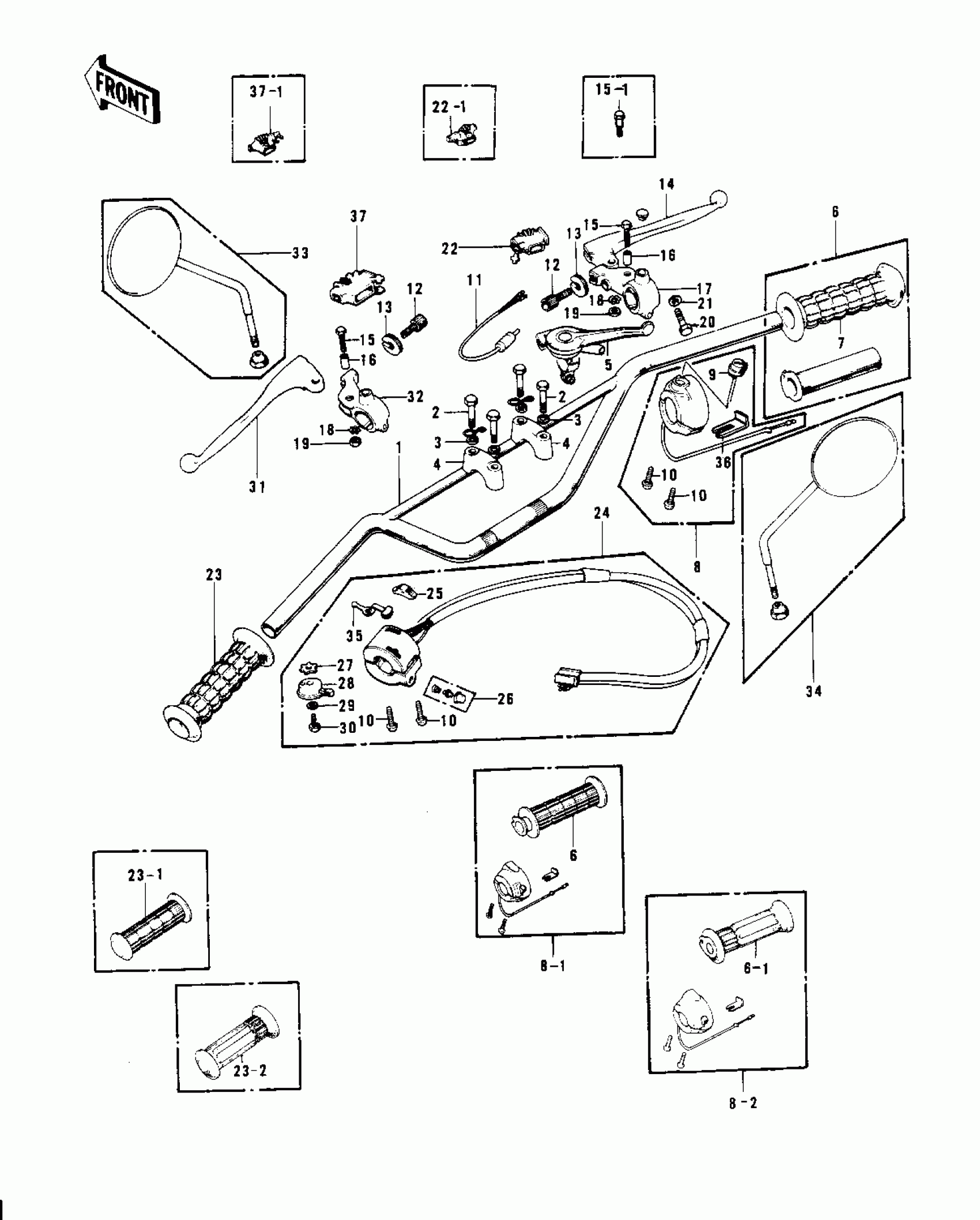

Kawasaki KV100-A7 HANDLEBAR 1/2 ('74-'75) Diagram

#

Description
Price

1

HANDLEBAR

46004-004

Unavailable

2

BOLT 8X38

92001-1405

$12.52

2

BOLT 8X38

92001-1405

$12.52

3

WASHER SPRING 8MM

461F0800

Unavailable

4

HOLDER-HANDLE,UPP

46012-008

$33.69

5

LEVER-CHANGE

46131-002

Unavailable

6

GRIP ASSY-THROTTLE

46019-020

Unavailable

6

GRIP ASSY,THROTTLE

46019-034

$47.40

6-1

GRIP ASSY,THROTTLE

46019-039

Unavailable

7

RUBBER-R.H. GRIP

46061-013

Unavailable

8

CASE ASSY,R.H,BLACK

46018-020-10

Unavailable

8-1

CASE ASSY,R.H

46018-036

Unavailable

8-2

CASE ASSY,R.H

46018-047

Unavailable

9

SWITCH-ENGINE STOP

46027-008

Unavailable

10

SCREW-PAN-CROS,5X25

220B0525

$3.24

11

SWITCH,FR BRAKE LAMP

27021-004

$31.99

12

SCREW,CABLE ADJUST,8MM

46055-009

$14.38

13

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

14

LEVER-GRIP,FRONT BRAKE

46058-004

$20.15

15

BOLT HEX HEAD 5X20

92007-020

Unavailable

15-1

BOLT,5X22

92007-046

$6.08

16

COLLAR LEVER

46059-011

Unavailable

17

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

$41.48

18

WASHER LOCK 5MM

464H0500

$1.51

19

NUT-HEX,5MM

312B0500

Unavailable

19

NUT,LOCK,5MM

92019-014

$4.00

20

BOLT HEX HEAD 6X25

110N0625

Unavailable

21

WASHER PLAIN 6MM

411B0600

Unavailable

22

DUST COVER

46071-002

Unavailable

22-1

BOOT,LEVER HOLDER

49006-1017

$14.12

23

RUBBER-L.H.GRIP

46075-018

Unavailable

23-1

RUBBER-L.H GRIP

46075-019

Unavailable

23-2

RUBBER,L.H GRIP

46075-029

$11.86

24

CASE ASSY,L.H,BLACK

46091-019-10

Unavailable

24

HOUSING-ASSY-CONTROL,LH

46091-040

Unavailable

25

KNOB-L.H SWITCH

46044-011

Unavailable

26

SWITCH ASSY LH BUTTON

46078-003

$7.01

27

WASHER LOCK

92095-012

Unavailable

28

LEVER STARTER

46096-008-10

$23.59

29

WASHER PLAIN 6MM

411B0600

Unavailable

30

BOLT HEX HEAD 6X8

110B0608

Unavailable

31

LEVER-GRIP,CLUTCH

46092-015

$19.69

32

HOLDER,F.BLACK

46094-011-21

$36.50

33

MIRROR-ASSY,LH

56003-009

$60.14

34

MIRROR-ASSY,RH

56002-020

$68.40

35

KNOB-SWITCH

46044-010

Unavailable

36

HOLDER,CONTROL CABLE

46037-023

Unavailable

37

DUST COVER

46071-002

Unavailable

37-1

BOOT,LEVER HOLDER

49006-1017

$14.12
