1976 Kawasaki KV100-A7 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

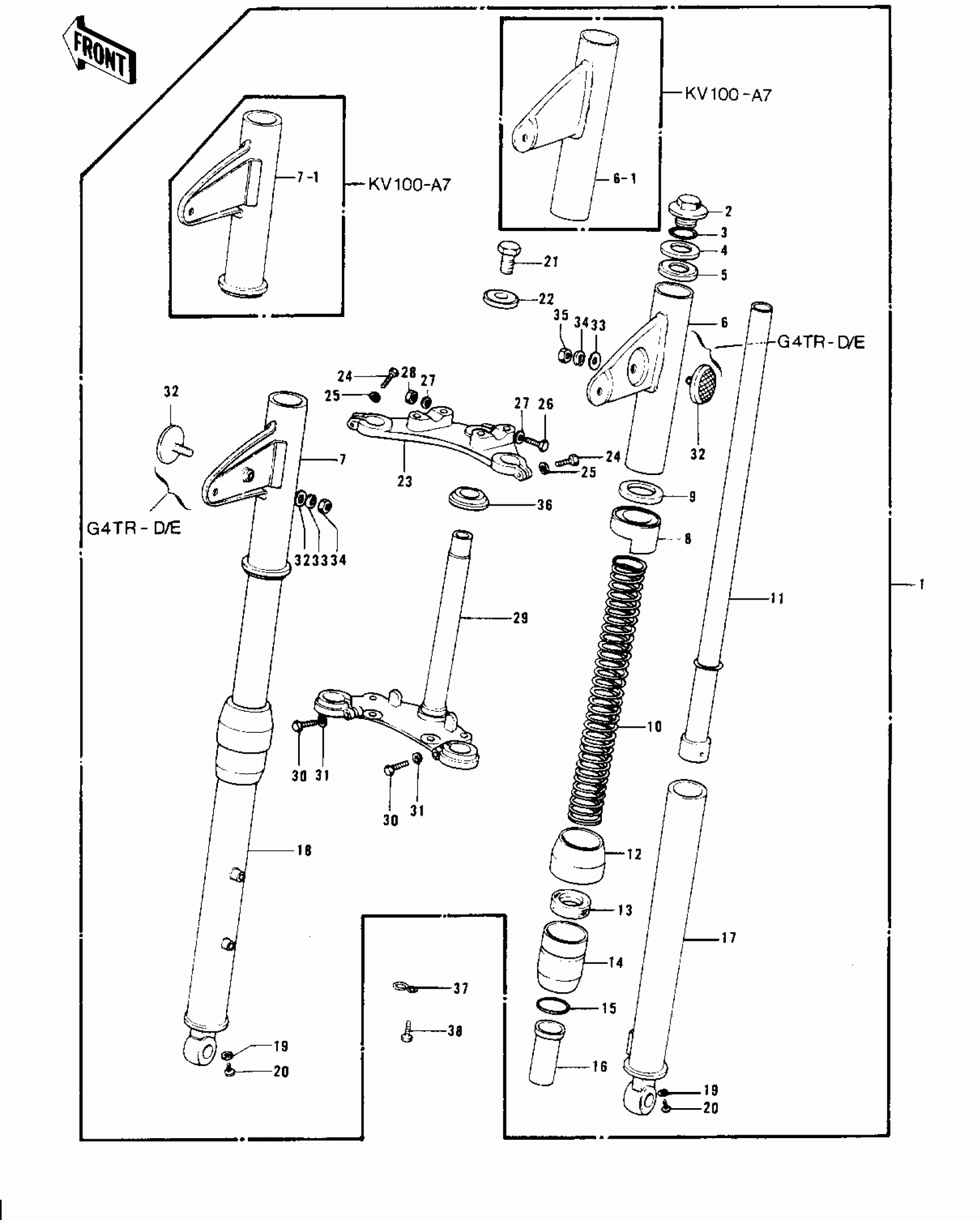

1976 Kawasaki KV100-A7 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT,F.BLACK

44001-100-21

1

$562.36

In stock

1

FORK-FRONT,F.BLACK

44001-179-21

1

$855.15

In stock

2

BOLT-FORK TOP

44041-036

1

$15.83

In stock

3

'O' RING INNER TUBE

44046-014

1
Out of stock

4

GASKET-FORK COVER

44045-037

1
Out of stock

5

WASHER-FORK COVER

44043-046

1

$10.41

In stock

6

COVER-L.H FORK,F.BLK

44033-051-21

1
Out of stock

6-1

COVER,L.H FORK,F.BLK

44033-078-21

1

$43.47

In stock

7

COVER-R.H FORK F BLK

44034-051-21

1
Out of stock

7-1

COVER,R.H FORK,F.BLK

44034-078-21

1

$36.34

In stock

8

GUIDE-FORK COVER

44030-010

1
Out of stock

9

GASKET FORK COVER

44045-012

1
Out of stock

10

SPRING-FORK

44026-040

1

$40.80

In stock

11

TUBE-FORK INNER

44013-034

1
Out of stock

12

DUST SHIELD FORK

44010-006

1
Out of stock

13

OIL SEAL

92049-1049

1
Out of stock

14

1

$59.80

In stock

15

'O' RING OUTER TUBE

44046-012

1
Out of stock

16

1

$27.15

In stock

17

TUBE,LH,FORK OUTER

44005-043

1

$111.17

In stock

18

TUBE,RH,FORK OUTER

44006-041

1

$136.22

In stock

19

1

$4.12

In stock

20

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

21

BOLT STRNG STEM HEAD

44041-007

1
Out of stock

22

1

$10.56

In stock

23

HOLDER-FORK UPPER

44039-047

1
Out of stock

24

BOLT-STEERING STEM HD

44041-044

1
Out of stock

25

WASHER SPRING 8MM

461F0800

1
Out of stock

26

BOLT-HEX HEAD.8M/M

44041-045

1

$24.03

In stock

27

WASHER PLAIN 8MM

410B0800

1
Out of stock

28

NUT,LOCK,8MM

92015-1124

1
Out of stock

28

NUT,LOCK,8MM

92017-013

1

$8.22

In stock

29

STEM-STEERING

44037-052

1

$304.92

In stock

30

BOLT, PINCH, 10MM

44041-010

1
Out of stock

31

WASHER SPRING 10MM

461F1000

1
Out of stock

32

REFLECTOR-REFLEX,FRNT

28001-011

1
Out of stock

33

WASHER-PLAIN,5MM

411B0500

1
Out of stock

34

WASHER SPRING 5MM

461F0500

1
Out of stock

35

NUT-HEX

311B0500

1

$0.51

In stock

36

RACE,LOWER BEARING

92047-004

1
Out of stock

37

CLAMP,CABLE

92037-046

1

$4.41

In stock

38

BOLT,6X10

112G0610

1
Out of stock
