1976 Kawasaki KV100-A7 Front Fork G4TR-C Diagram

← All diagrams

Find the part on the Front Fork G4TR-C diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

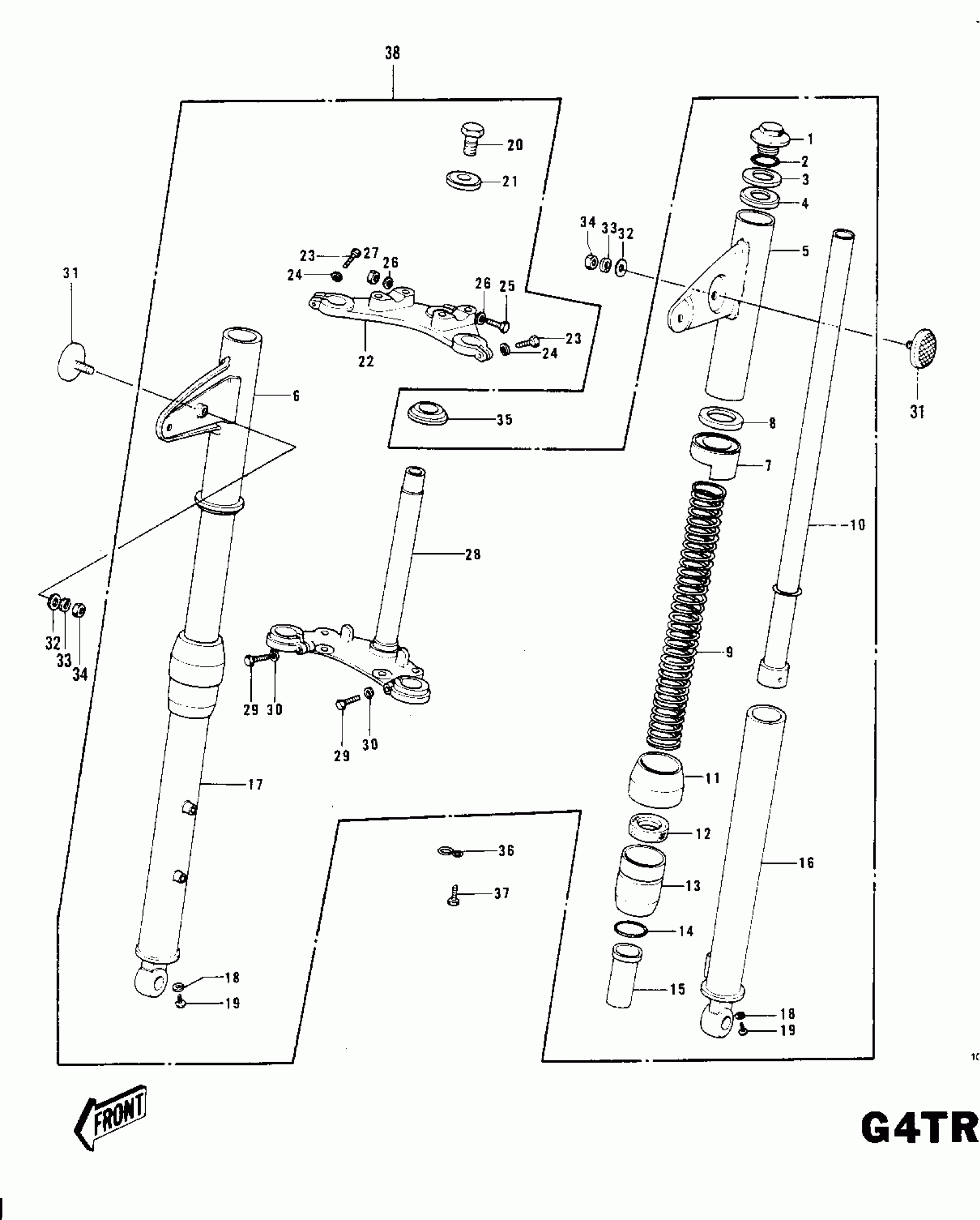

1976 Kawasaki KV100-A7 Front Fork G4TR-C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-FORK TOP

44041-036

1
Out of stock

2

'O' RING INNER TUBE

44046-014

1
Out of stock

3

GASKET-FORK COVER

44045-037

1
Out of stock

4

WASHER-FORK COVER

44043-046

1
Out of stock

5

COVER-L.H FORK,F.BLK

44033-051-21

1
Out of stock

6

COVER-R.H FORK F BLK

44034-051-21

1
Out of stock

7

GUIDE-FORK COVER

44030-010

1
Out of stock

8

GASKET FORK COVER

44045-012

1
Out of stock

9

SPRING-FORK

44026-040

1
Out of stock

10

TUBE-FORK INNER

44013-034

1
Out of stock

11

DUST SHIELD FORK

44010-006

1
Out of stock

12

OIL SEAL

92049-1049

1
Out of stock

13

NUT FORK OUTER TUBE

44007-007

1
Out of stock

14

'O' RING OUTER TUBE

44046-012

1
Out of stock

15

GUIDE-FORK INNER TUBE

44015-013

1
Out of stock

16

TUBE,LH,FORK OUTER

44005-043

1
Out of stock

17

TUBE,RH,FORK OUTER

44006-041

1
Out of stock

18

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

19

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

20

BOLT STRNG STEM HEAD

44041-007

1
Out of stock

21

WASHER STRNG STEM HD

44043-016

1
Out of stock

22

HOLDER-FORK UPPER

44039-047

1
Out of stock

23

BOLT-STEERING STEM HD

44041-044

1
Out of stock

24

WASHER SPRING 8MM

461F0800

1
Out of stock

25

BOLT-HEX HEAD.8M/M

44041-045

1
Out of stock

26

WASHER PLAIN 8MM

410B0800

1
Out of stock

27

NUT,LOCK,8MM

92015-1124

1
Out of stock

27

NUT,LOCK,8MM

92015-1124

1
Out of stock

28

STEM-STEERING

44037-052

1
Out of stock

29

BOLT, PINCH, 10MM

44041-010

1
Out of stock

30

WASHER SPRING 10MM

461F1000

1
Out of stock

31

REFLECTOR-REFLEX,FRNT

28001-011

1
Out of stock

32

WASHER-PLAIN,5MM

411B0500

1
Out of stock

33

WASHER SPRING 5MM

461F0500

1
Out of stock

34

NUT-HEX

311B0500

1
Out of stock

35

RACE,LOWER BEARING

92047-004

1
Out of stock

36

CLAMP,CABLE

92037-046

1
Out of stock

37

BOLT-UPSET,6X12

112G0612

1
Out of stock

38

FORK-FRONT,F.BLACK

44001-100-21

1
Out of stock
