1976 Kawasaki KV100-A7 Front Fork G4TR-B Diagram

← All diagrams

Find the part on the Front Fork G4TR-B diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

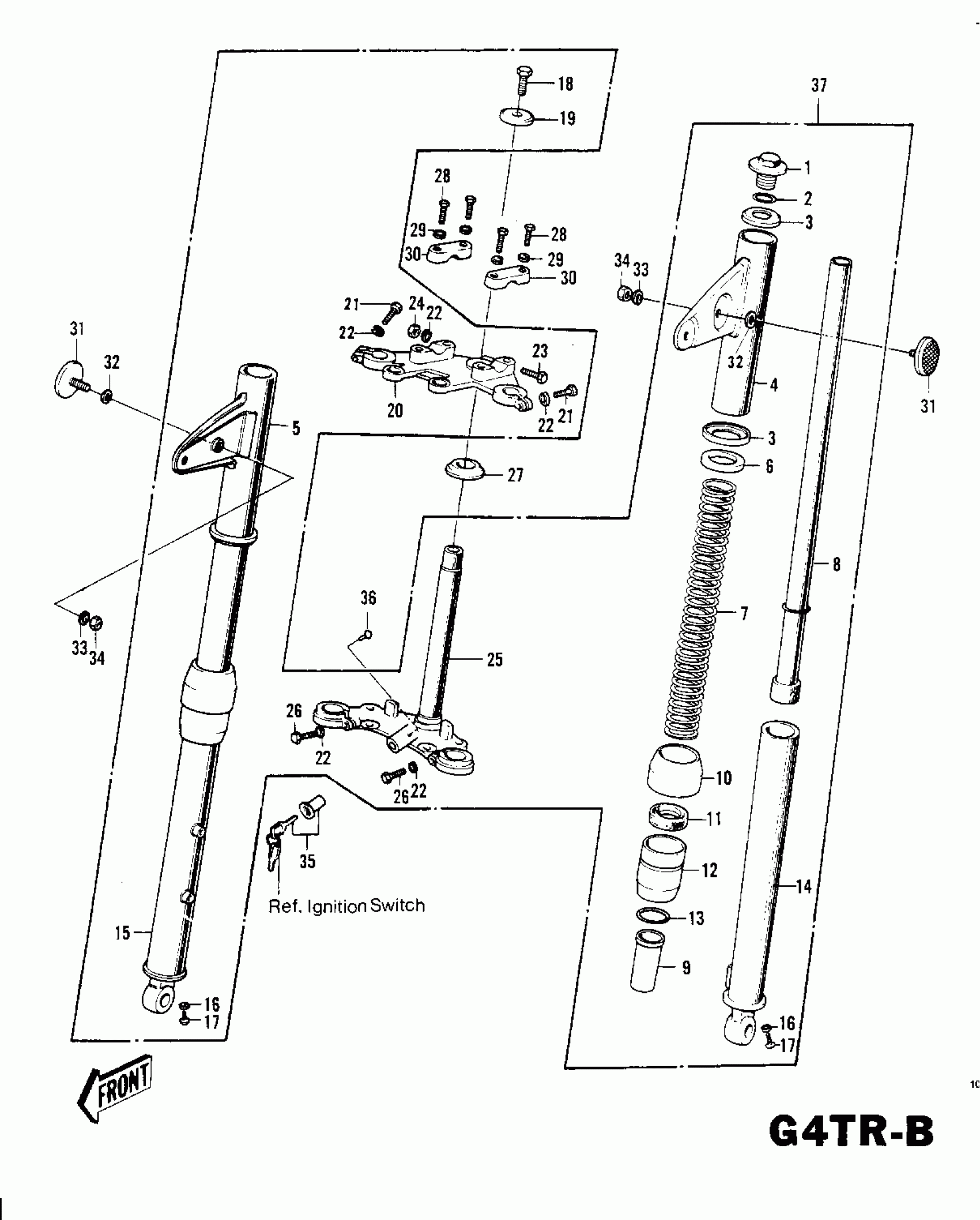

1976 Kawasaki KV100-A7 Front Fork G4TR-B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-FORK TOP

44041-036

1
Out of stock

2

'O' RING INNER TUBE

44046-014

1
Out of stock

3

WASHER FORK COVER

44043-035

1
Out of stock

4

COVER-L.H FORK,BLACK

44033-042-21

1
Out of stock

5

COVER-R.H FORK,BLACK

44034-041-21

1
Out of stock

6

GASKET FORK COVER

44045-012

1
Out of stock

7

SPRING-FORK

44026-040

1
Out of stock

8

TUBE-FORK INNER

44013-034

1
Out of stock

9

GUIDE-FORK INNER TUBE

44015-013

1
Out of stock

10

DUST SHIELD FORK

44010-006

1
Out of stock

11

OIL SEAL

92049-1049

1
Out of stock

12

NUT FORK OUTER TUBE

44007-007

1
Out of stock

13

'O' RING OUTER TUBE

44046-012

1
Out of stock

14

TUBE,LH,FORK OUTER

44005-043

1
Out of stock

15

TUBE,RH,FORK OUTER

44006-041

1
Out of stock

16

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

17

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

18

BOLT STRNG STEM HEAD

44041-007

1
Out of stock

19

WASHER STRNG STEM HD

44043-016

1
Out of stock

20

HEAD-STEERING STEM

44039-043

1
Out of stock

21

BOLT-HEX HEAD 10MM

44041-039

1
Out of stock

22

WASHER SPRING 10MM

461F1000

1
Out of stock

23

BOLT-HEX HEAD,10X30

44041-041

1
Out of stock

24

NUT,10 M/M

314N1000

1
Out of stock

25

STEM-STEERING

44037-045

1
Out of stock

26

BOLT, PINCH, 10MM

44041-010

1
Out of stock

27

RACE,LOWER BEARING

92047-004

1
Out of stock

28

BOLT 8X38

92001-1405

1
Out of stock

28

BOLT 8X38

92001-1405

1
Out of stock

29

WASHER SPRING 8MM

461F0800

1
Out of stock

30

HOLDER-HANDLE,UPP

46012-004

1
Out of stock

31

REFLECTOR-REFLEX,FRNT

28001-011

1
Out of stock

32

WASHER-PLAIN,5MM

411B0500

1
Out of stock

33

WASHER SPRING 5MM

461F0500

1
Out of stock

34

NUT-HEX

311B0500

1
Out of stock

35

LOCK ASSY,STEERING

27016-5025

1
Out of stock

35

LOCK ASSY,STEERING

27016-5025

1
Out of stock

36

RIVET

92099-001

1
Out of stock

37

FORK-FRONT,BLACK

44001-089-21

1
Out of stock
