1976 Kawasaki KV100-A7 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

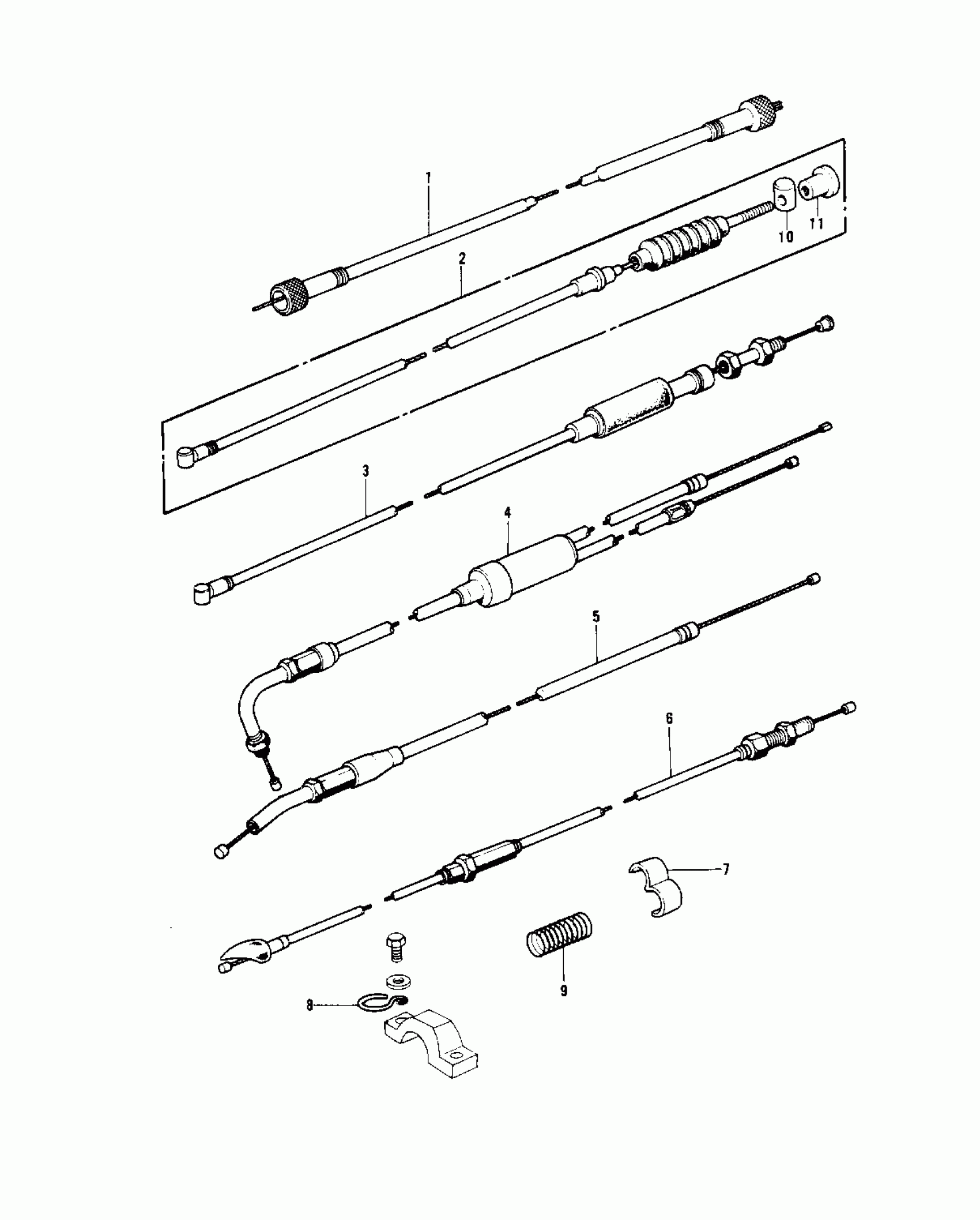

1976 Kawasaki KV100-A7 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE,SPEEDOMETER

54001-039

1
Out of stock

1

CABLE,SPEEDOMETER

54001-053

1
Out of stock

2

CABLE-FRONT BRAKE

54005-065

1
Out of stock

3

CABLE,CLUTCH

54011-061

1
Out of stock

3

CABLE,CLUTCH

54011-1042

1
Out of stock

3

CABLE,CLUTCH

54011-1042

1
Out of stock

4

CABLE,COMBINATION

54012-105

1

$76.95

In stock

4

CABLE,THROTTLE CONTRL

54012-116

1
Out of stock

5

CABLE,STARTER

54017-066

1
Out of stock

6

CABLE-CHANGE

54023-002

1
Out of stock

6

CABLE,CHANGE

54023-003

1
Out of stock

7

CLAMP-CABLE

92037-069

1
Out of stock

8

CLAMP-CABLE

92037-075

1
Out of stock

9

SPRING-CABLE

54025-003

1
Out of stock

9

SPRING,CABLE

54025-004

1
Out of stock

10

PIN,BRAKE CABLE

92043-082

1

$4.92

In stock

11

NUT,CABLE ADJUSTER LOCK

92015-052

1
Out of stock
← Cables Front Fork →
