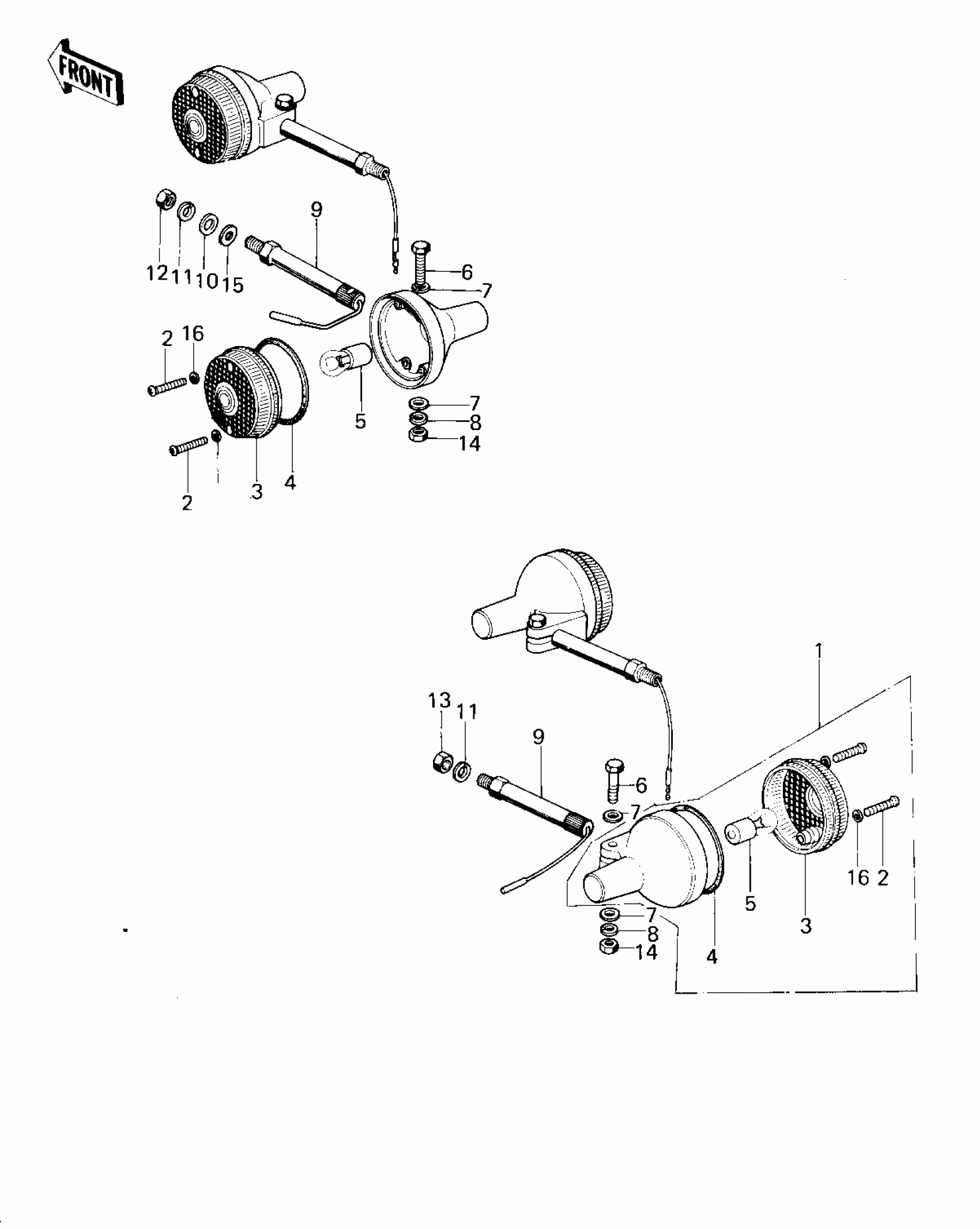

Kawasaki KM100 TURN SIGNALS (KM100-A1~A4) Diagram

#

Description
Price

1

LAMP ASSY,TURN SIGNAL

23040-038

Unavailable

2

SCREW-PAN HEAD,4X20

220E0420A

$2.25

3

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.05

3

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.05

4

GASKET,SIGNAL LAMP

23050-003

$4.39

5

BULB,6V 21CP

92069-056

$4.86

6

BOLT-UPSET

112G0630

Unavailable

7

WASHER PLAIN 6MM

411B0600

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

BRACKET,TURN SIGNAL

23051-047

$100.63

10

WASHER PLAIN 12MM

411B1200

Unavailable

11

WASHER-SPRING,12MM

461F1200

Unavailable

12

NUT-HEX-FINE

315B1200

Unavailable

13

NUT-HEX-FINE

315B1200

Unavailable

14

NUT 6MM

311B0600

Unavailable

15

WASHER,PLAIN,12M/M

411D1200

Unavailable

16

WASHER,PLAIN,4MM

23058-002

$1.77
