1981 Kawasaki KM100 Taillight Diagram

← All diagrams

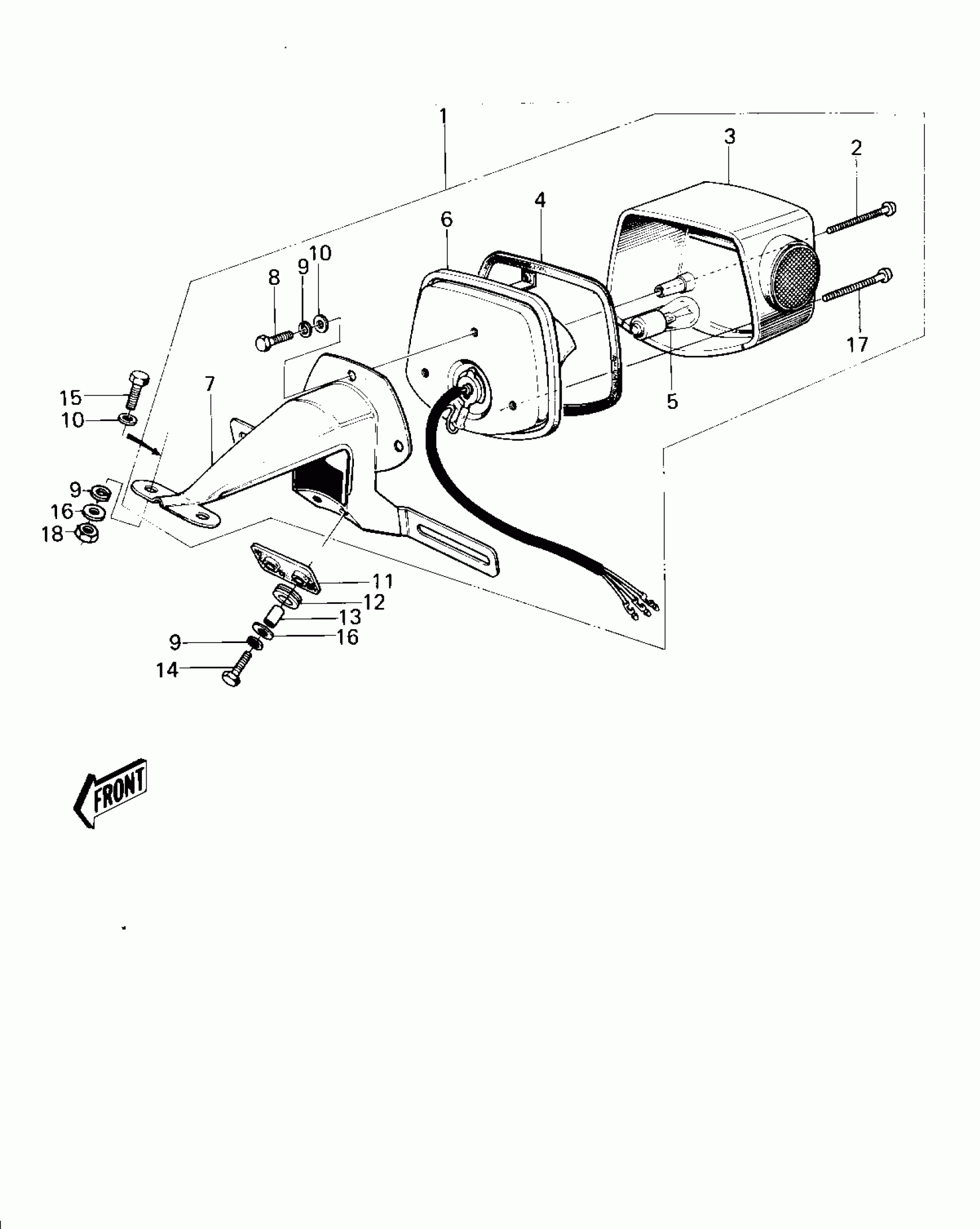

Find the part on the Taillight diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,TAIL,BLACK

23024-060-10

1
Out of stock

2

SCREW

220R0455

1
Out of stock

3

LENS,TAIL LAMP

23026-028

1
Out of stock

4

GASKET,TAIL LAMP LENS

23028-019

1
Out of stock

5

BULB,6V 32/3CP

92069-074

1
Out of stock

6

CASE,TAIL LAMP

23027-037

1
Out of stock

7

BKT,LICENSE PLT,BLACK

23036-034-10

1
Out of stock

8

BOLT-UPSET 6X14

112B0614

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

WASHER PLAIN 6MM

411B0600

1
Out of stock

11

DAMPER RUBBER,TL LAMP

35039-008

1
Out of stock

12

DAMPER,FENDER

92075-121

1
Out of stock

13

COLLAR,6.8X10X12

92027-162

1
Out of stock

14

BOLT-UPSET

112G0625

1
Out of stock

15

BOLT-UPSET

112G0630

1
Out of stock

16

WASHER,6.5X20X1.6

92022-125

1
Out of stock

17

SCREW PAN HEAD 4X50

220E0450

1
Out of stock

18

NUT 6MM

311B0600

1
Out of stock
