1981 Kawasaki KM100 Headlight Diagram

← All diagrams

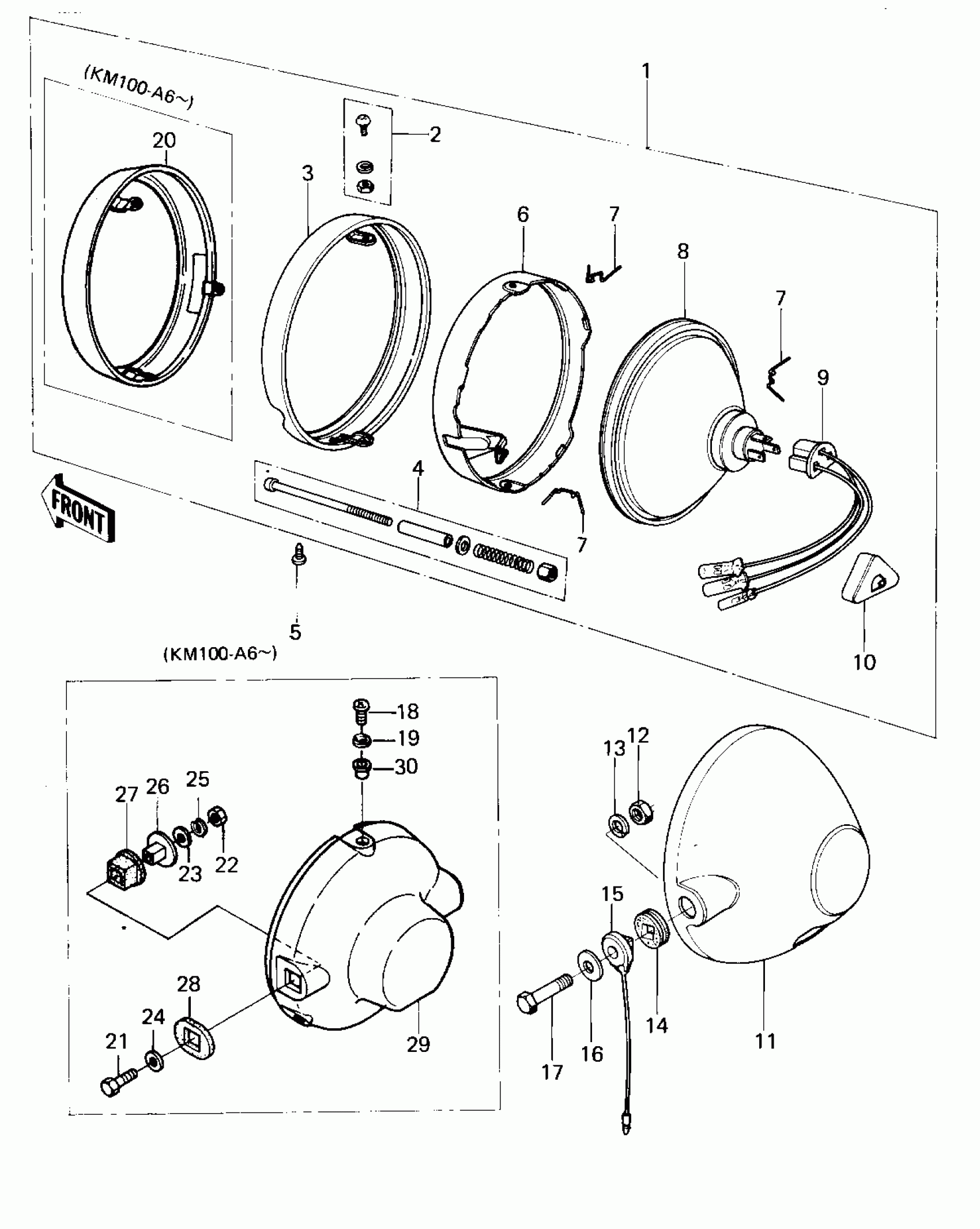

Find the part on the Headlight diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT,HEAD

23003-024

1
Out of stock

1

LAMP-HEAD

23004-1030

1

$235.91

In stock

2

1

$5.46

In stock

3

RIM,HEAD LAMP

23006-042

1

$62.24

In stock

4

SCREW ASSY,FOCUS AJST

23013-5001

1
Out of stock

5

1

$0.51

In stock

6

1

$39.81

In stock

7

1

$4.78

In stock

8

LENS-COMP,"4020" MARK

23007-055

1
Out of stock

9

1

$20.90

In stock

9

1

$20.90

In stock

10

1

$7.92

In stock

11

BODY,HEAD LAMP,BLACK

23005-049-21

1

$80.51

In stock

12

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

13

WASHER SPRING 10MM

461F1000

1
Out of stock

14

DAMPER RUBBER

23066-010

1
Out of stock

15

COLLAR

23076-002

1

$16.17

In stock

16

1

$4.25

In stock

17

BOLT,HEX HEAD,10X30

92007-041

1
Out of stock

18

SCREW-PAN-CROS

220B0512

1

$0.51

In stock

19

WASHER SPRING 6MM

461F0600

1
Out of stock

20

RIM-LAMP

23006-1004

1

$74.16

In stock

21

BOLT-SMALL,8X32

114N0832

1
Out of stock

22

NUT,8MM

311B0800

1
Out of stock

23

WASHER PLAIN 8MM

411B0800

1
Out of stock

24

WASHER-PLAIN,8MM

411D0800

1

$2.49

In stock

25

WASHER SPRING 8MM

461F0800

1
Out of stock

26

COLLAR,L=15.6

92027-1105

1

$7.49

In stock

27

DAMPER,HEAD LAMP

92075-1077

1

$7.14

In stock

28

DAMPER,HEAD LAMP

92075-1078

1

$4.92

In stock

29

BODY-COMP-HEAD LAMP,BLACK

23005-1007-6Z

1
Out of stock

30

WASHER

23021-010

1

$3.43

In stock
