1981 Kawasaki KM100 Taillight Diagram

← All diagrams

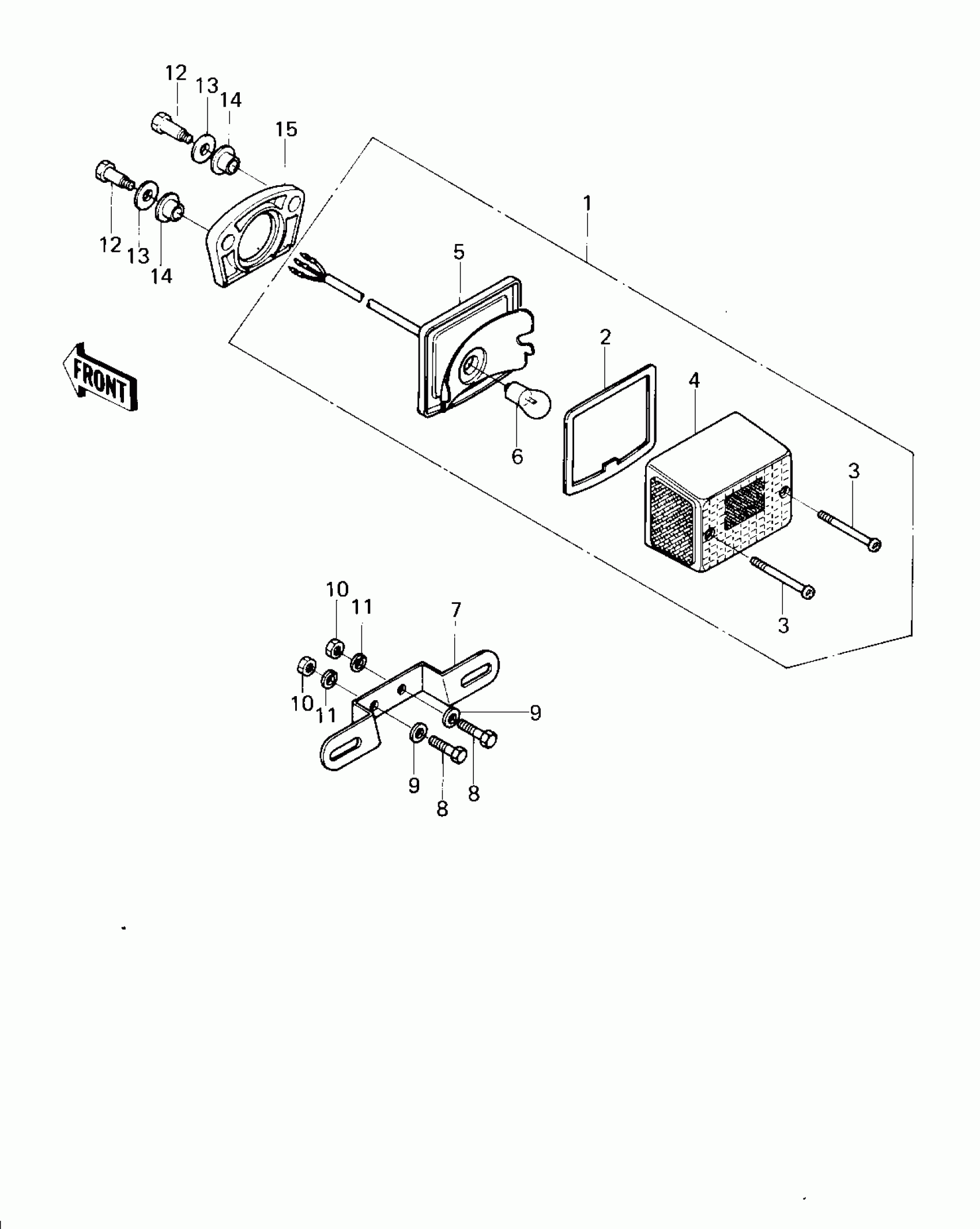

Find the part on the Taillight diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP-TAIL

23025-1034

1
Out of stock

1

LAMP-TAIL

23025-1034

1
Out of stock

2

GASKET,TAIL LAMP LENS

11009-1078

1
Out of stock

3

SCREW,PAN HEAD,4X40

220E0440A

1
Out of stock

4

LENS,TAIL LAMP

23026-1003

1
Out of stock

5

BODY-COMP-TAIL LAMP

23027-1021

1
Out of stock

5

BODY-COMP-TAIL LAMP

23027-1021

1
Out of stock

6

BULB,6V 32/3CP

92069-074

1
Out of stock

7

BRACKET,LICENSE

11034-1626

1
Out of stock

8

BOLT-UPSET,6X12

112G0612

1
Out of stock

9

WASHER PLAIN 6MM

411B0600

1
Out of stock

10

NUT 6MM

311B0600

1
Out of stock

11

WASHER SPRING 6MM

461F0600

1
Out of stock

12

BOLT,HEX HEAD

92001-1118

1
Out of stock

13

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

14

DAMPER

92075-1095

1
Out of stock

15

DAMPER,TAIL LAMP

92075-1094

1
Out of stock
