1981 Kawasaki KM100 Ignition/generator Diagram

← All diagrams

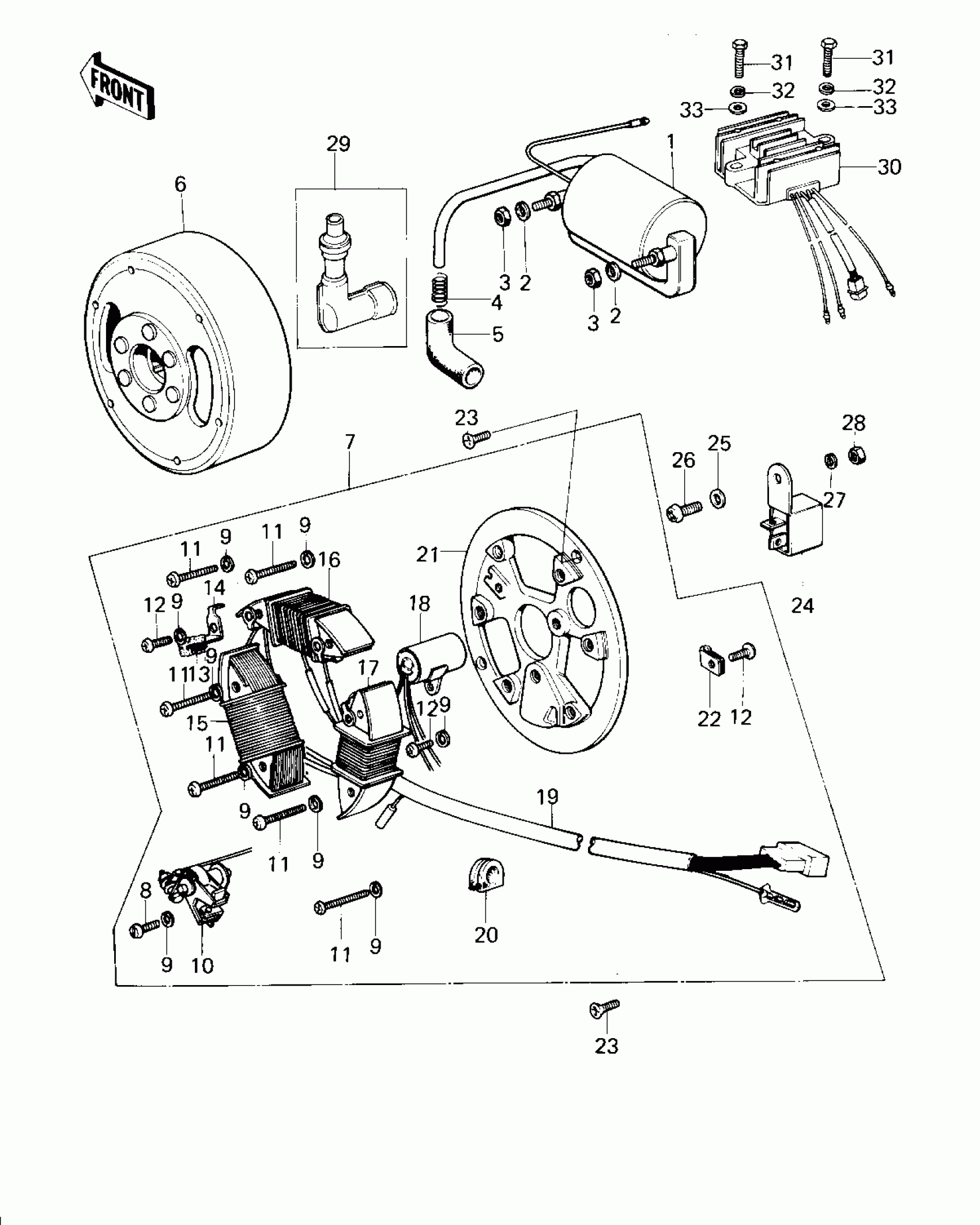

Find the part on the Ignition/generator diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KM100 Ignition/generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL,IGNITION

21121-1047

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

NUT 6MM

311B0600

1
Out of stock

3

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

4

1

$1.44

In stock

5

CAP-SPARK PLUG

21130-009

1

$20.48

In stock

6

FLYWHEEL

21050-016

1

$657.31

In stock

6

FLYWHEEL,MAGNETO

21050-1008

1

$447.84

In stock

7

STATOR ASSY

21003-025

1
Out of stock

7

STATOR

21003-1014

1
Out of stock

8

1

$0.26

In stock

9

WASHER SPRING 4MM

461F0400

1
Out of stock

10

BREAKER,CONTACT

21008-006

1

$50.32

In stock

11

SCREW-PAN-CROS

220E0430

1
Out of stock

12

1

$1.46

In stock

13

BRUSH,OIL

21019-005

1
Out of stock

14

HOLDER,OIL FELT

21038-002

1
Out of stock

15

COIL,LIGHTING

21047-1007

1

$86.02

In stock

15

COIL-CHARGING,B

59031-1002

1
Out of stock

16

COIL A LIGHTING

21047-019

1

$179.22

In stock

16

COIL-CHARGING,A

59031-1001

1

$96.22

In stock

17

COIL-EXCITING

21049-1004

1
Out of stock

17

COIL-EXCITING

21049-1004

1
Out of stock

18

CONDENSER

21013-006

1
Out of stock

19

WIRING HARNESS,MAGNT

21029-028

1
Out of stock

19

HARNESS,MAGNETO

26001-1077

1

$67.94

In stock

20

GROMMET

21017-002

1

$4.23

In stock

21

PLATE-COIL,MAGNETO

21048-1002

1

$70.10

In stock

22

CLAMP,WIRING HARNESS

21037-002

1
Out of stock

23

SCREW-CSK-CROS,6X14

221B0614

1
Out of stock

24

RECTIFIER

21061-015

1
Out of stock

25

WASHER-PLAIN,5MM

411B0500

1
Out of stock

26

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

27

WASHER SPRING 5MM

461F0500

1
Out of stock

28

NUT-HEX

311B0500

1

$0.51

In stock

29

CAP-ASSY-PLUG

21160-005

1

$52.69

In stock

30

REGULATOR-VOLTAGE

21066-1012

1
Out of stock

30

REGULATOR-VOLTAGE

21066-1012

1
Out of stock

31

BOLT-UPSET

112G0625

1
Out of stock

32

WASHER SPRING 6MM

461F0600

1
Out of stock

33

WASHER PLAIN 6MM

411B0600

1
Out of stock
