1981 Kawasaki KM100 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

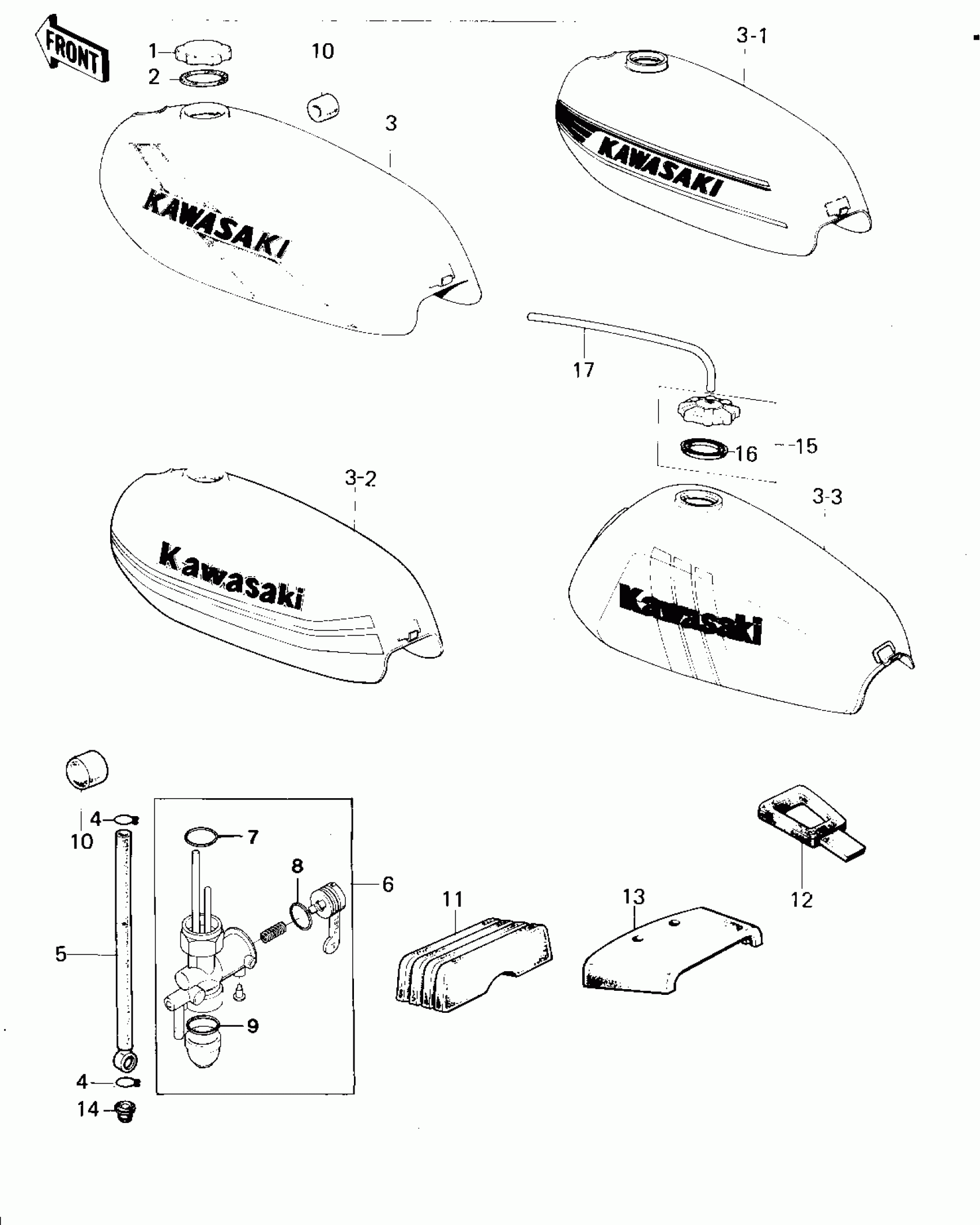

1981 Kawasaki KM100 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP,FUEL TANK

51048-1013

1
Out of stock

2

1

$10.02

In stock

3

TANK-FUEL,C.GREEN

51001-088-3Z

1
Out of stock

3

TANK-FUEL,POPPY RED

51001-088-4P

1
Out of stock

3-1

TANK-FUEL,

51001-088-4M

1
Out of stock

3-2

TANK-FUEL,S.YELLOW

51001-088-7H

1

$326.38

In stock

3-3

TANK-FUEL,S.YELLOW

51001-1031-7H

1

$396.36

In stock

3-3

TANK-FUEL,F.RED

51001-1031-B1

1

$386.24

In stock

3-3

TANK-FUEL,F.RED

51001-5090-B1

1
Out of stock

3-3

TANK-COMP-FUEL,S.B.YL (Canada)

51001-1031-E5

1
Out of stock

4

CLAMP,TUBE

92037-010

1

$3.12

In stock

5

PIPE-OIL

92059-072

1

$34.99

In stock

6

TAP-ASSY,FUEL

51023-1123

1

$73.52

In stock

7

1

$5.56

In stock

8

'O' RING FUEL COCK

92065-062

1
Out of stock

9

GASKET FUEL COCK CUP

51037-008

1
Out of stock

10

DAMPER,FUEL TANK

92075-044

1

$4.06

In stock

11

DAMPER RUBBER,FL TANK

92075-195

1
Out of stock

12

BAND-FUEL TANK

92072-036

1
Out of stock

13

DAMPER RUBBER,FL TANK

92075-230

1
Out of stock

14

GROMMET,PIPE

92071-038

1
Out of stock

15

CAP-ASSY-TANK,FUEL

51048-1004

1
Out of stock

16

GASKET,FUEL TANK CAP

51059-006

1
Out of stock

17

TUBE-RUBBER 5X400

702A05400

1
Out of stock
