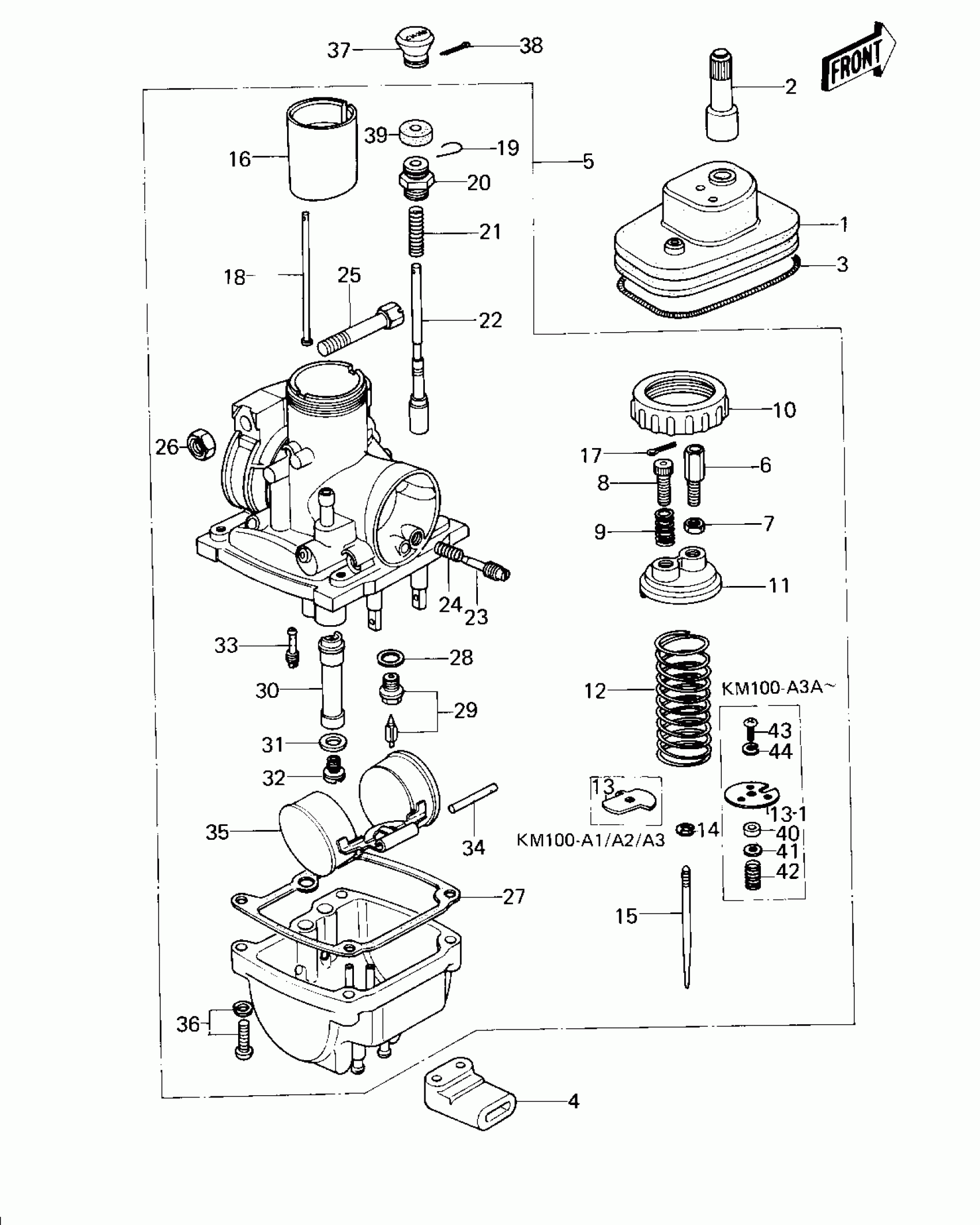

Kawasaki KM100 CARBURETOR (KM100-A1~A4) Diagram

#

Description
Price

1

BOOT,CARBURETOR

14038-035

Unavailable

2

PLUG,12X40

16147-001

$4.09

3

SPRING COIL

92081-047

$8.59

4

GROMMET,OVERFLOW PIPE

16136-007

Unavailable

5

CARBURETOR ASSY

16001-264

Unavailable

5

CARBURETOR ASSY

16001-1043

Unavailable

6

ADJUSTER-CABLE

16002-017

$12.73

7

NUT,CABLE ADJUST LOCK

16003-004

$7.53

8

SCREW-THROTTLE STOP

16021-002

$17.49

9

SPRING,THROTTLE STOP SCREW

16022-005

$8.66

10

CAP-CHAMBER,MIXING

16004-010

$19.83

11

TOP-CHAMBER,MIXING

16005-005

$19.51

12

SPRING,THROTTLE VALVE

16006-013

$14.22

13

SEAT-SPRING,THROTTLE VALVE

16007-020

$10.54

13 1

SPRING SEAT,THROT VLV

13169-1105

Unavailable

14

CLAMP,E-TYPE

16008-010

$7.02

15

NEEDLE-JET,4EJ7

16009-059

$38.22

15

JET NEEDLE,4EJ12

16009-1012

Unavailable

16

VALVE-THROTTLE,CA2.0

16025-057

Unavailable

16

VALVE-THROTTLE,CA2.0

16025-1013

$123.31

17

PIN COTTER 1.2X10

550D1210

$1.66

18

ROD,THROTTLE VLV STP

16024-012

Unavailable

19

CLAMP

92037-1077

Unavailable

19

CLAMP

92037-1077

Unavailable

20

CAP-STARTER PLUNGER

16012-021

$15.07

21

SPRING,STARTER PLUNGER

16013-010

Unavailable

22

PLUNGER,STARTER

16016-012

$41.12

23

SCREW-PILOT AIR

16014-002

Unavailable

24

SPRING,PILOT AIR SCREW

16022-007

$7.97

25

SCREW,CLAMP

16010-004

$4.90

26

NUT 6MM

311B0600

Unavailable

26

NUT,6MM

92015-1026

$5.76

27

GASKET,FLOAT CHAMBER

16019-021

$17.96

28

GASKET,FLOAT VALVE SEAT

16029-002

$3.98

29

VALVE-FLOAT,#2.0

16030-001

$49.50

30

NEEDLE JET O-Z

16017-068

$56.30

30

NEEDLE JET,O-O

16017-1016

$20.36

31

WASHER,MAIN JET

16034-001

$3.43

32

JET-MAIN,#A77.5R

92063-1032

$15.86

32

MAIN JET NO 72.5R

92063-108

Unavailable

32

JET-MAIN,#75R

92063-109

Unavailable

32

JET-MAIN,#A80R

92063-1030

Unavailable

32

JET-MAIN,#82.5R

92063-124

Unavailable

32

JET-MAIN,#A80R

92063-1030

$15.86

32

JET-MAIN,#75R

92063-109

Unavailable

32

JET-MAIN,#A77.5R

92063-1032

Unavailable

32

JET-MAIN,#82.5R

92063-124

Unavailable

32

JET-MAIN,#85R

92063-093

Unavailable

33

JET-PILOT,#17.5

92064-020

Unavailable

33

JET-PILOT,#A15

92064-1018

$19.25

34

PIN,FLOAT

16032-003

$5.95

35

FLOAT

16031-015

$59.81

36

SCREW-FLOAT CHAMBER

16033-012

$1.68

37

KNOB,CARBURETOR

92077-022

$10.25

38

PIN-COTTER,1.6X15

550D1615

$1.80

39

BOOT,STARTER PLUNGER

16036-012

$11.00

40

COLLAR,THROTTLE VALVE

92027-1103

$7.53

41

WASHER,THROTTLE VALVE

92022-1024

$5.25

42

SPRING,JET NEEDLE

92081-1072

Unavailable

43

SCREW-PAN-CROS,3X8

220B0308

$0.54

44

WASHER SPRING 3MM

461F0300

Unavailable
