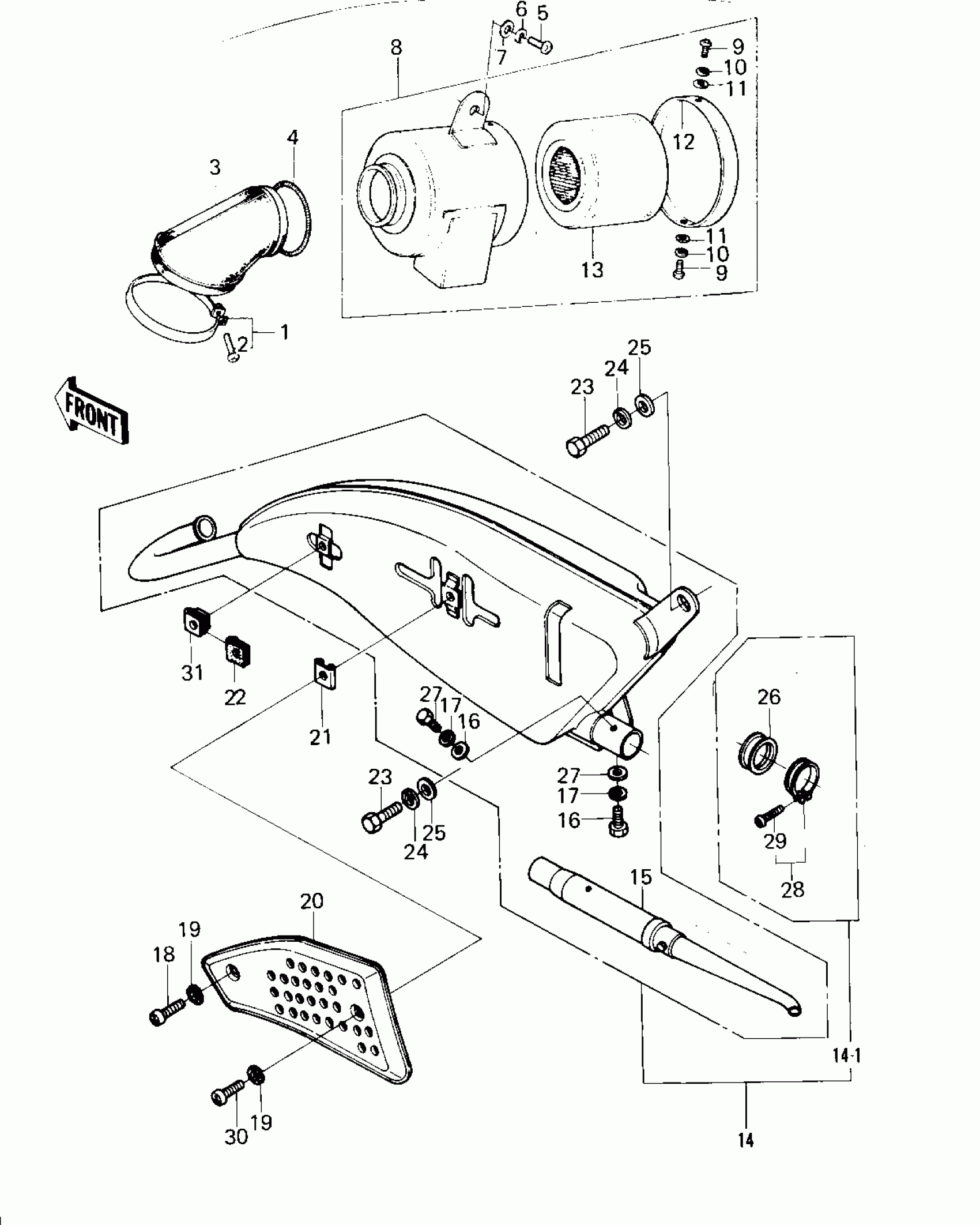

Kawasaki KM100 AIR CLEANER/MUFFLER (KM100-A6/A7) Diagram

#

Description
Price

1

CLAMP

92037-068

$11.86

2

SCREW PAN HEAD 6X35

220B0635

$1.24

3

DUCT,AIR CLEANER

14073-1007

$13.76

4

SPRING COIL

92081-047

$8.59

5

SCREW PAN HEAD 6X12

220B0612

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

8

AIR CLEANER ASSY

11010-1016-10

Unavailable

9

SCREW PAN HEAD 5X10

220B0510

Unavailable

10

WASHER SPRING 5MM

461F0500

Unavailable

11

WASHER PLAIN 5MM

410B0500

Unavailable

12

CAP,AIR CLEANER

11012-1028

Unavailable

13

ELEMENT,AIR CLNR

11013-1009

Unavailable

14

MUFFLER ASSY

18001-5033

$185.67

14-1

MUFFLER ASSY

18001-5033

$185.67

15

BAFFLE TUBE

49099-1027

Unavailable

16

BOLT,6X10

112G0610

Unavailable

17

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

18

SCREW-PAN-CROS,6X14

220B0614

$1.14

19

WASHER LOCK 6MM

463H0600

Unavailable

20

COVER,MUFFLER

14025-1184

Unavailable

21

INSULATOR,HEAT

18065-010

Unavailable

22

INSULATOR-HEAT

18065-009

Unavailable

23

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

23

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

WASHER PLAIN 8MM

411B0800

Unavailable

26

WASHER-PLAIN

92022-183

$2.99

27

CONNECTOR,BAFFLETUBE

92093-1042

Unavailable

27

CONNECTOR,BAFFLETUBE

92093-1042

Unavailable

28

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

29

SCREW-PAN-CROS,5X25

220B0525

$3.24

30

SCREW PAN HEAD 6X10

220B0610

Unavailable

31

NUT,6MM

92015-1094

$6.55
