1981 Kawasaki KM100 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

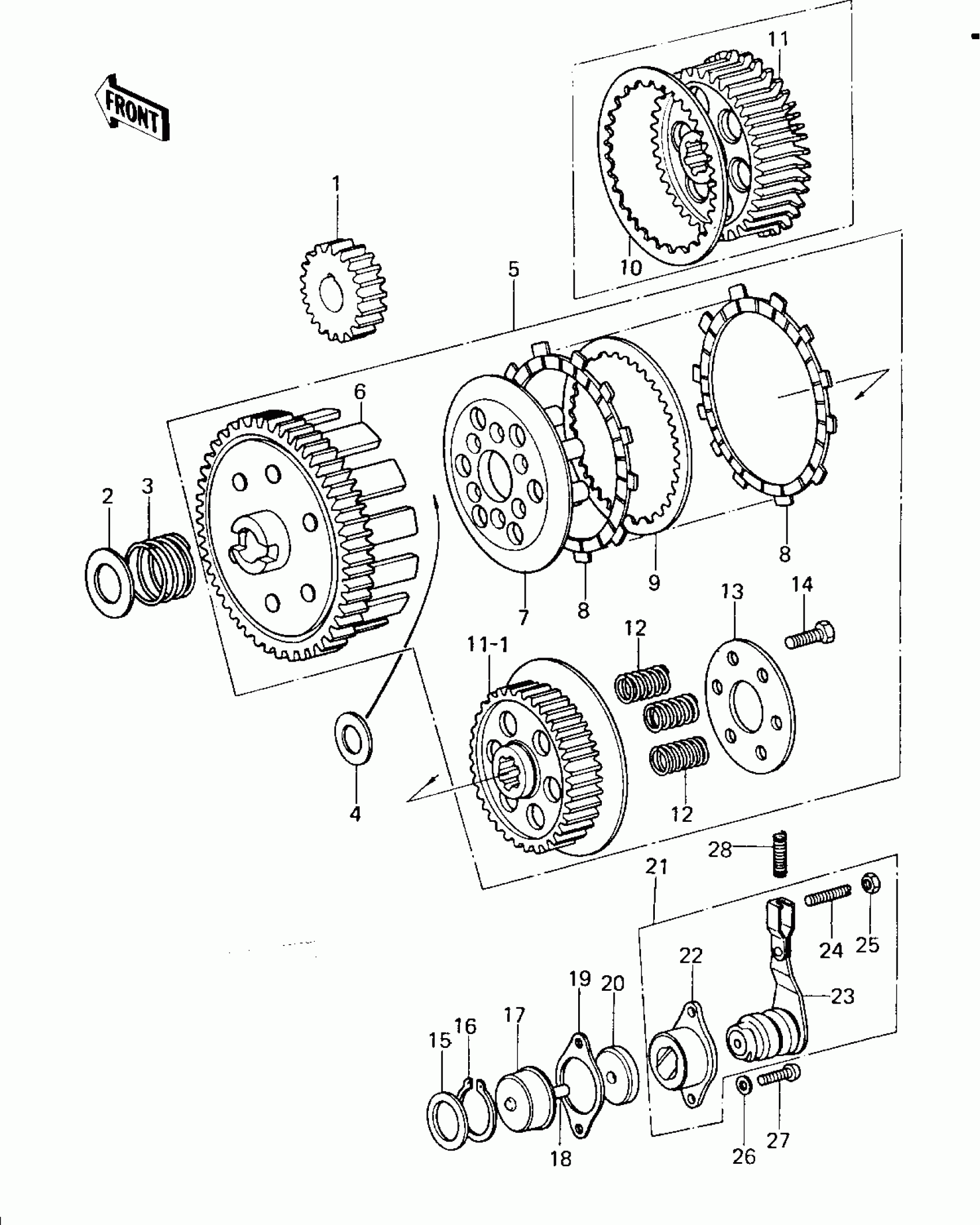

1981 Kawasaki KM100 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PINION,PRIMARY

13121-032

1

$95.91

In stock

2

WASHER,25.5X36X1

92022-057

1

$3.92

In stock

3

SPRING,CLUTCH DAMPER

92081-015

1
Out of stock

4

WASHER,16.5X27X1.4

92022-054

1

$8.03

In stock

5

CLUTCH-ASSY

13081-028

1
Out of stock

6

HOUSING-COMP-CLUTCH

13095-022

1
Out of stock

7

WHEEL-CLUTCH

13086-1002

1

$45.84

In stock

7

WHEEL-CLUTCH

13086-1002

1

$45.84

In stock

8

PLATE-FRICTION

13088-1103

1
Out of stock

9

PLATE-CLUTCH,STEEL

13089-1009

1

$11.12

In stock

10

PLATE CLUTCH OUTER

13090-004

1
Out of stock

11

HUB-CLUTCH

13087-1011

1

$92.86

In stock

11-1

HUB-CLUTCH

13087-1011

1

$92.86

In stock

12

SPRING,CLUTCH

92081-012

1

$5.44

In stock

13

1

$17.20

In stock

14

BOLT-UPSET

112G0516

1
Out of stock

15

WASHER,THRUST,16.5X21X0.8

92022-053

1
Out of stock

16

1

$3.43

In stock

13113-

Not Available As Spare Part - Friction Washer

1
Out of stock

18

PIN,DOWEL,7X20

92042-043

1

$4.34

In stock

19

GASKET,CLUTCH RELEASE

11060-1197

1
Out of stock

20

SEAL-OIL

92050-071

1
Out of stock

21

RELEASE-ASSY-CLUTCH

13231-1008

1

$77.01

In stock

22

RELEASE-ASSY-CLUTCH

13231-1008

1

$77.01

In stock

23

RELEASE-ASSY-CLUTCH

13231-1008

1

$77.01

In stock

24

SCREW-SET,6X16

291H0616

1

$7.42

In stock

25

NUT 6MM

312B0600

1
Out of stock

26

1

$1.19

In stock

27

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

28

1

$4.51

In stock
