1981 Kawasaki KM100 Seat/chain Cover Diagram

← All diagrams

Find the part on the Seat/chain Cover diagram for your 1981 Kawasaki KM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

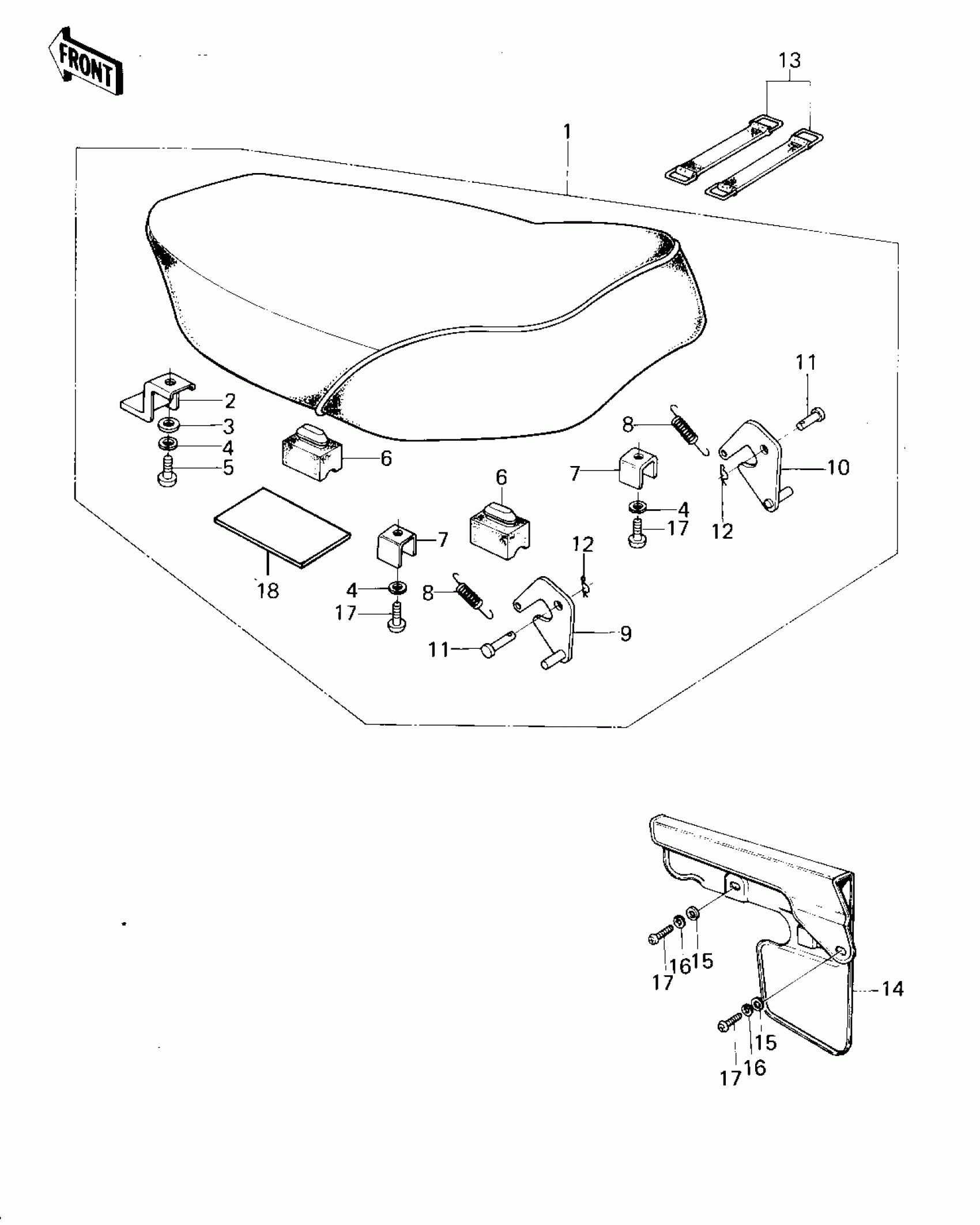

1981 Kawasaki KM100 Seat/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT-ASSY

53001-1018

1
Out of stock

1

SEAT-ASSY

53001-1018

1
Out of stock

1

SEAT-ASSY

53001-1460

1
Out of stock

2

BRACKET,SEAT

53032-004

1
Out of stock

3

WASHER,6.5X20X1.6

92022-125

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

6

DAMPER

92075-099

1
Out of stock

7

SPRING,SEAT HOOK

53012-012

1
Out of stock

8

SPRING,HOOK

53012-013

1
Out of stock

9

HOOK,L.H SEAT

53008-031

1
Out of stock

10

HOOK,R.H SEAT

53008-032

1
Out of stock

11

PIN DUAL SEAT PIVOT

53011-001

1
Out of stock

12

COTTER PIN

92041-003

1
Out of stock

13

BAND,L=50

92072-066

1
Out of stock

14

CASE-CHAIN

36014-1024

1
Out of stock

14

CASE-CHAIN

36014-1024

1
Out of stock

15

WASHER PLAIN 6MM

411B0600

1
Out of stock

16

WASHER SPRING 6MM

461F0600

1
Out of stock

17

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

18

DAMPER RUBBER,BATERY

92075-224

1
Out of stock
