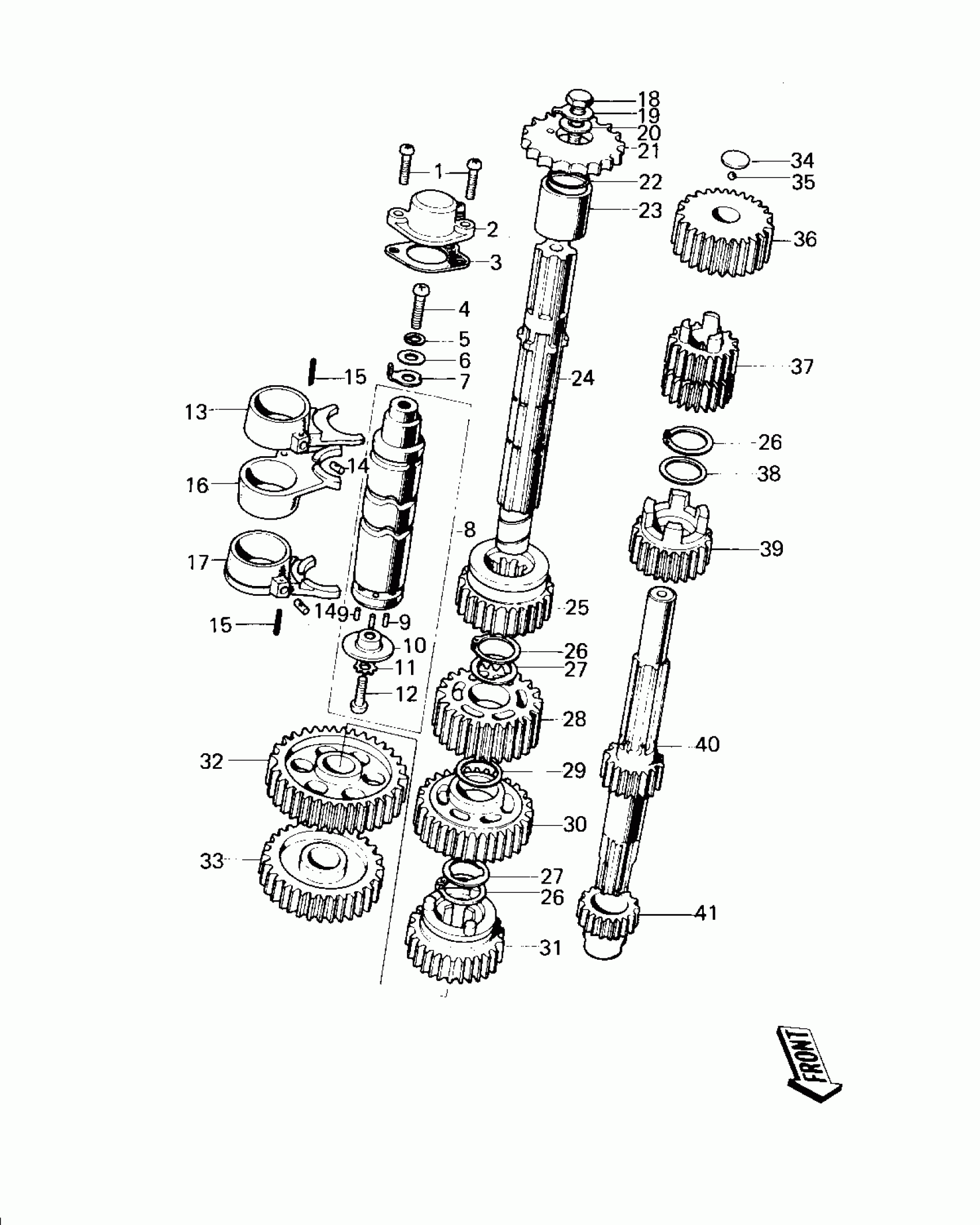

Kawasaki KM100 TRANSMISSION/CHANGE DRUM (KM100-A1~A4) Diagram

#

Description
Price

1

SCREW-PAN-CROS,6X16

220B0616

Unavailable

2

SWITCH-COMP,NEUTRAL

13151-1002

$15.86

2

SWITCH-COMP,NEUTRAL

13151-1002

$15.86

3

GASKET,NEUTRAL SWITCH

13146-002

$4.14

4

SCREW-PAN-CROS,6X16

220B0616

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

7

ROTOR,TOP & NEUTRAL

21007-1003

$7.97

7

ROTOR,TOP & NEUTRAL

21007-1003

$7.97

8

DRUM ASSY-GEAR CHANGE

13239-005

Unavailable

8

DRUM ASSY,GEAR CHANGE

13239-1002

Unavailable

9

PIN,DOWEL,4X15.8

92042-014

$0.46

9

PIN,DOWEL,4X15.8

92042-014

$0.46

10

PLATE CHANGE DRUM PIN

13142-008

Unavailable

11

WASHER LOCK 6MM

464H0600

Unavailable

12

SCREW-PAN-CROS,6X14

220B0614

$1.14

13

FORK SELECTOR 3RD

13140-009

Unavailable

14

PIN SELECT FORK GUIDE

92043-005

Unavailable

15

PIN-COTTER,3.0X20

550D3020

$1.32

16

FORK SELECTOR 4TH-TOP

13140-017

Unavailable

17

FORK SELECTOR LOW-2ND

13140-010

Unavailable

18

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

19

WASHER,CLAW,8X22X1.2

92030-012

$4.80

20

WASHER,T=2.3

92022-266

$4.80

21

SPROCKET-OUTPUT,14T

13144-1058

Unavailable

21

ENGINE SPROCKET,13T

13144-053

Unavailable

21

SPROCKET-OUTPUT,15T

13144-054

Unavailable

22

RING-O,17.5X1.5

92055-022

$4.67

23

COLLAR,ENG NPROCKET

92027-179

$4.78

23

COLLAR,ENGINE SPROCKET,L=13.7

92027-1595

$18.36

24

SHAFT-TRANSMISSION OUTPUT

13128-021

Unavailable

25

TOP GEAR OUTPUT SHAFT

13137-012

Unavailable

26

RING-SNAP,16MM

92033-014

$4.68

27

WASHER,TOOTHED,18.5X23X1.2

92024-030

$5.59

28

3RD GEAR OUTPUT SHAFT

13133-005

Unavailable

29

WASHER,THRUST,18.5X23X1.6

92022-146

$8.37

30

2ND GEAR OUTPUT SHAFT

13131-008

Unavailable

31

GEAR,OUTPUT 4TH,24T

13129-1708

$100.93

32

GEAR,OUTPUT LOW,35T

13129-010

$95.90

33

GEAR-SPUR,KICKSTARTER.IDLE,30T

13073-004

$79.07

34

WASHER,THRUST

92022-115

$3.92

35

BALL-STEEL,7/32"

600A0700

$1.44

36

GEAR,INPUT TOP,24T

13129-1927

Unavailable

37

2ND&3RD GEAR,DRIVE

13129-1052

Unavailable

37

2ND&3RD GEAR,DRIVE

13129-1052

Unavailable

38

WASHER,18.5X23X1.2

92022-118

$4.17

39

4TH GEAR,DRIVE

13129-1053

Unavailable

39

4TH GEAR,DRIVE

13129-1053

Unavailable

40

SHAFT,DRIVE

13127-032

Unavailable

41

GEAR-SPUR,KICKSTARTER PINION

13075-004

$53.39
