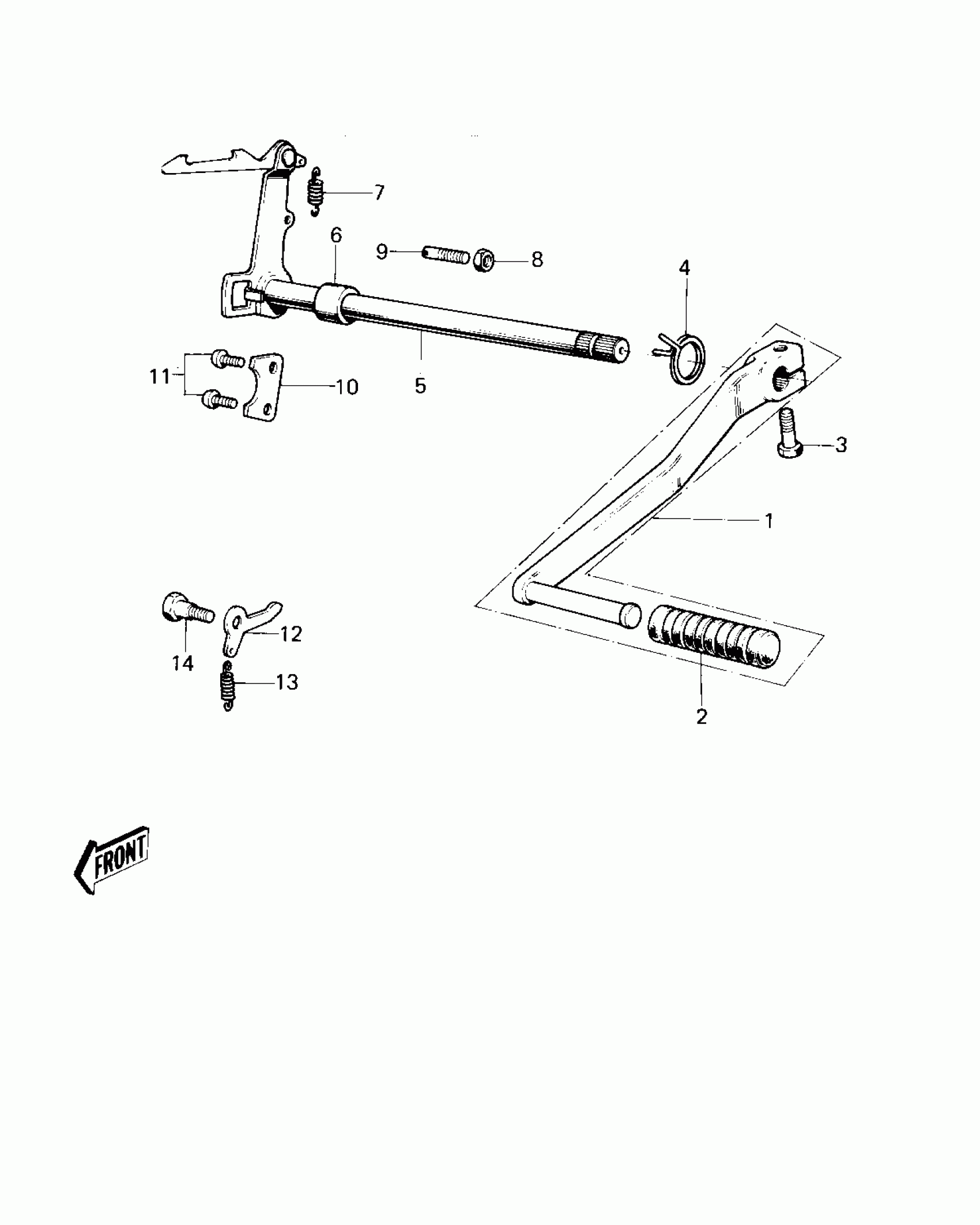

Kawasaki KM100 GEAR CHANGE MECHANISM (KM100-A1~A4) Diagram

#

Description
Price

1

LEVER-ASSY-CHANGE

13242-004

$40.81

2

DAMPER,CHANGE PEDAL

13157-004

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

SPRING,TENSION

92081-1129

$7.18

4

SPRING,TENSION

92081-1129

$7.18

5

LEVER ASSY,GEAR CHNG

13161-1014

Unavailable

6

COLLAR,12X18X11.5

92027-121

Unavailable

7

SPRING,CHANGE LEVER

92144-1720

$4.32

8

NUT 8MM

312B0800

Unavailable

9

BOLT,RETURN SPRING

92001-1401

$4.17

10

PLATE CHNG DRUM PSTN

13169-002

Unavailable

11

SCREW-PAN-CROS,6X14

220B0614

$1.14

12

LEVER GEAR CHNG DRUM

13168-005

Unavailable

13

SPRING,CHANGE DRUM LEVER

92083-012

$3.54

14

BOLT,CHANGE DRUM LEVER

92150-1450

$4.71
