1995 Kawasaki KLX650R Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

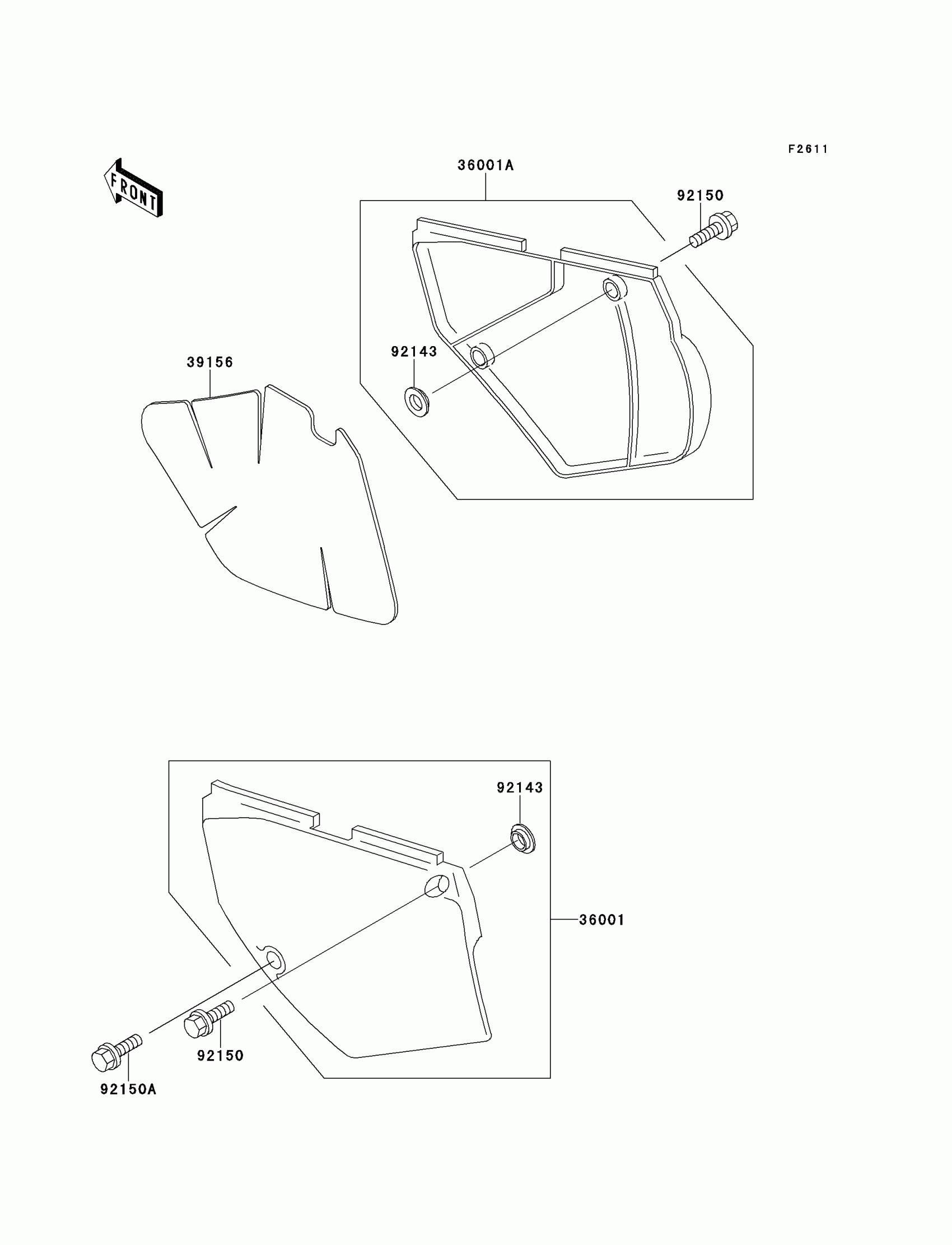

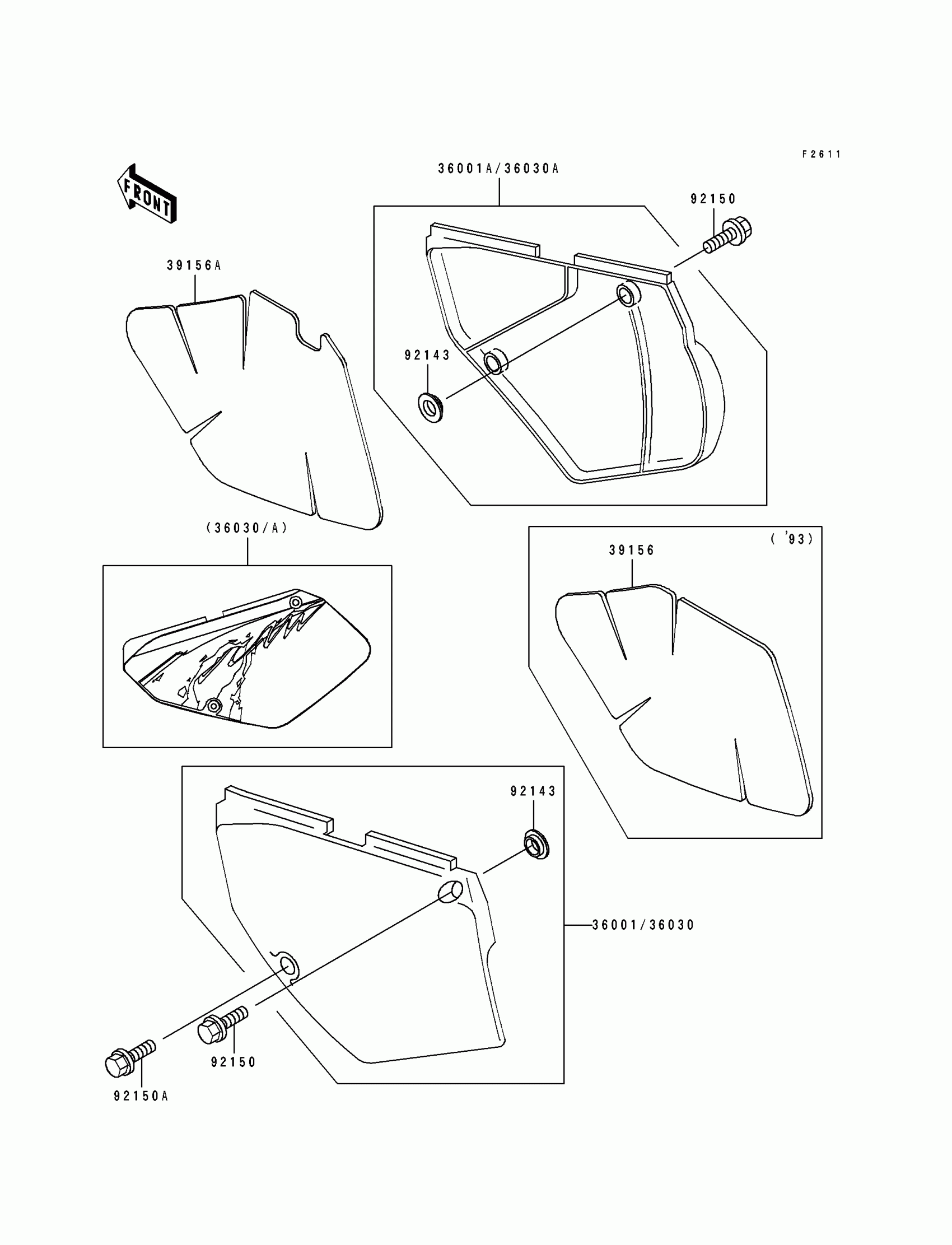

1995 Kawasaki KLX650R Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36030

COVER-SIDE,LH,P.WHITE

36030-5175-6F

1

$123.73

In stock

36030A

COVER-SIDE,RH,P.WHITE

36030-5176-6F

1

$123.73

In stock

39156A

PAD,SIDE COVER,RH

39156-1382

1
Out of stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,6X14

92150-1340

1

$4.02

In stock
