1995 Kawasaki KLX650R Frame Fittings Diagram

← All diagrams

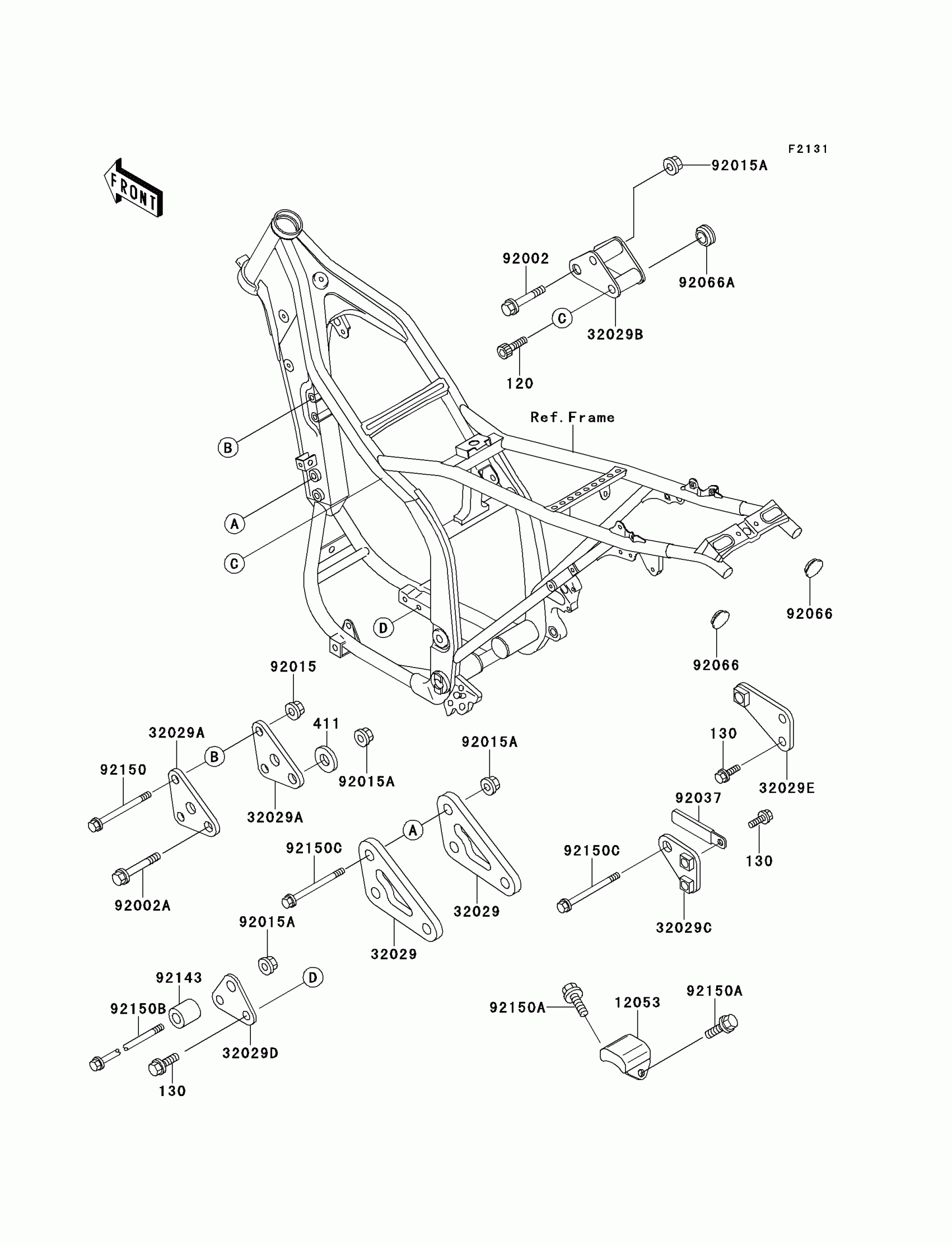

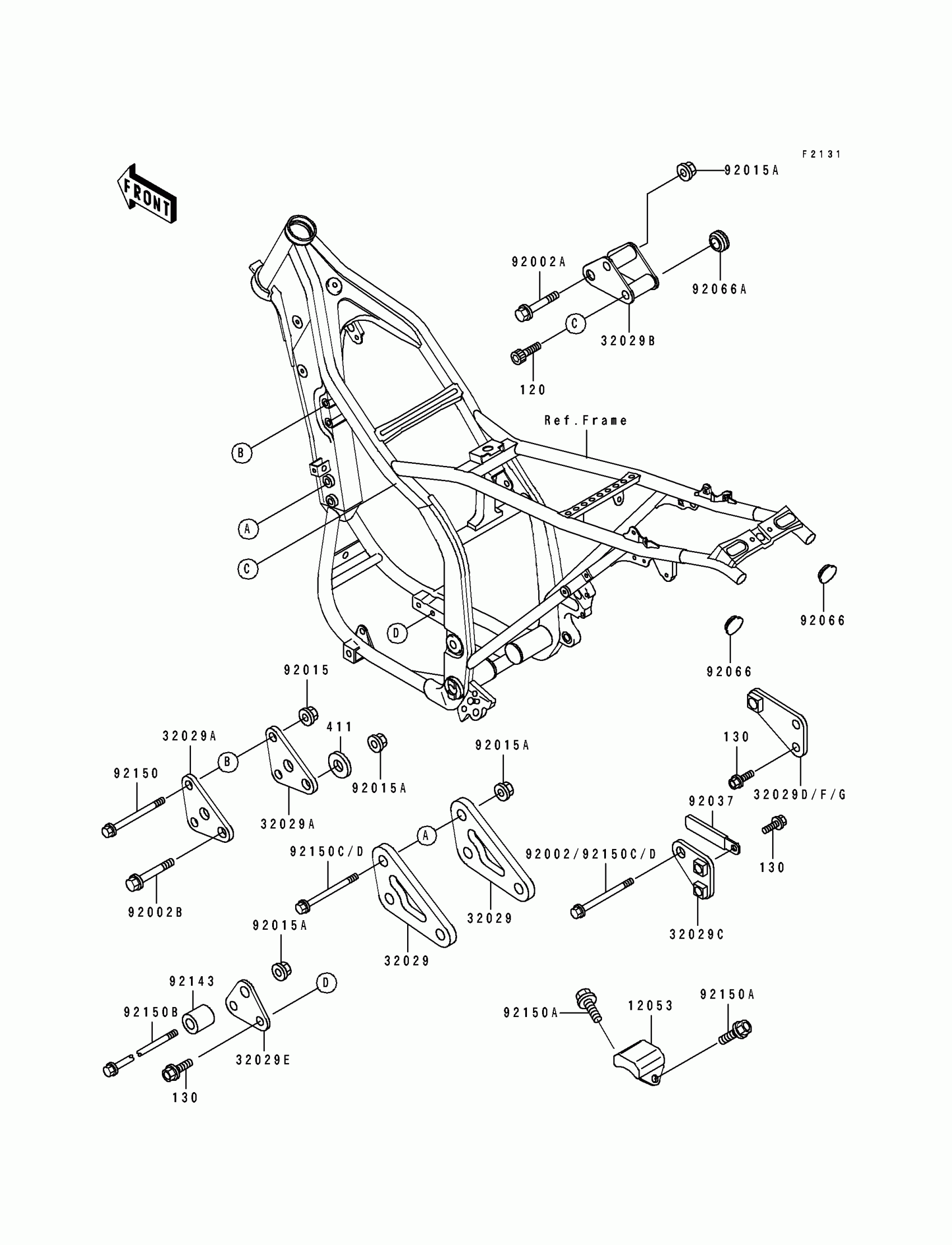

Find the part on the Frame Fittings diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki KLX650R Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-1310

1
Out of stock

32029

BRACKET-ENGINE,FR,LWR

32029-1840

1
Out of stock

32029A

BRACKET-ENGINE,FR,UPP

32029-1858

1
Out of stock

32029B

BRACKET-ENGINE,RR,UPP,VIOLET

32029-1859-TY

1
Out of stock

32029C

BRACKET-ENGINE,RR,LWR,LH,VIOLE

32029-1882-TY

1
Out of stock

32029E

BRACKET-ENGINE,LWR,VIOLET

32029-1884-TY

1
Out of stock

32029F

BRACKET-ENGINE,RR,LWR,RH,VIOLE

32029-1899-TY

1
Out of stock

92002A

BOLT,FLANGED,10X46

92002-1740

1
Out of stock

92002B

BOLT,FLANGED,10X53

92002-1936

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1502

1
Out of stock

92037

CLAMP,HARNESS,L=100

92037-1636

1
Out of stock

92066

PLUG,FRAME END,12X13

92066-1034

1
Out of stock

92066A

PLUG

92066-1115

1
Out of stock

92143

COLLAR,10.5X20X16.2

92143-1618

1
Out of stock

92150

BOLT,FLANGED,8X50

92150-1214

1
Out of stock

92150A

BOLT,6X14

92150-1340

1
Out of stock

92150B

BOLT,FLANGED,10X150

92150-1686

1
Out of stock

92150C

BOLT,FLANGED,10X95

92150-1722

1
Out of stock

120

BOLT-SOCKET,8X55

120P0855

1
Out of stock

130

BOLT-FLANGED,8X16

130G0816

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock
