1995 Kawasaki KLX650R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

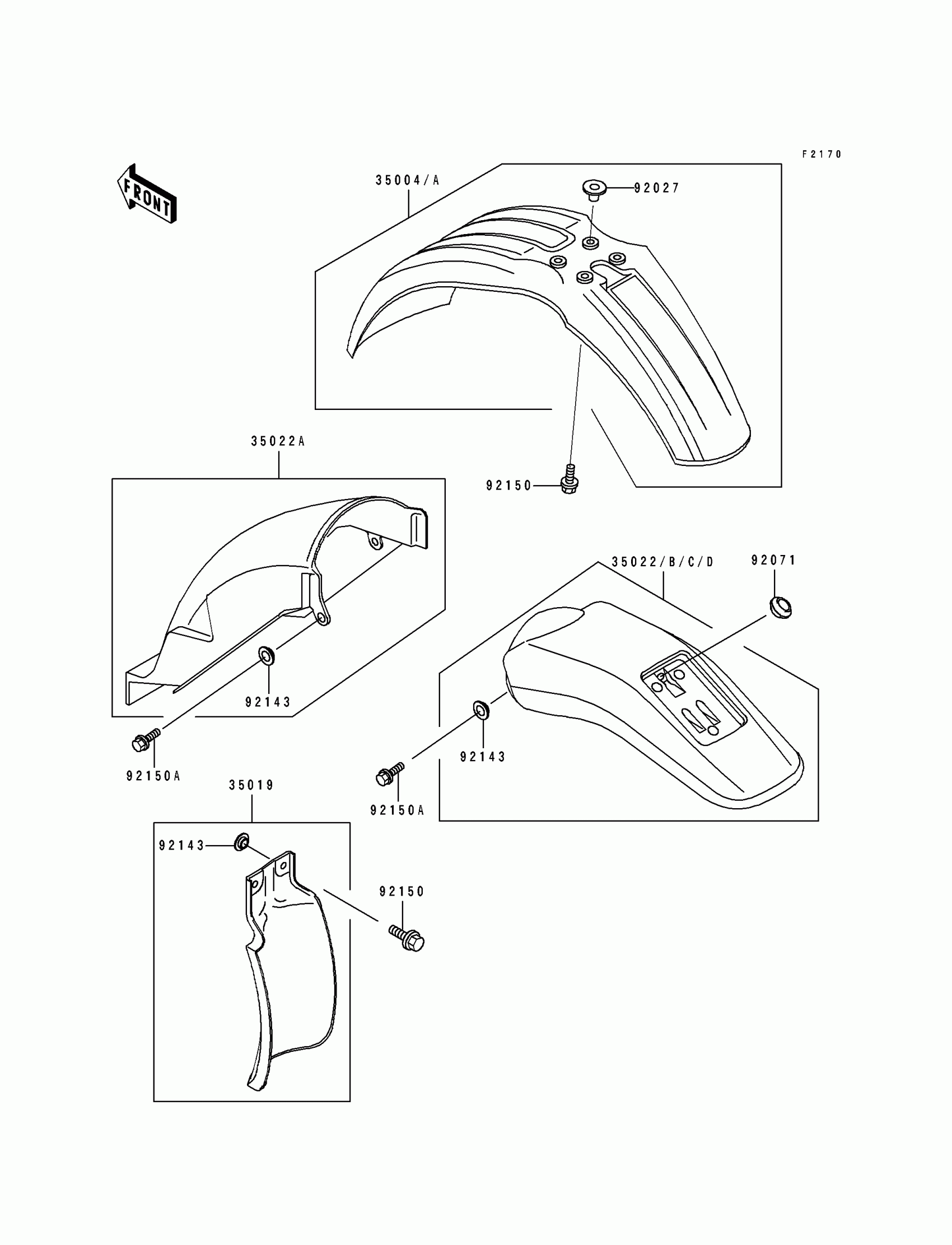

1995 Kawasaki KLX650R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,L.GREEN

35004-1319-6W

1
Out of stock

35019

FLAP,RR FENDER,FR

35019-1306

1
Out of stock

35022A

FENDER-COMP-REAR,FR,L.GREEN

35022-1280-6W

1
Out of stock

35022C

FENDER-COMP-REAR,RR,L.GREEN

35022-1299-6W

1
Out of stock

35022D

FENDER-COMP-REAR,RR,L.GREEN

35022-1300-6W

1
Out of stock

92027

COLLAR

92027-1936

1
Out of stock

92071

GROMMET

92071-024

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92150A

BOLT,6X14

92150-1340

1
Out of stock
