1995 Kawasaki KLX650R Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

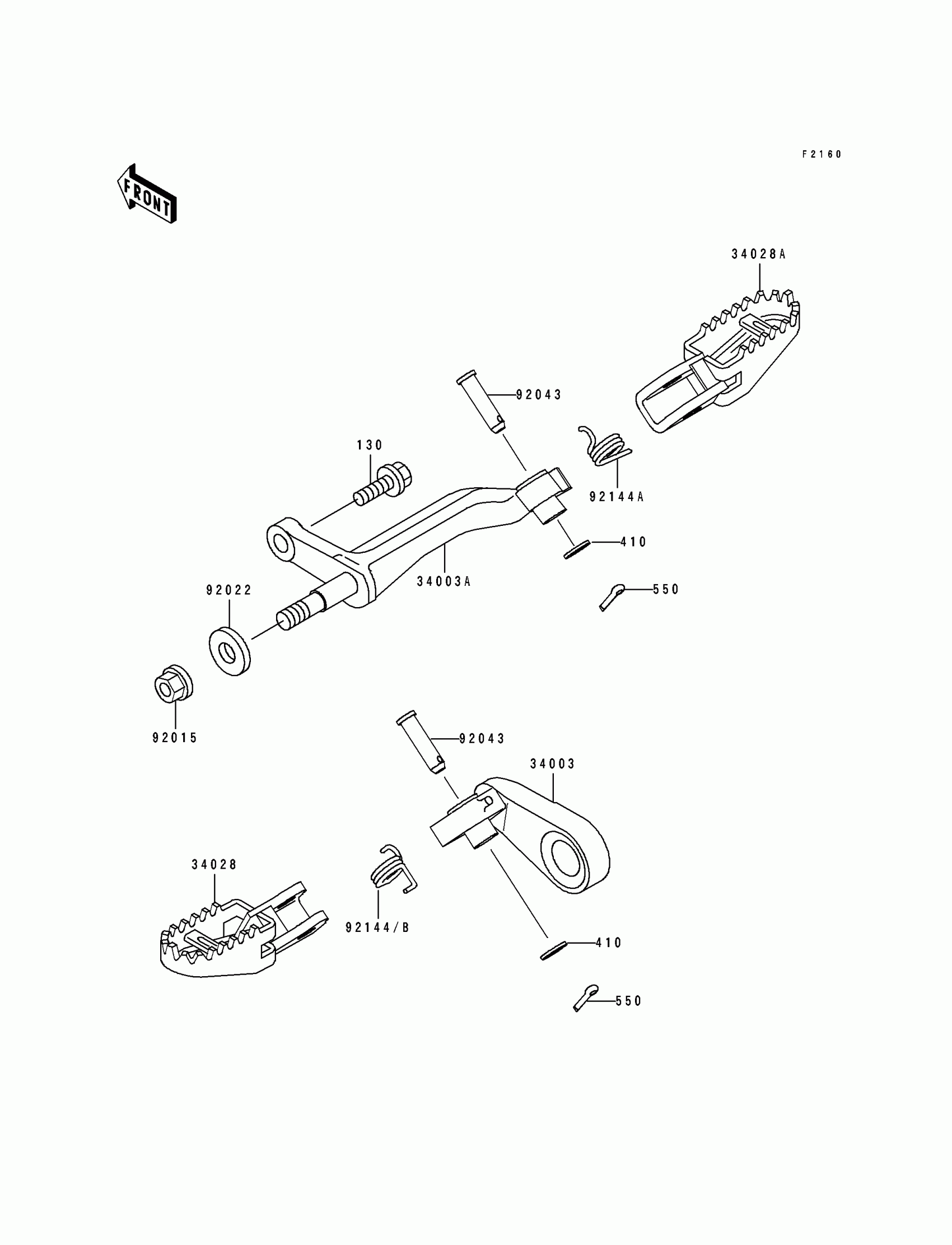

1995 Kawasaki KLX650R Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,LH,VIOLET

34003-1372-TY

1

$85.91

In stock

34003A

HOLDER-STEP,RH,VIOLET

34003-1373-TY

1

$85.91

In stock

34028

STEP,FR,LH

34028-1361

1

$43.98

In stock

34028A

STEP,FR,RH

34028-1362

1

$49.47

In stock

92015

NUT,FLANGED,10MM

92015-1502

1

$8.16

In stock

92022

WASHER,10.5X18X2.5

92022-1876

1
Out of stock

92043

PIN,8X35.5

92043-115

1

$9.22

In stock

92144A

1

$7.29

In stock

92144B

1

$1.32

In stock

130

BOLT-FLANGED,10X20

130P1020

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

550

1

$0.51

In stock
