2015 Kawasaki KLX450R (Australian) Muffler Diagram

← All diagrams

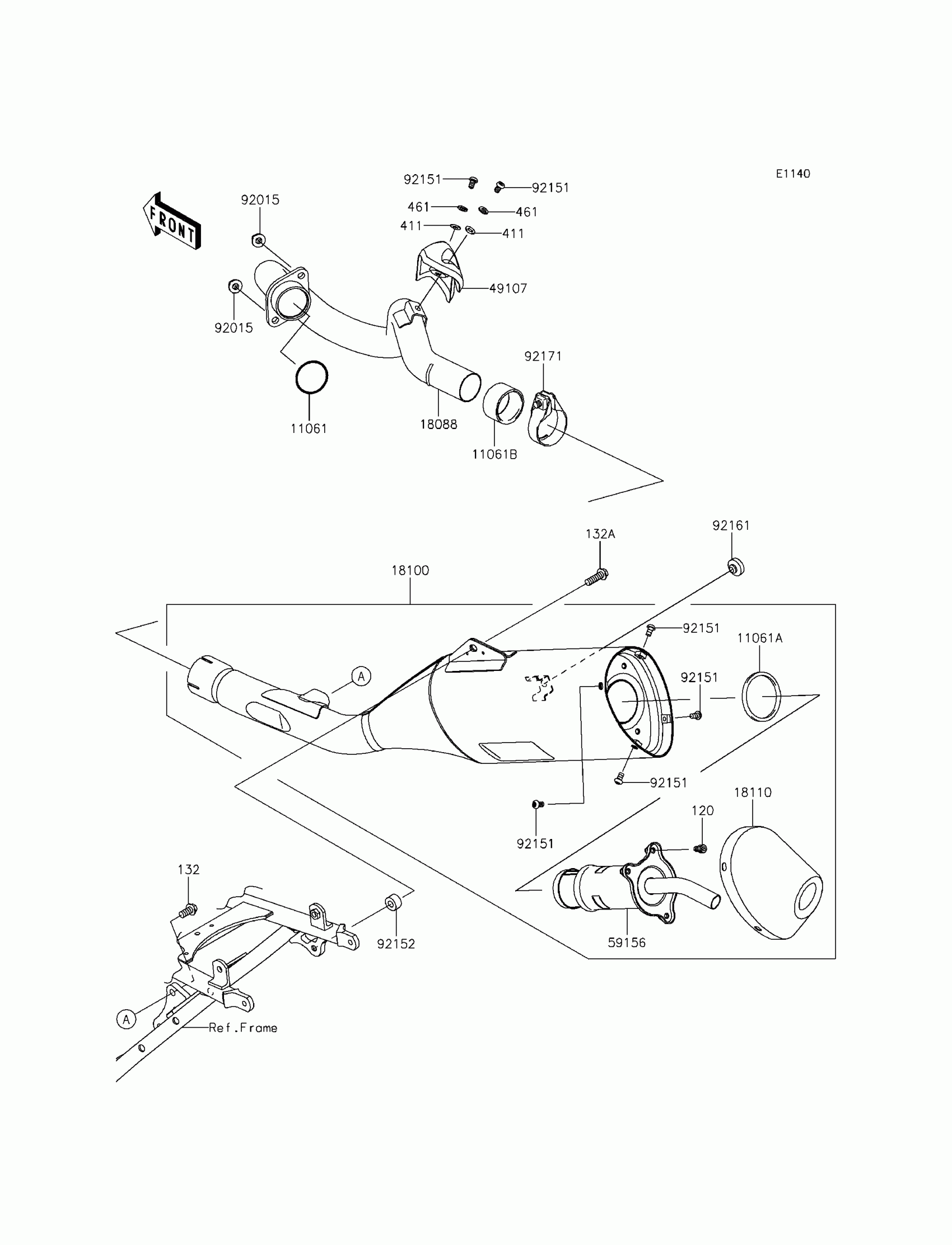

Find the part on the Muffler diagram for your 2015 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki KLX450R (Australian) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120CA0610

1

$1.47

In stock

132

1

$2.20

In stock

132A

1

$3.28

In stock

411

WASHER-PLAIN,6MM

411S0600

1

$1.73

In stock

461

1

$0.97

In stock

11061

1

$6.05

In stock

11061A

GASKET

11061-0100

1

$7.46

In stock

11061B

GASKET,38.1X48.7X32

11061-0285

1

$29.40

In stock

18088

PIPE-EXHAUST

18088-0371

1

$177.31

In stock

18100

BODY-ASSY-MUFFLER

18100-0073

1

$861.51

In stock

18110

BODY END-MUFFLER

18110-0078

1

$65.15

In stock

49107

COVER-EXHAUST PIPE

49107-0109

1

$67.34

In stock

59156

PIPE-TAIL

59156-0028

1

$164.20

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92151

BOLT,SOCKET,6X10

92151-1449

1

$1.63

In stock

92152

COLLAR

92152-3726

1
Out of stock

92161

DAMPER,8X22X6

92161-0516

1

$25.56

In stock

92171

CLAMP

92171-0653

1

$23.49

In stock
