2012 Kawasaki KLX450R (Australian) Engine Shrouds Diagram

← All diagrams

Find the part on the Engine Shrouds diagram for your 2012 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

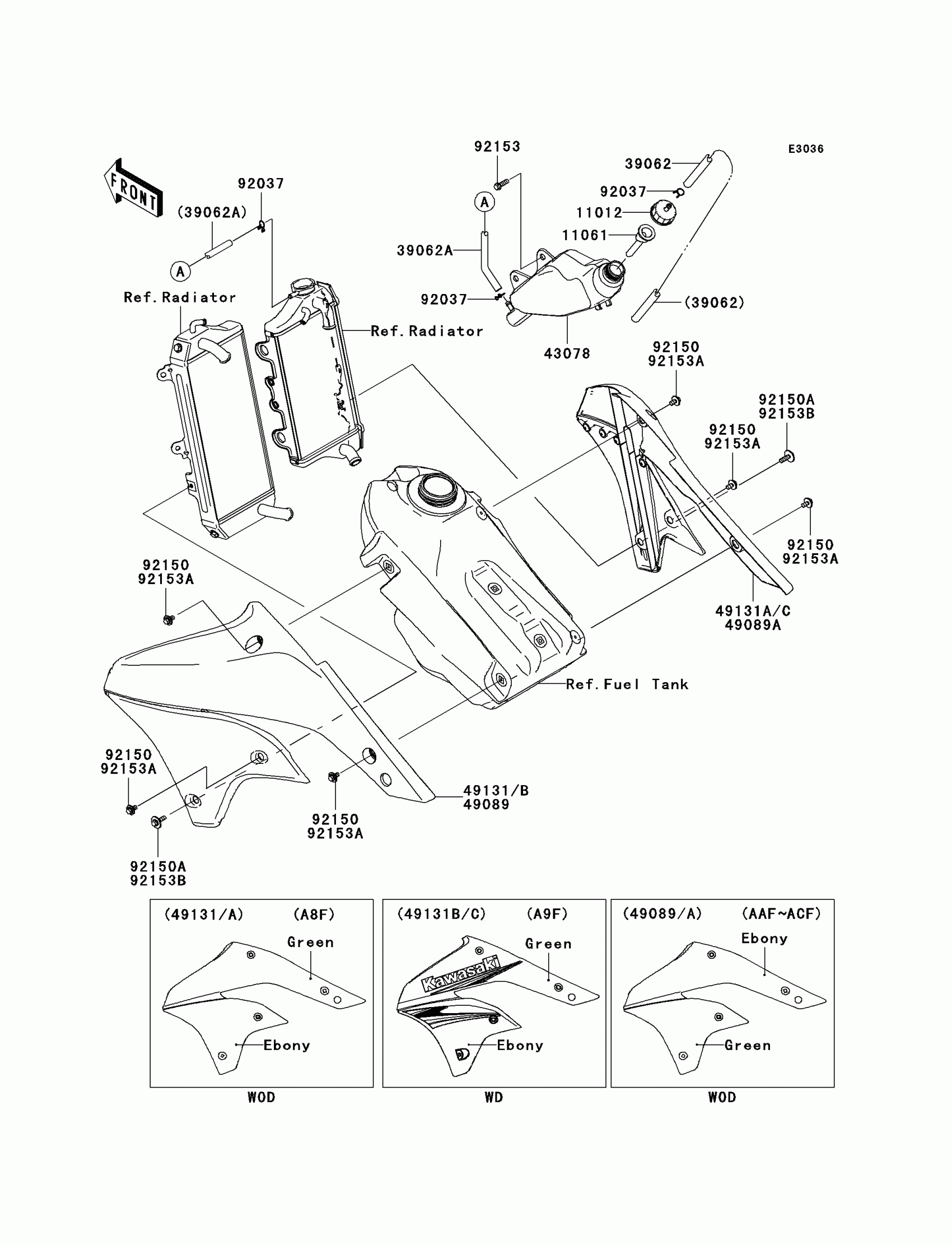

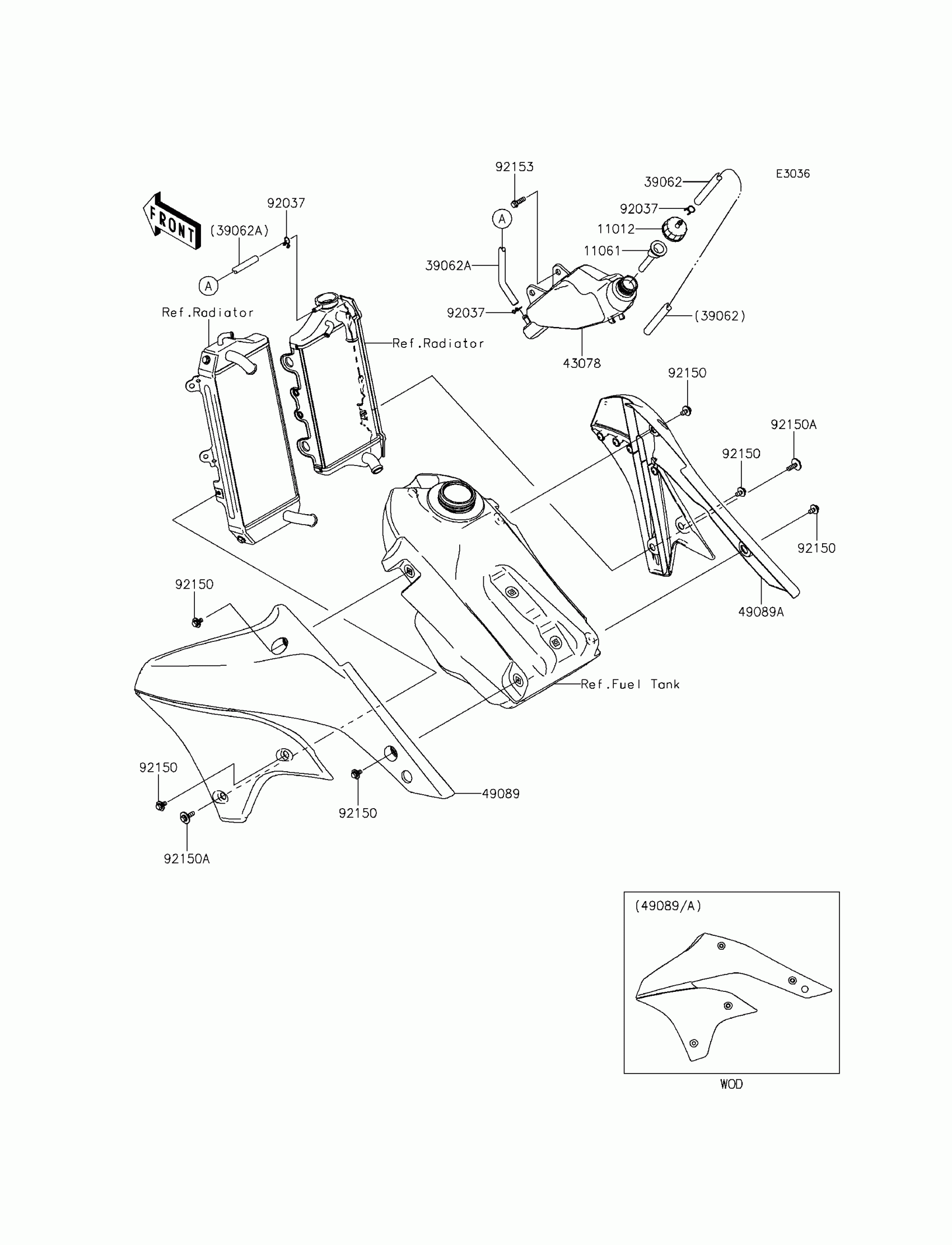

2012 Kawasaki KLX450R (Australian) Engine Shrouds Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1854

1
Out of stock

11061

GASKET

11061-0043

1
Out of stock

39062

1

$11.32

In stock

39062A

1

$17.20

In stock

43078

RESERVOIR

43078-0039

1
Out of stock

49089

SHROUD-ENGINE,LH,UP EBO+LO GRN

49089-0042-27W

1
Out of stock

49089A

SHROUD-ENGINE,RH,UP EBO+LO GRN

49089-0055-27W

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92150

BOLT,6X12

92150-1435

1
Out of stock

92150A

BOLT,6X20

92150-1801

1
Out of stock

92153

BOLT,6X20

92153-0502

1
Out of stock
