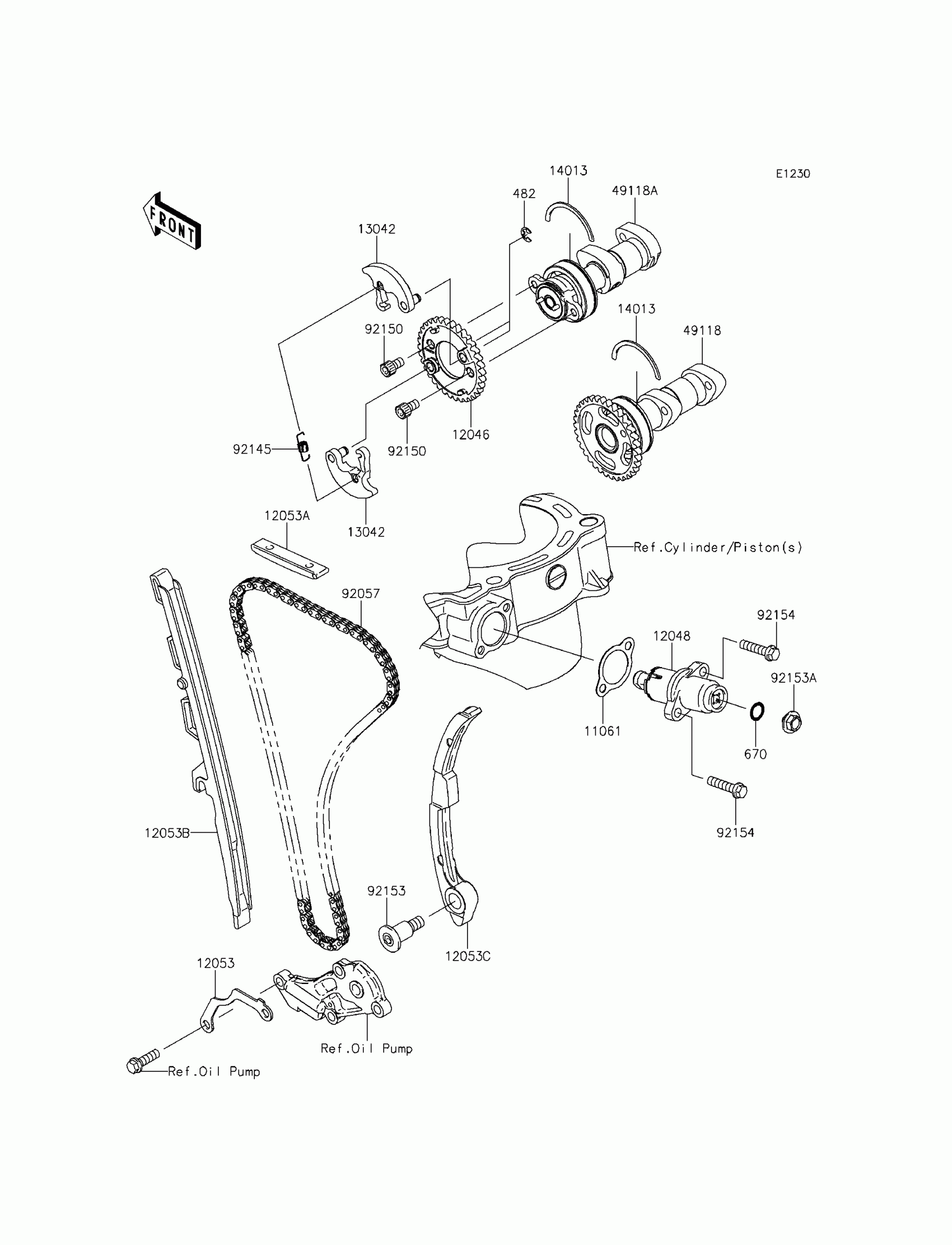

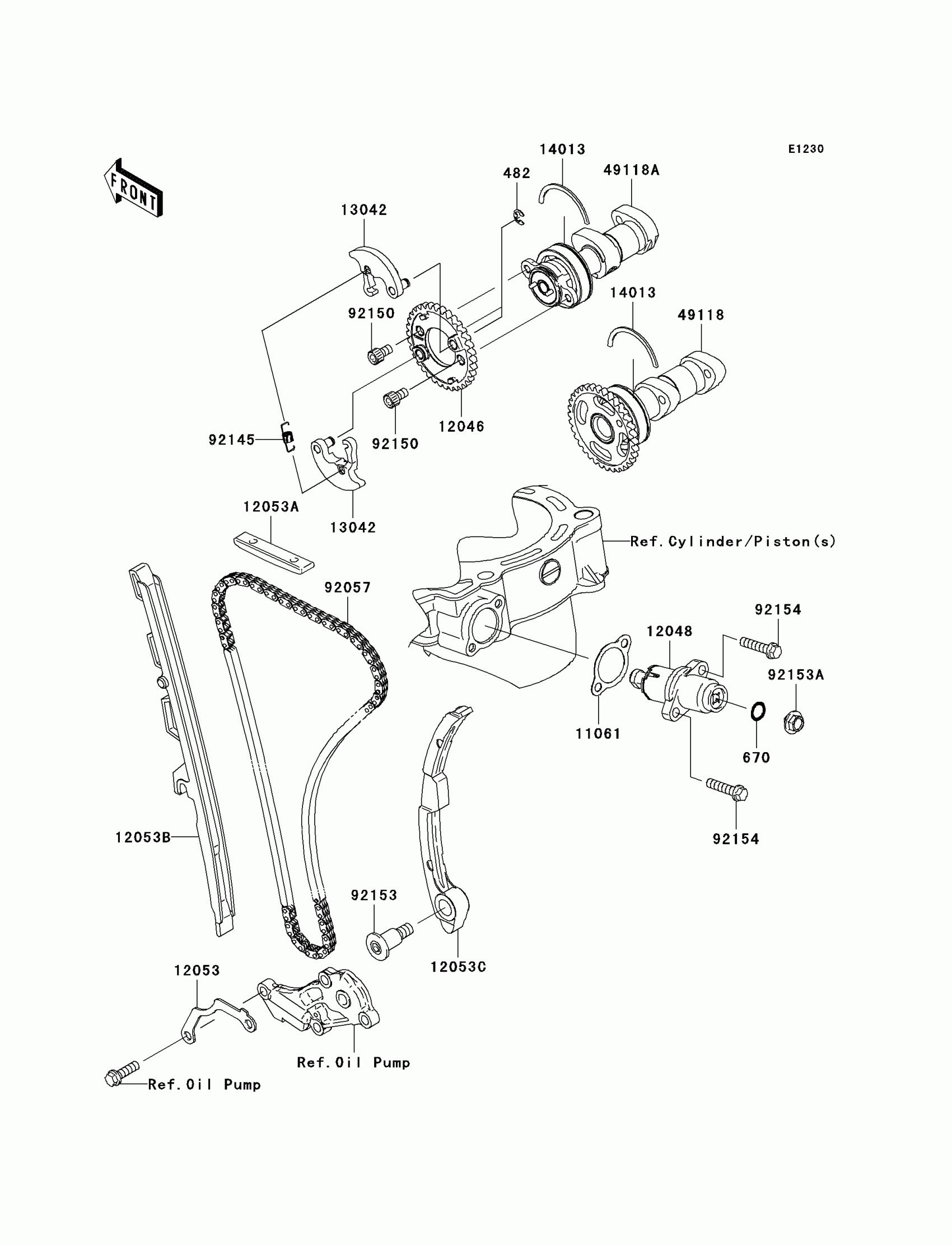

Kawasaki KLX450R (Australian) Camshaft(s)/Tensioner Diagram

Description

Price

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36

670

O RING,10MM

670D2010

$1.41

11061

GASKET

11061-0260

$4.24

12046

SPROCKET,34T

12046-0043

$65.29

12048

TENSIONER-ASSY

12048-0021

Unavailable

12053

GUIDE-CHAIN,CAM CHAIN STOPPER

12053-0031

$4.24

12053A

GUIDE-CHAIN,UPP

12053-0051

$19.45

12053B

GUIDE-CHAIN,FR

12053-0064

$47.25

12053C

GUIDE-CHAIN,RR

12053-0065

$70.19

13042

WEIGHT

13042-0005

$33.76

14013

RING-POSITION

14013-0001

$4.18

49118

CAMSHAFT-COMP,INTAKE

49118-0101

$210.96

49118A

CAMSHAFT-COMP,EXHAUST

49118-0102

$269.29

92057

CHAIN,98XRH2010-124M

92057-0035

$48.55

92145

SPRING

92145-0541

$3.09

92150

BOLT,SOCKET,6X10

92150-1650

$3.85

92153

BOLT,8X29.5

92153-0717

$12.95

92153A

BOLT,6X6

92153-1380

$1.32

92154

BOLT,FLANGED,6X25

92154-0520

$2.31
