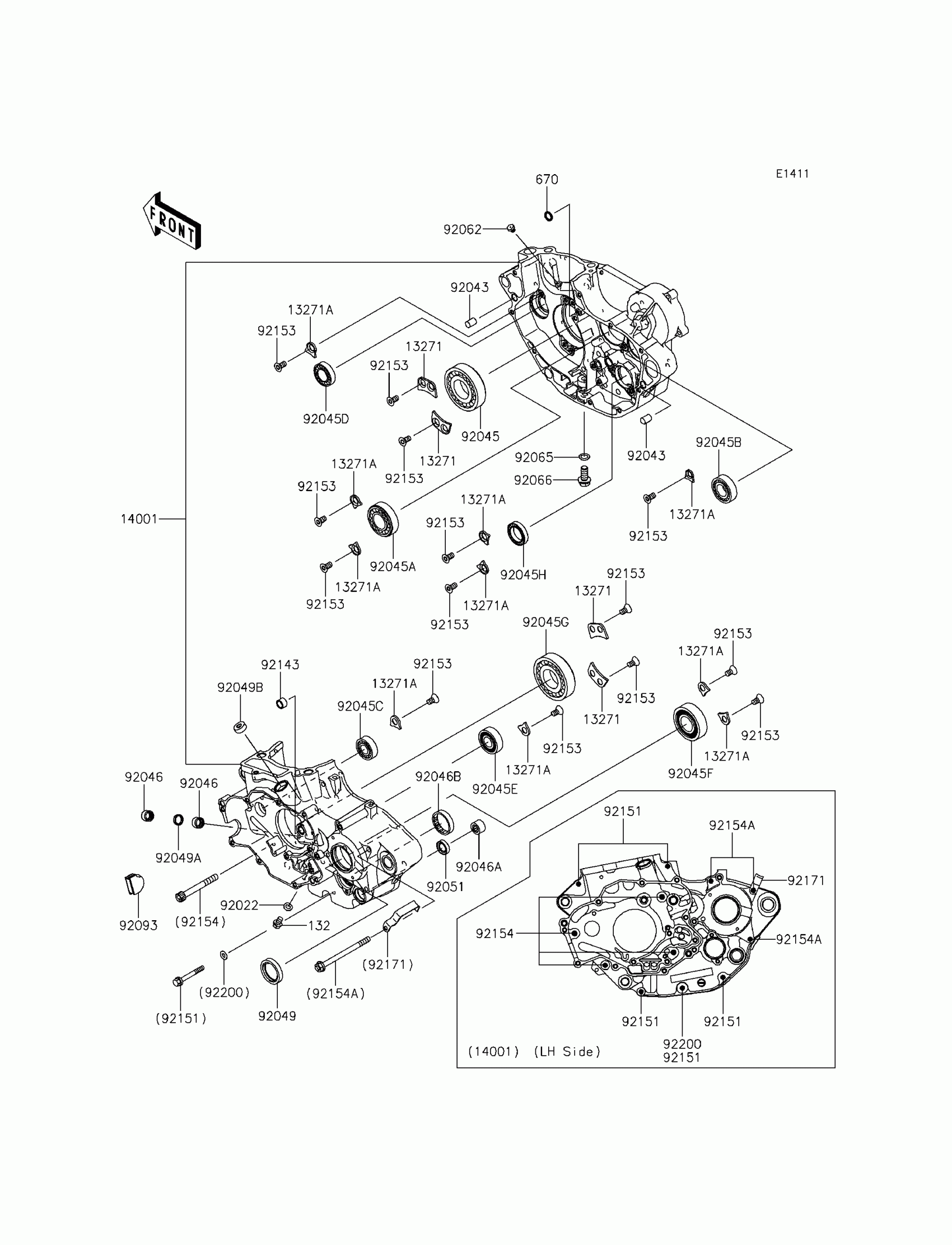

Find the part on the Crankcase diagram for your 2015 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki KLX450R (Australian) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

670

O RING,7MM

670D1507

1
Out of stock

13271

PLATE

13271-0334

1

$6.16

In stock

13271A

PLATE

13271-0345

1

$4.68

In stock

14001

SET-CRANKCASE

14001-0093

1

$715.12

In stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92045

BEARING-BALL,B32-32-A-DUX8EC4

92045-0031

1
Out of stock

92045A

BEARING-BALL,25X52X15

92045-0035

1
Out of stock

92045B

BEARING-BALL,20X42X12

92045-0036

1
Out of stock

92045C

BEARING-BALL,6202SH2C3

92045-0037

1
Out of stock

92045D

BEARING-BALL,6904C3UR5

92045-0038

1
Out of stock

92045E

BEARING-BALL,3TM-5X0391LUC3

92045-0057

1
Out of stock

92045F

BEARING-BALL

92045-0062

1
Out of stock

92045G

BEARING-BALL

92045-0132

1
Out of stock

92045H

BEARING-BALL,6805JRZ

92045-1432

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92046B

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

1
Out of stock

92049

SEAL-OIL,TC 30 40 7

92049-0030

1
Out of stock

92049A

SEAL-OIL,12X16X3

92049-0087

1
Out of stock

92049B

SEAL-OIL,TC4 8 18 7

92049-0088

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92062

NOZZLE,6X7

92062-0013

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG,DRAIN,10X22

92066-0038

1
Out of stock

92093

SEAL,BLIND,LH CRANKCASE

92093-0071

1
Out of stock

92143

COLLAR

92143-1263

1
Out of stock

92151

BOLT,6X50

92151-1545

1
Out of stock

92153

BOLT,TORX,6X8.7

92153-1669

1
Out of stock

92154

BOLT,SOCKET,7X60

92154-0527

1
Out of stock

92154A

BOLT,FLANGED,6X85

92154-0528

1
Out of stock

92171

CLAMP

92171-0579

1

$6.11

In stock

92200

WASHER,6.3X13.5X1.0

92200-0171

1
Out of stock
