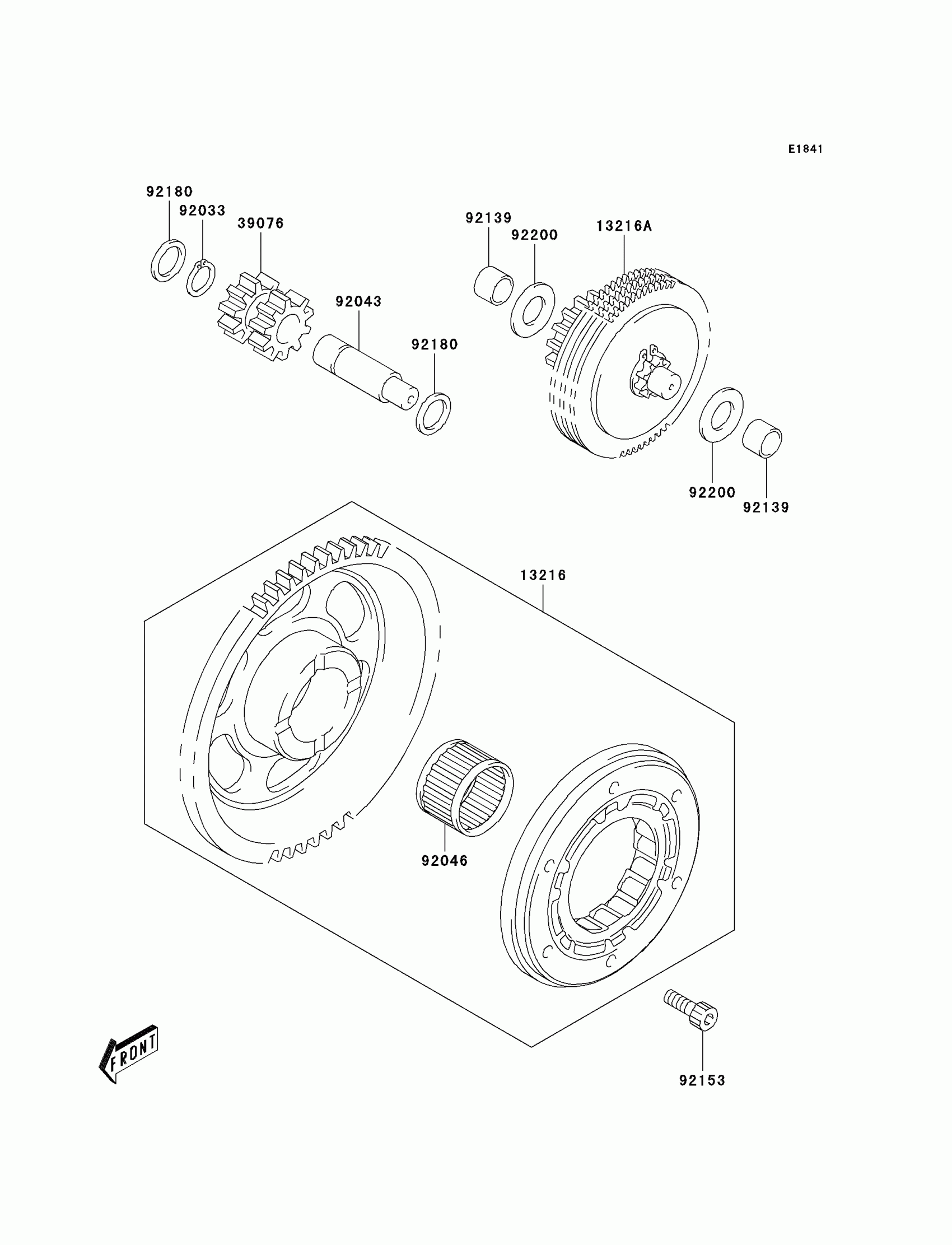

Kawasaki KLX400R (Canada Only) Starter Clutch Diagram

Description

Price

13216

GEAR-COMP,STARTER

13216-S010

$260.73

13216A

GEAR-COMP,STARTER IDLE GEAR

13216-S011

$213.60

39076

LIMITER,STARTER IDLE

39076-S005

$46.78

92033

RING-SNAP

92033-S023

$1.71

92043

92043-S052

$17.92

92046

BEARING-NEEDLE,STARTER CLUTCH

92046-S021

Unavailable

92139

BUSHING

92139-S024

$24.88

92153

BOLT

92153-S024

$1.71

92180

SHIM,STARTER IDLE GEAR

92180-S010

$1.80

92200

WASHER,LIMITER ASSY

92200-S129

$1.77
