2004 Kawasaki KLX400R (Canada Only) Ignition Switch Diagram

← All diagrams

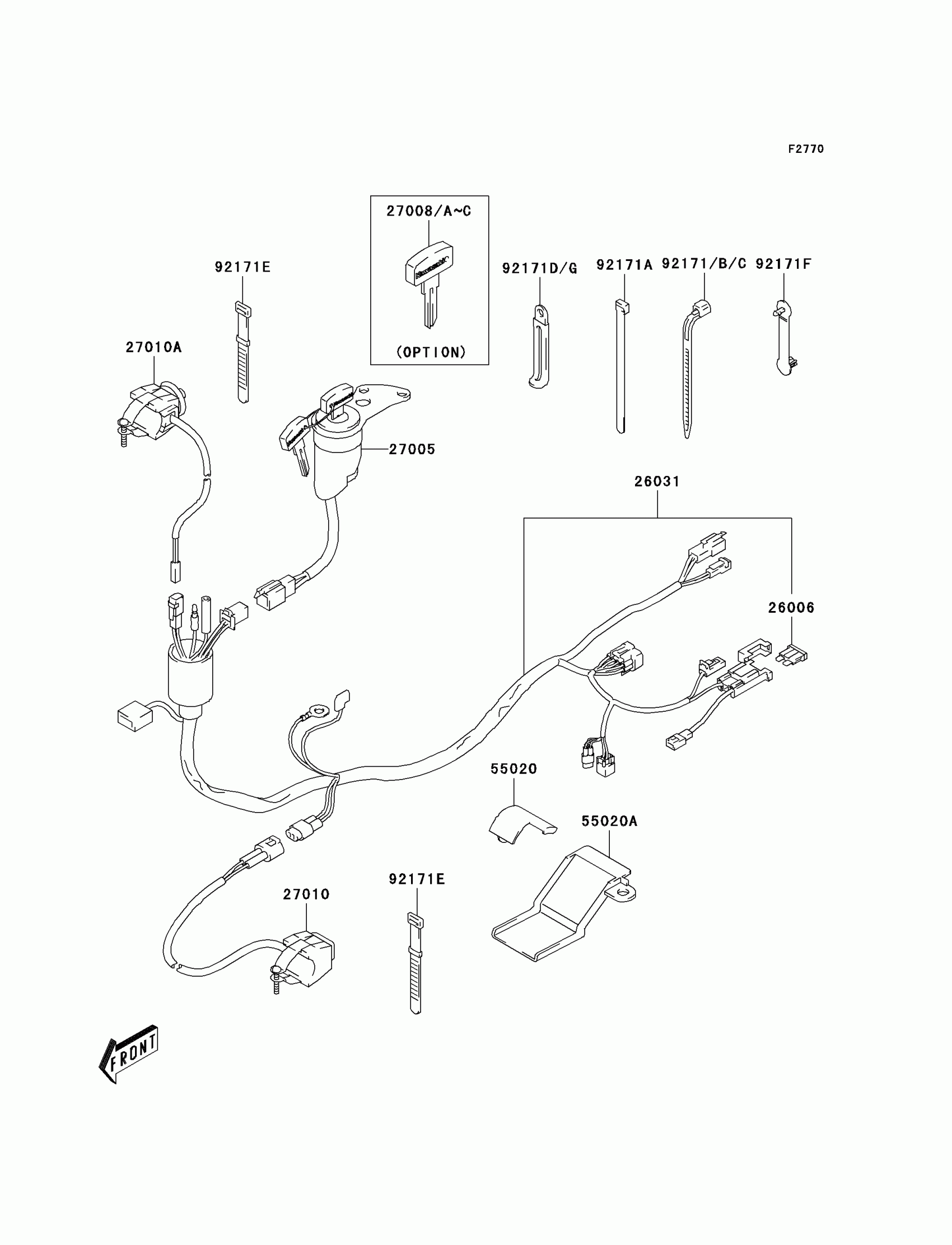

Find the part on the Ignition Switch diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400R (Canada Only) Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26006

FUSE,10A

26006-S007

1

$1.76

In stock

26031

HARNESS

26031-S005

1

$179.57

In stock

27005

1

$112.30

In stock

27008

1

$13.44

In stock

27008A

1

$13.44

In stock

27008B

1

$13.44

In stock

27008C

1

$13.44

In stock

27010

SWITCH

27010-S013

1

$46.94

In stock

27010A

SWITCH,STARTER

27010-S035

1

$66.22

In stock

55020

1

$6.20

In stock

55020A

1

$8.29

In stock

92171

CLAMP,L=125

92171-S014

1
Out of stock

92171A

CLAMP,L=145

92171-S015

1

$2.90

In stock

92171B

CLAMP,L=165

92171-S016

1
Out of stock

92171C

CLAMP,L=235

92171-S018

1

$4.97

In stock

92171D

CLAMP,L=65

92171-S033

1

$2.17

In stock

92171E

CLAMP,L=120

92171-S035

1

$3.68

In stock

92171F

CLAMP

92171-S108

1

$2.76

In stock

92171G

CLAMP,L=45

92171-S132

1

$1.88

In stock
