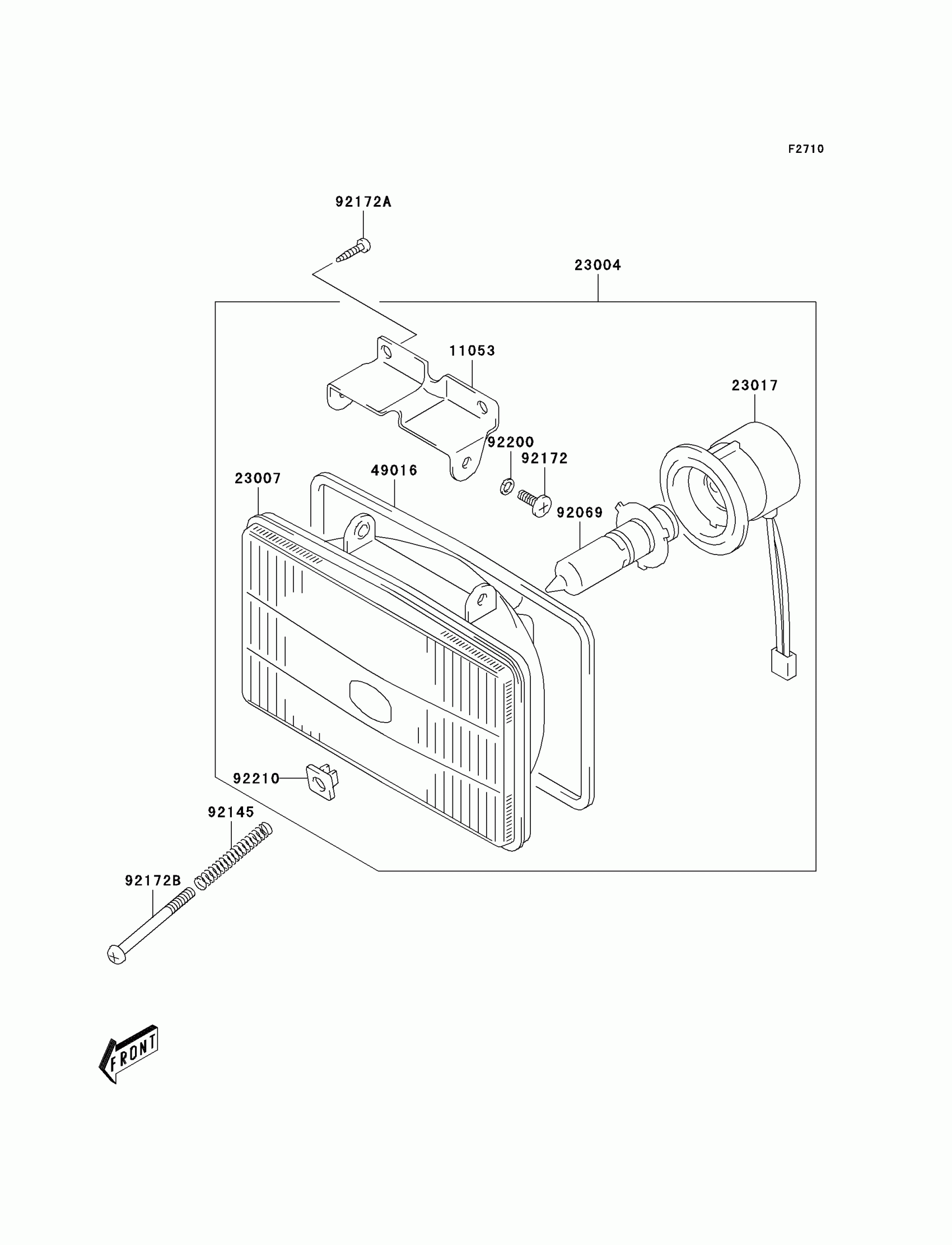

Kawasaki KLX400R (Canada Only) Headlight(s) Diagram

Description

Price

11053

BRACKET,LAMP

11053-S039

$9.42

23004

LAMP-HEAD

23004-S004

$140.47

23007

LENS-COMP

23007-S006

$59.62

23017

SOCKET

23017-S005

Unavailable

49016

COVER-SEAL,HEADLAMP

49016-S007

$12.53

92069

BULB,12V,35/36.5W

92069-S016

$70.07

92145

SPRING,HEADLAMP ADJUST

92145-S141

$2.53

92172

SCREW

92172-S214

$4.10

92172A

SCREW

92172-S216

$1.64

92172B

SCREW,HEADLAMP ADJUST

92172-S217

$3.75

92200

WASHER

92200-S204

$1.86

92210

NUT,ADJUSTING

92210-S123

$3.83
