2004 Kawasaki KLX400R (Canada Only) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

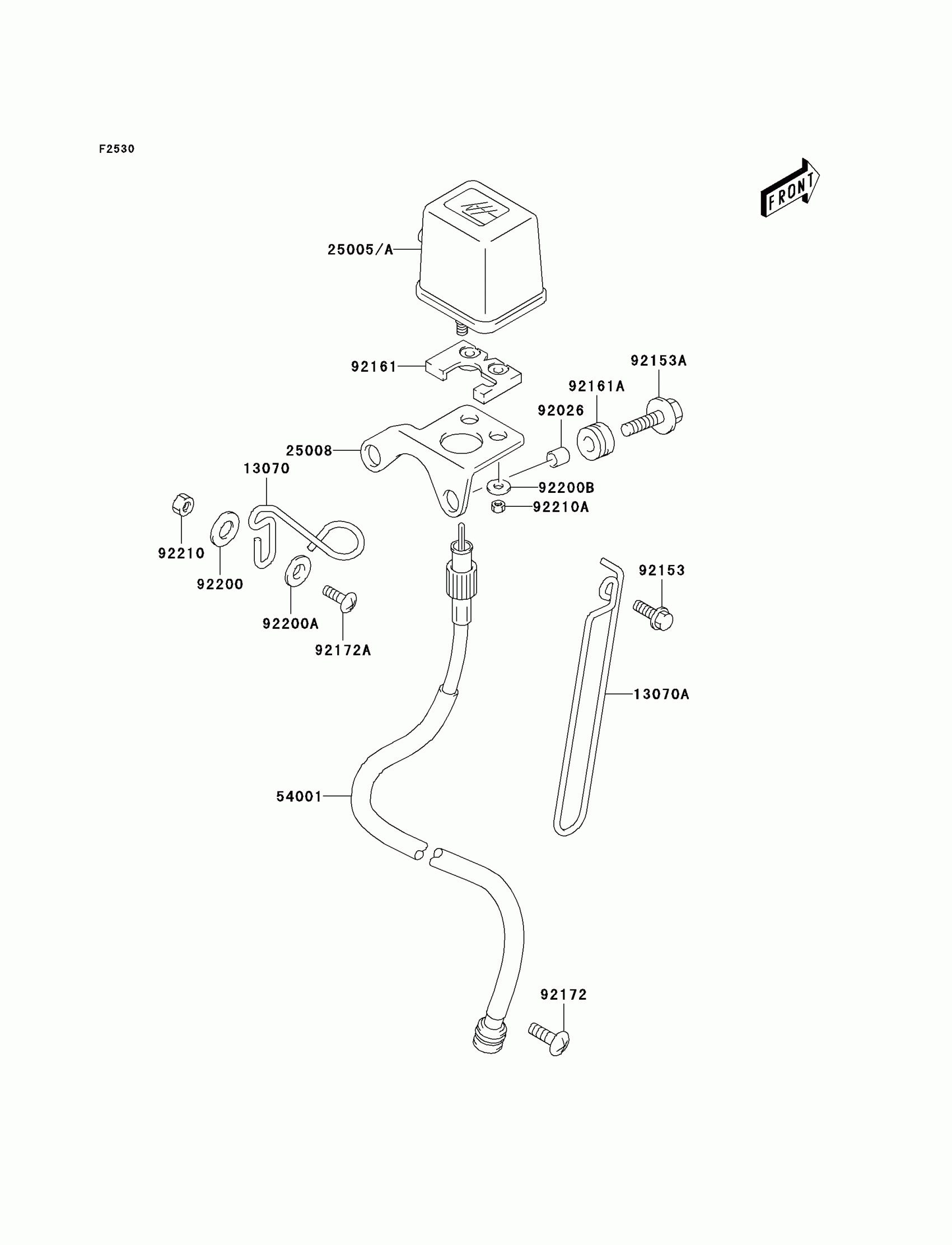

2004 Kawasaki KLX400R (Canada Only) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,METER CABLE

13070-S020

1
Out of stock

13070A

GUIDE,METER CABLE

13070-S021

1
Out of stock

25008

BRACKET-METER

25008-S001

1
Out of stock

54001

CABLE-SPEEDMETER

54001-S002

1
Out of stock

92026

SPACER,6.1X8X9.5

92026-S135

1
Out of stock

92153

BOLT,6X20

92153-S049

1
Out of stock

92153A

BOLT,6X25

92153-S366

1
Out of stock

92161

DAMPER

92161-S142

1
Out of stock

92161A

DAMPER

92161-S145

1
Out of stock

92172

SCREW

92172-S055

1
Out of stock

92172A

SCREW

92172-S132

1
Out of stock

92200

WASHER,6.5X18X1.6

92200-S007

1
Out of stock

92200A

WASHER

92200-S190

1
Out of stock

92200B

WASHER,4.3X14X0.8

92200-S205

1
Out of stock

92210

NUT

92210-S001

1
Out of stock

92210A

NUT

92210-S136

1
Out of stock

25005

SPEEDOMETER,TRIP

25005-S005

1
Out of stock

25005A

SPEEDOMETER,TRIP

25005-S007

1
Out of stock
