2004 Kawasaki KLX400R (Canada Only) Ignition System Diagram

← All diagrams

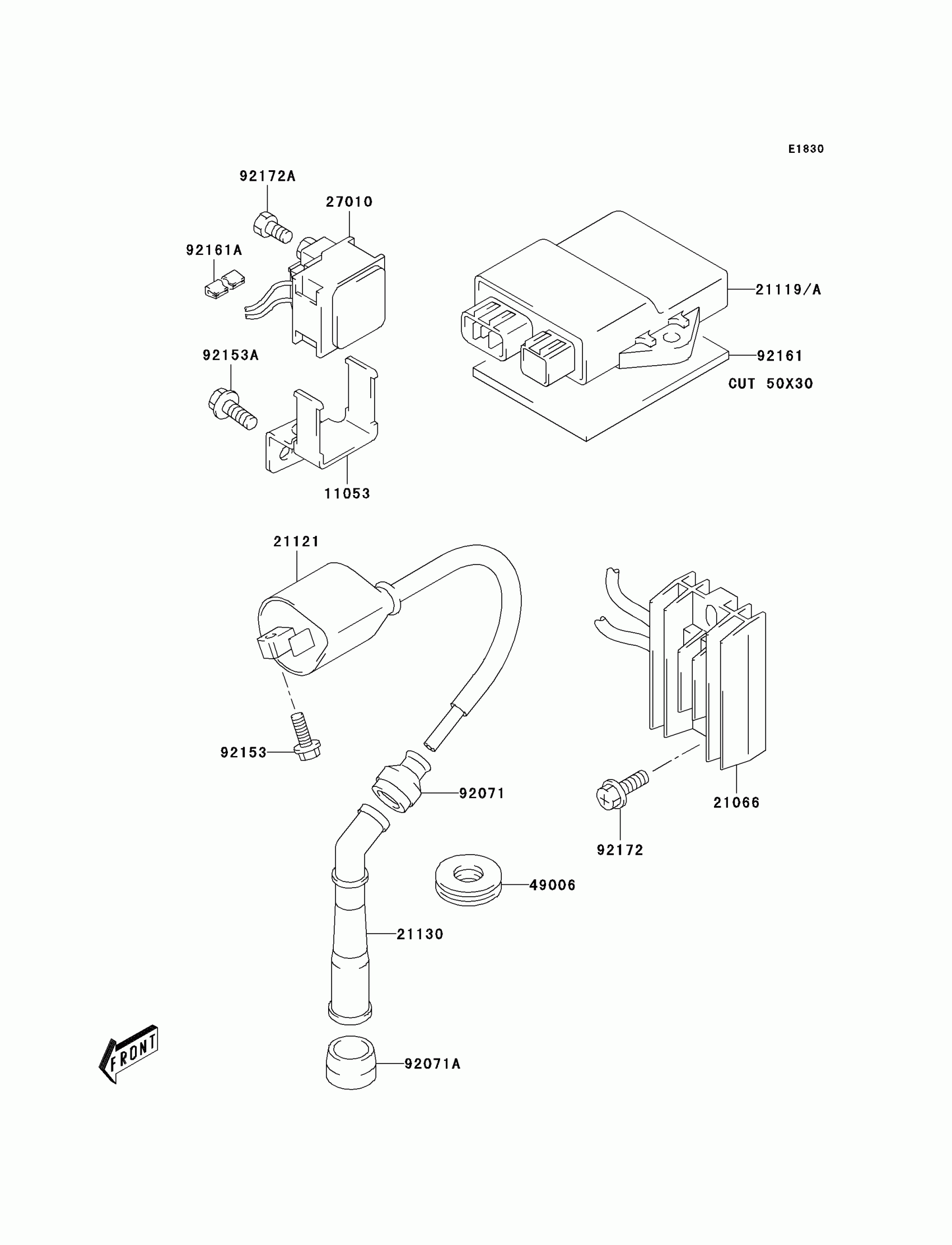

Find the part on the Ignition System diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400R (Canada Only) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,STARTING MOTOR RELAY

11053-S029

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-S005

1
Out of stock

21121

COIL-IGNITION

21121-S006

1
Out of stock

21130

CAP-SPARK PLUG

21130-S006

1
Out of stock

27010

SWITCH,STARTING MOTOR

27010-S031

1
Out of stock

49006

BOOT,SPARK PLUG CAP

49006-S020

1
Out of stock

92071

GROMMET,HIGHTENSION

92071-S004

1
Out of stock

92071A

GROMMET,SPARK PLUG CAP

92071-S007

1
Out of stock

92153

BOLT

92153-S001

1
Out of stock

92153A

BOLT

92153-S011

1
Out of stock

92161

DAMPER,170X95X3.0

92161-S014

1
Out of stock

92161A

DAMPER,STARTING MOTOR

92161-S116

1
Out of stock

92172

SCREW

92172-S022

1
Out of stock

92172A

SCREW,6X8

92172-S035

1
Out of stock

21119

IGNITER

21119-S007

1
Out of stock

21119A

IGNITER

21119-S009

1
Out of stock
