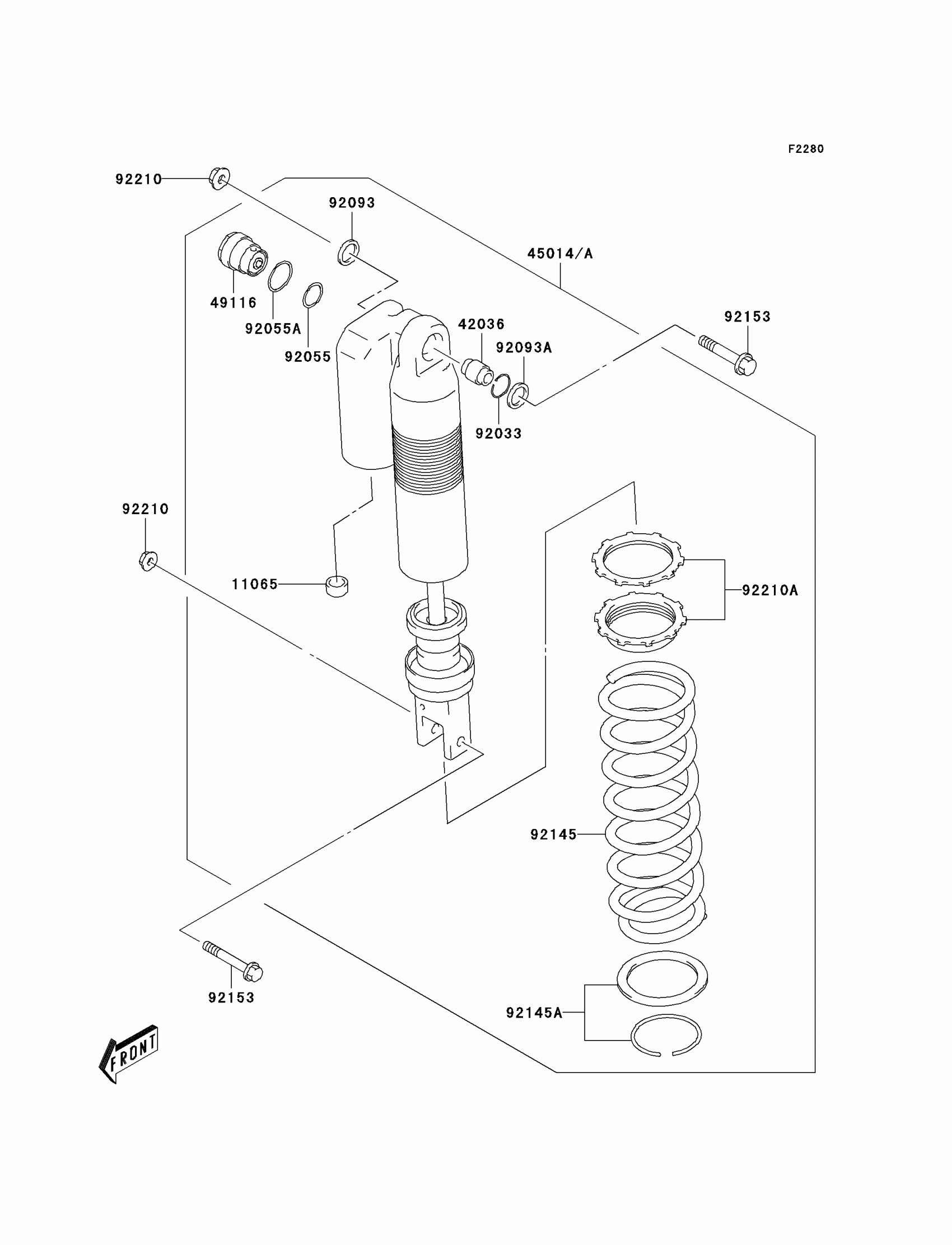

Kawasaki KLX400R (Canada Only) Shock Absorber(s) Diagram

Description

Price

11065

CAP,AIR VALVE

11065-S054

$8.56

42036

SLEEVE,10X26X22

42036-S001

$83.29

49116

VALVE-ASSY,PLUG

49116-S005

$146.56

92033

RING-SNAP

92033-S048

$4.05

92055

RING-O

92055-S082

$4.39

92055A

RING-O

92055-S083

$4.61

92093

SEAL

92093-S046

$9.29

92093A

SEAL

92093-S047

$9.29

92145

SPRING,P.YELLOW

92145-S139-567

$307.30

92145A

SPRING

92145-S140

$57.73

92153

BOLT,10X47.5

92153-S355

$3.80

92210

NUT

92210-S015

$5.05

92210A

NUT

92210-S135

$88.55

45014

SHOCKABSORBER,P.YELLOW

45014-S032-567

$1,520.20

45014A

SHOCKABSORBER,P.YELLOW

45014-S033-567

Unavailable
