2004 Kawasaki KLX400R (Canada Only) Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

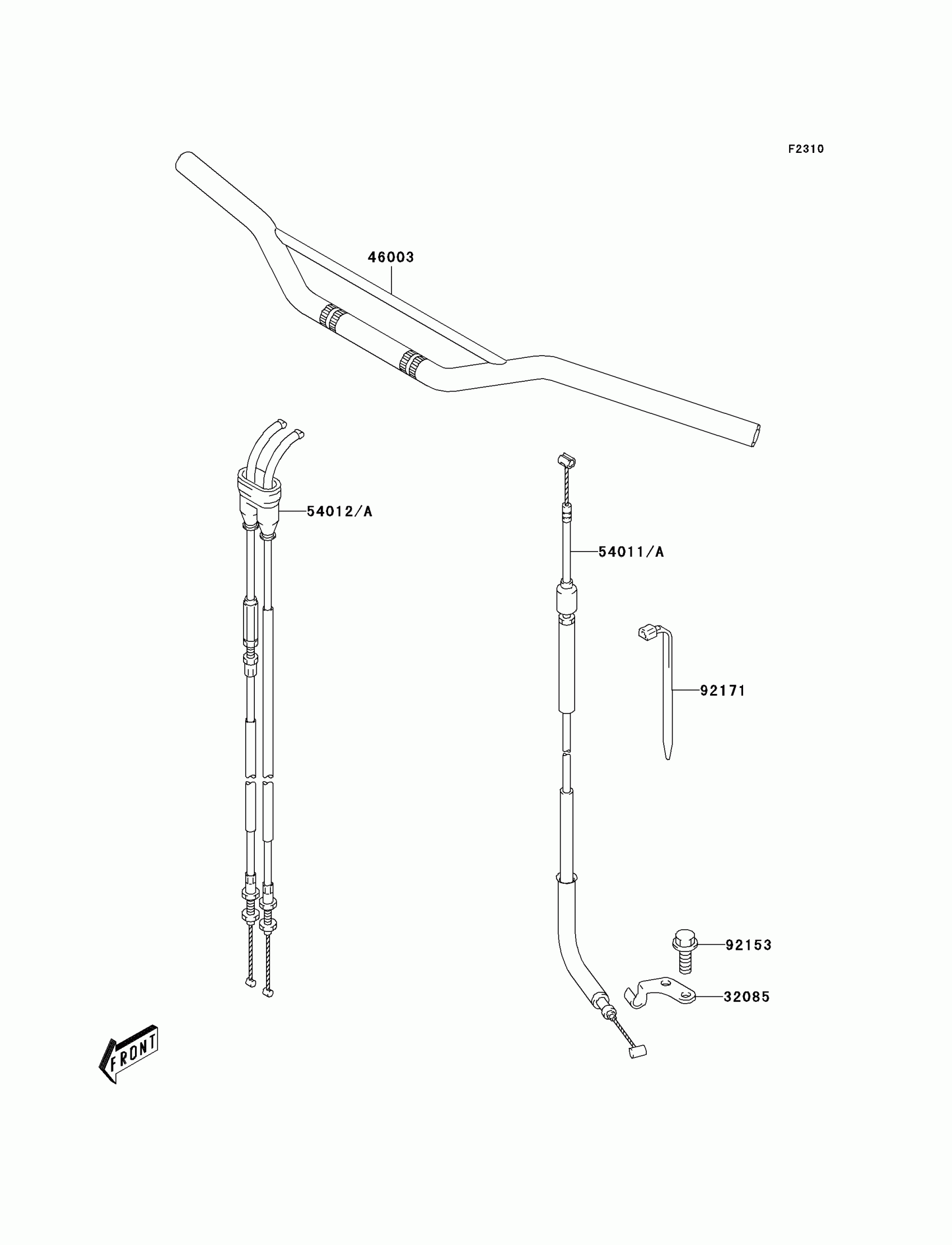

2004 Kawasaki KLX400R (Canada Only) Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,CLUTCH CABLE

32085-S012

1
Out of stock

46003

HANDLE,B.SILVER

46003-S011-530

1
Out of stock

92153

BOLT,CABLE GUIDE

92153-S259

1
Out of stock

92171

CLAMP,L=235

92171-S018

1
Out of stock

54011

CABLE-CLUTCH

54011-S003

1
Out of stock

54011A

CABLE-CLUTCH

54011-S004

1
Out of stock

54012

CABLE-THROTTLE

54012-S010

1
Out of stock

54012A

CABLE-THROTTLE

54012-S011

1
Out of stock
