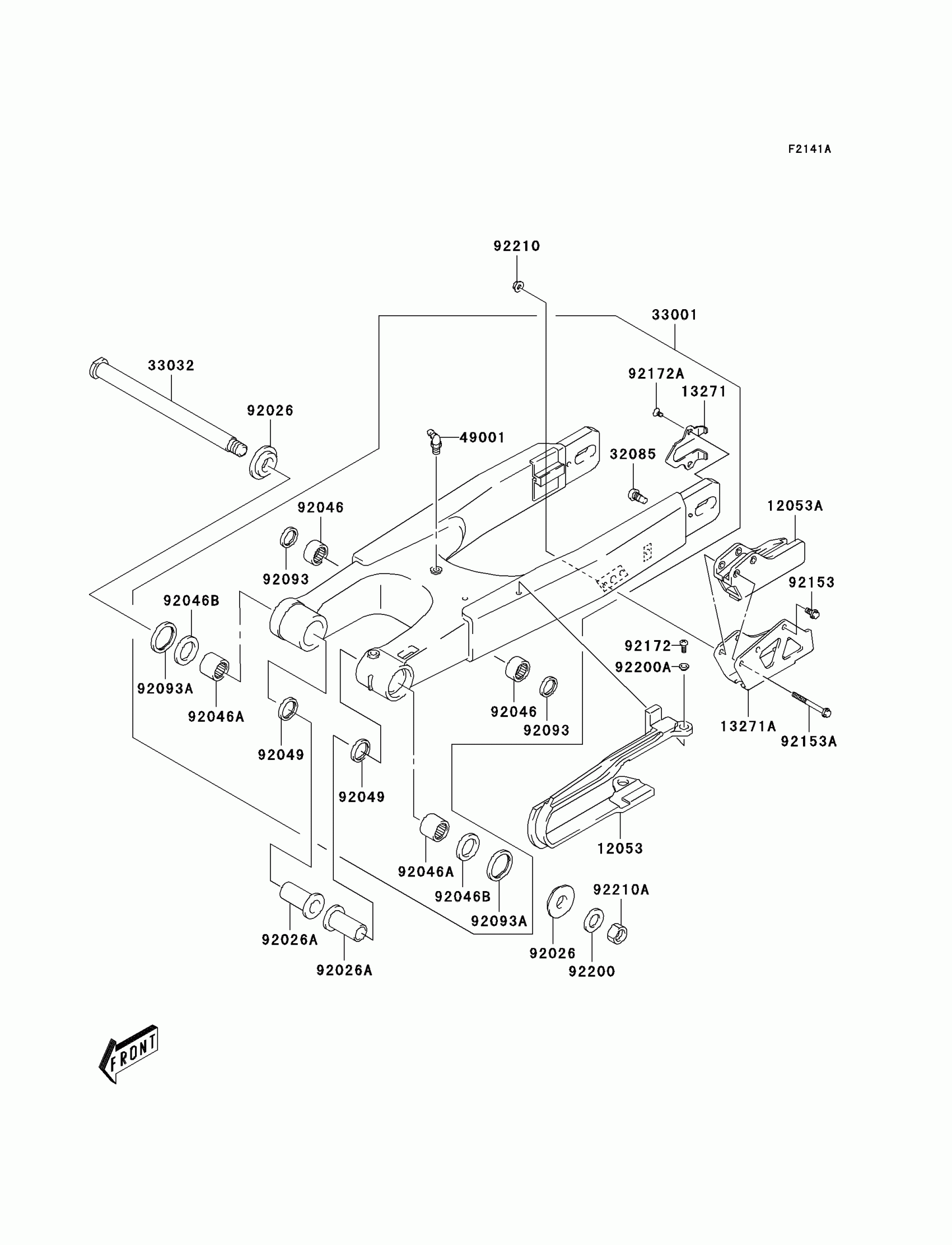

Kawasaki KLX400R (Canada Only) Swingarm(KLX400-B2) Diagram

Description

Price

12053

GUIDE-CHAIN

12053-S020

$70.44

12053A

GUIDE-CHAIN

12053-S021

Unavailable

13271

PLATE

13271-S060

$17.54

13271A

PLATE,CHAIN GUIDE

13271-S063

Unavailable

32085

STOPPER,CHAIN ADJUSTER

32085-S016

$10.73

33001

ARM-COMP-SWING

33001-S012

$1,388.57

33032

SHAFT-SWING ARM

33032-S005

$71.58

49001

NIPPLE-GREASE

49001-S003

Unavailable

92026

SPACER

92026-S121

$16.83

92026A

SPACER

92026-S130

$46.07

92046

BEARING-NEEDLE

92046-S018

$17.46

92046A

BEARING-NEEDLE,SWING ARM

92046-S019

$24.31

92046B

BEARING-NEEDLE,22X35X2

92046-S023

$19.58

92049

SEAL-OIL,SWING ARM

92049-S053

$4.59

92093

SEAL

92093-S041

$5.98

92093A

SEAL,29.2X37X4

92093-S045

$6.29

92153

BOLT

92153-S144

Unavailable

92153A

BOLT

92153-S335

$1.98

92172

SCREW

92172-S110

$1.64

92172A

SCREW,5X8

92172-S209

$2.17

92200

WASHER

92200-S030

$1.66

92200A

WASHER

92200-S200

$3.98

92210

NUT

92210-S054

$2.39

92210A

NUT

92210-S133

$13.44
