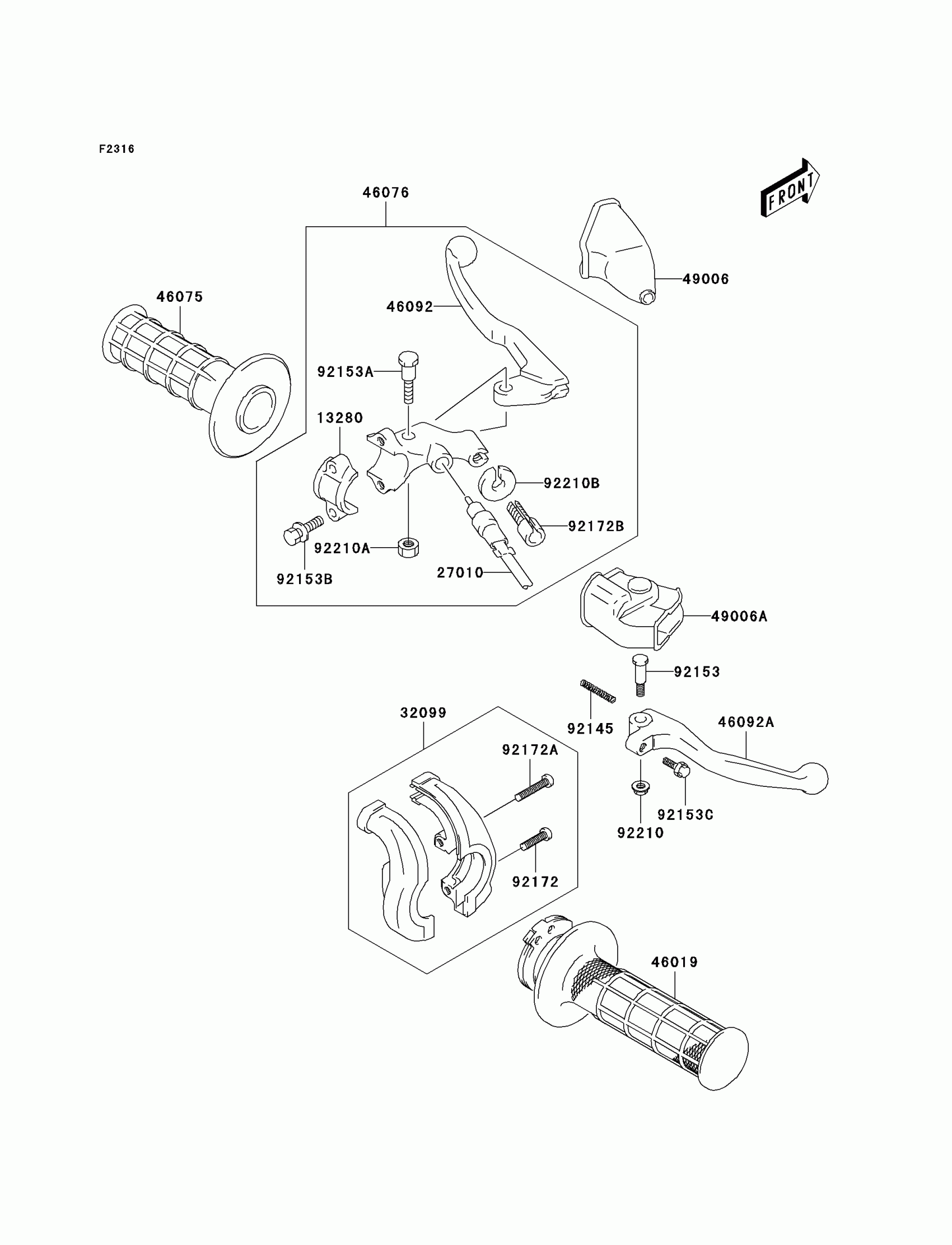

Kawasaki KLX400R (Canada Only) Handle Lever Diagram

Description

Price

13280

HOLDER

13280-S032

$22.80

27010

SWITCH,CLUTCH

27010-S034

$19.24

32099

CASE,THROTTLE

32099-S008

$72.17

46019

GRIP-ASSY,THROTTLE

46019-S006

$38.06

46075

GRIP

46075-S003

$11.40

46076

LEVER-ASSY-GRIP,CLUTCH

46076-S010

$51.71

46092

LEVER-GRIP,CLUTCH

46092-S014

$16.63

46092A

LEVER-GRIP,BRAKE

46092-S015

$33.13

49006

BOOT,CLUTCH CABLE

49006-S030

$10.54

49006A

BOOT

49006-S033

$18.34

92145

SPRING,RETURN

92145-S052

$4.97

92153

BOLT

92153-S170

$8.00

92153A

BOLT

92153-S345

$10.54

92153B

BOLT

92153-S346

$5.59

92153C

BOLT

92153-S362

$6.34

92172

SCREW

92172-S133

Unavailable

92172A

SCREW

92172-S155

$1.49

92172B

SCREW,ADJUSTER

92172-S206

$14.41

92210

NUT

92210-S004

$1.42

92210A

NUT

92210-S053

$2.20

92210B

NUT,LOCK

92210-S128

$12.27
