2004 Kawasaki KLX400R (Canada Only) Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

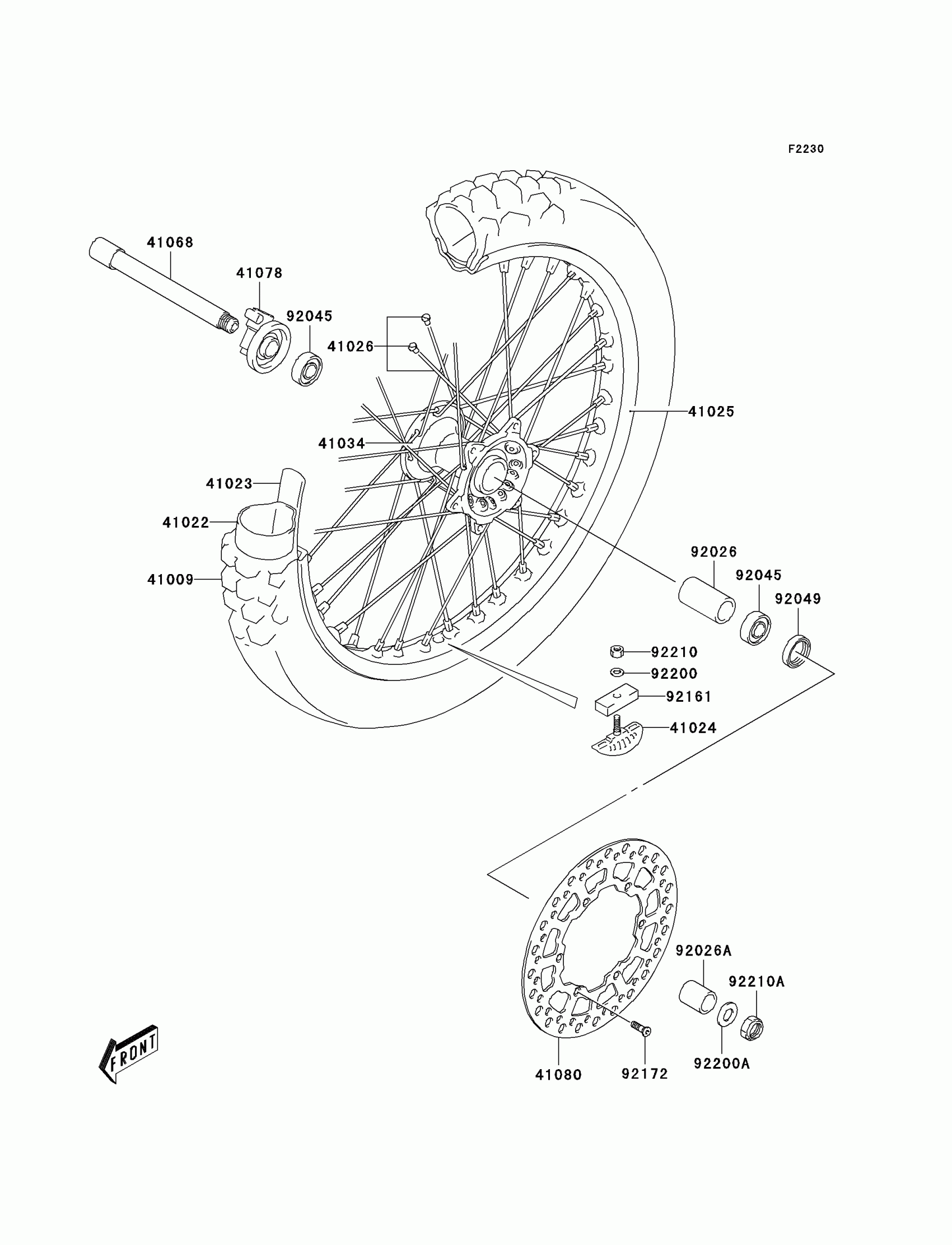

2004 Kawasaki KLX400R (Canada Only) Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,80/100-21 51P(D)

41009-S017

1
Out of stock

41022

TUBE-TIRE

41022-S008

1
Out of stock

41023

BAND-RIM

41023-S008

1
Out of stock

41024

STOPPER-RIM

41024-S002

1
Out of stock

41025

RIM,1.60X21

41025-S013

1
Out of stock

41026

SPOKE-ASSY

41026-S008

1
Out of stock

41034

DRUM-ASSY

41034-S009

1
Out of stock

41068

AXLE,FR

41068-S012

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-S002

1
Out of stock

41080

DISC

41080-S009

1
Out of stock

92026

SPACER,20.5X27.3X70

92026-S128

1
Out of stock

92026A

SPACER

92026-S129

1
Out of stock

92045

BEARING-BALL

92045-S061

1
Out of stock

92049

SEAL-OIL,25X37X6

92049-S059

1
Out of stock

92161

DAMPER

92161-S144

1
Out of stock

92172

SCREW,6X17.5

92172-S210

1
Out of stock

92200

WASHER

92200-S028

1
Out of stock

92200A

WASHER

92200-S199

1
Out of stock

92210

NUT

92210-S051

1
Out of stock

92210A

NUT

92210-S132

1
Out of stock
