2025 Kawasaki KLX300SM Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

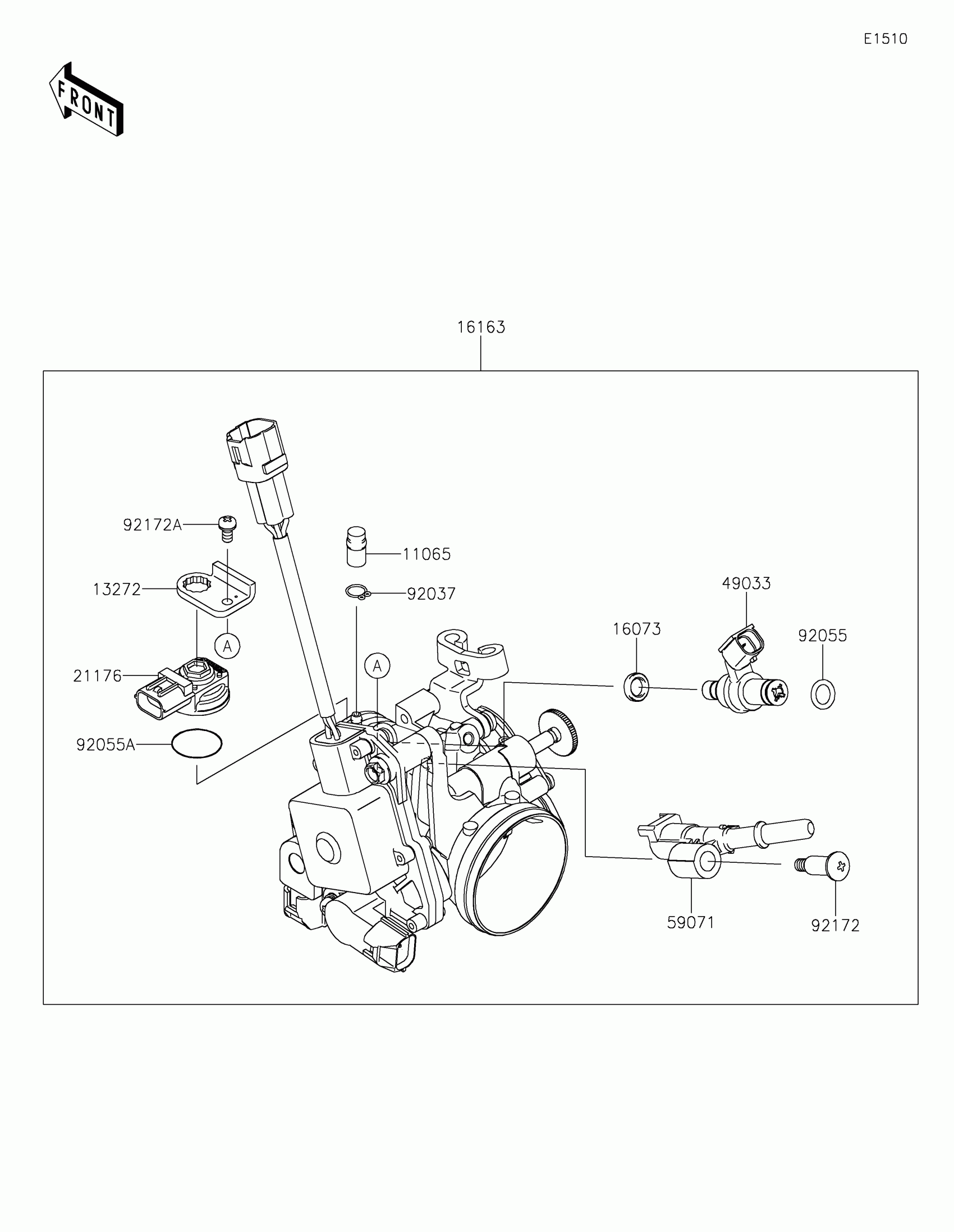

2025 Kawasaki KLX300SM Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0018

1

$4.84

In stock

13272

PLATE

13272-0676

1

$14.78

In stock

16073

INSULATOR

16073-0077

1

$7.12

In stock

16163

THROTTLE-ASSY

16163-1246

1

$693.06

In stock

21176

SENSOR

21176-0122

1

$138.38

In stock

49033

NOZZLE-INJECTION

49033-0016

1

$129.38

In stock

59071

JOINT

59071-0063

1

$43.83

In stock

92037

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92055

RING-O

92055-0170

1

$2.41

In stock

92055A

RING-O

92055-0184

1

$3.81

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0415

1

$2.58

In stock
