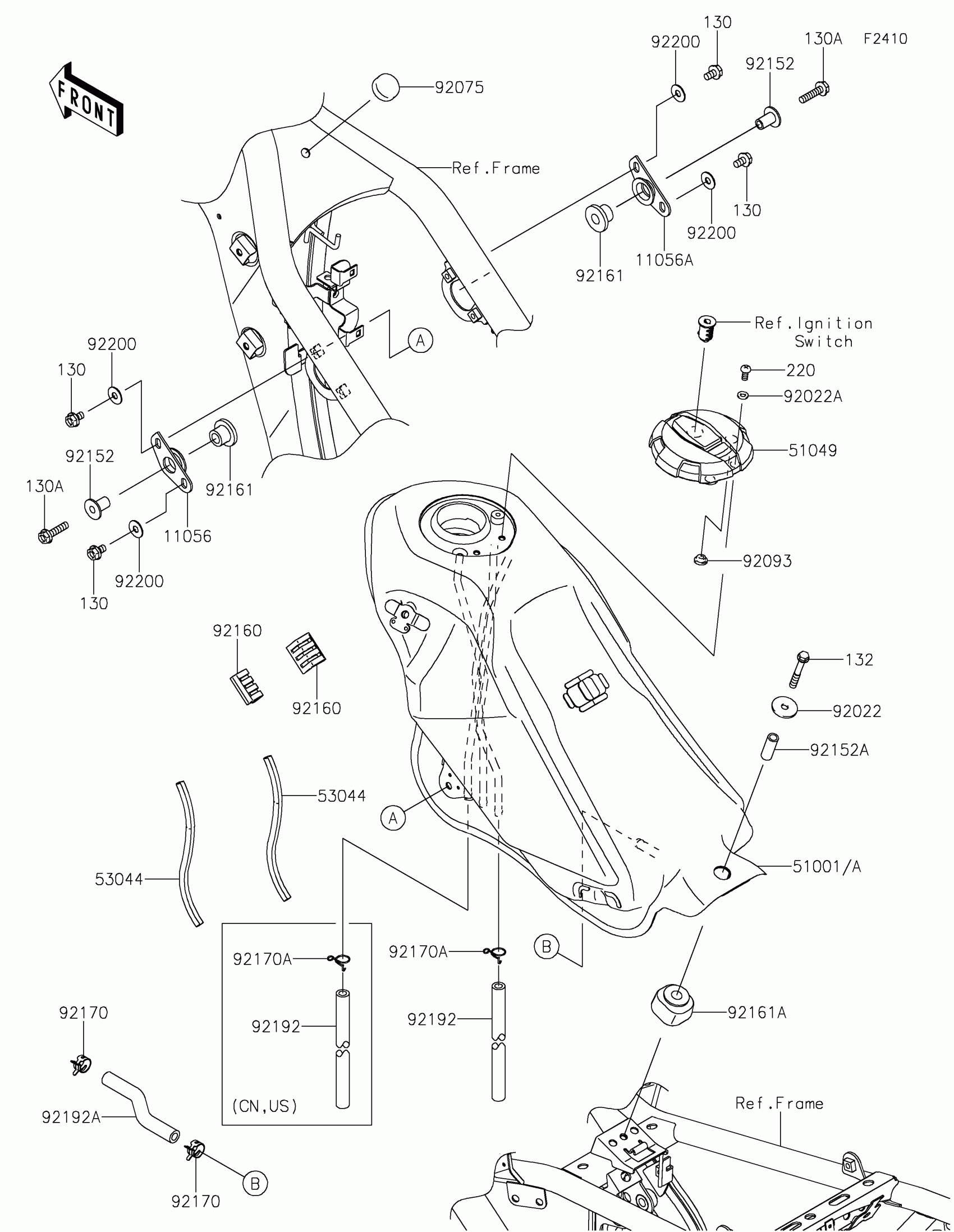

Find the part on the Fuel Tank diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ADJUSTER,LH

11056-1452

1
Out of stock

11056A

BRACKET,ADJUSTER,RH

11056-1457

1
Out of stock

51001A

TANK-COMP-FUEL

51001-0938

1
Out of stock

51049

CAP-TANK,FUEL

51049-0766

1
Out of stock

53044

TRIM,L=157

53044-1276

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92022A

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92075

DAMPER,9X24X14

92075-281

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92152

COLLAR,6.5X10X18

92152-1560

1
Out of stock

92152A

COLLAR,6.8X10X27

92152-2779

1
Out of stock

92160

DAMPER,FUEL TANK

92160-1328

1
Out of stock

92161

DAMPER,10X16X15

92161-1397

1
Out of stock

92161A

DAMPER,FUEL TANK

92161-2373

1
Out of stock

92170

CLAMP

92170-1492

1
Out of stock

92170A

CLAMP,TUBE

92170-1834

1
Out of stock

92192

TUBE,7X12X700

92192-0778

1
Out of stock

92192A

TUBE,BYPASS

92192-0859

1
Out of stock

92200

WASHER,6.5X18X1.6

92200-0766

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

130A

BOLT-FLANGED,6X25

130BB0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132BA0640

1
Out of stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock
