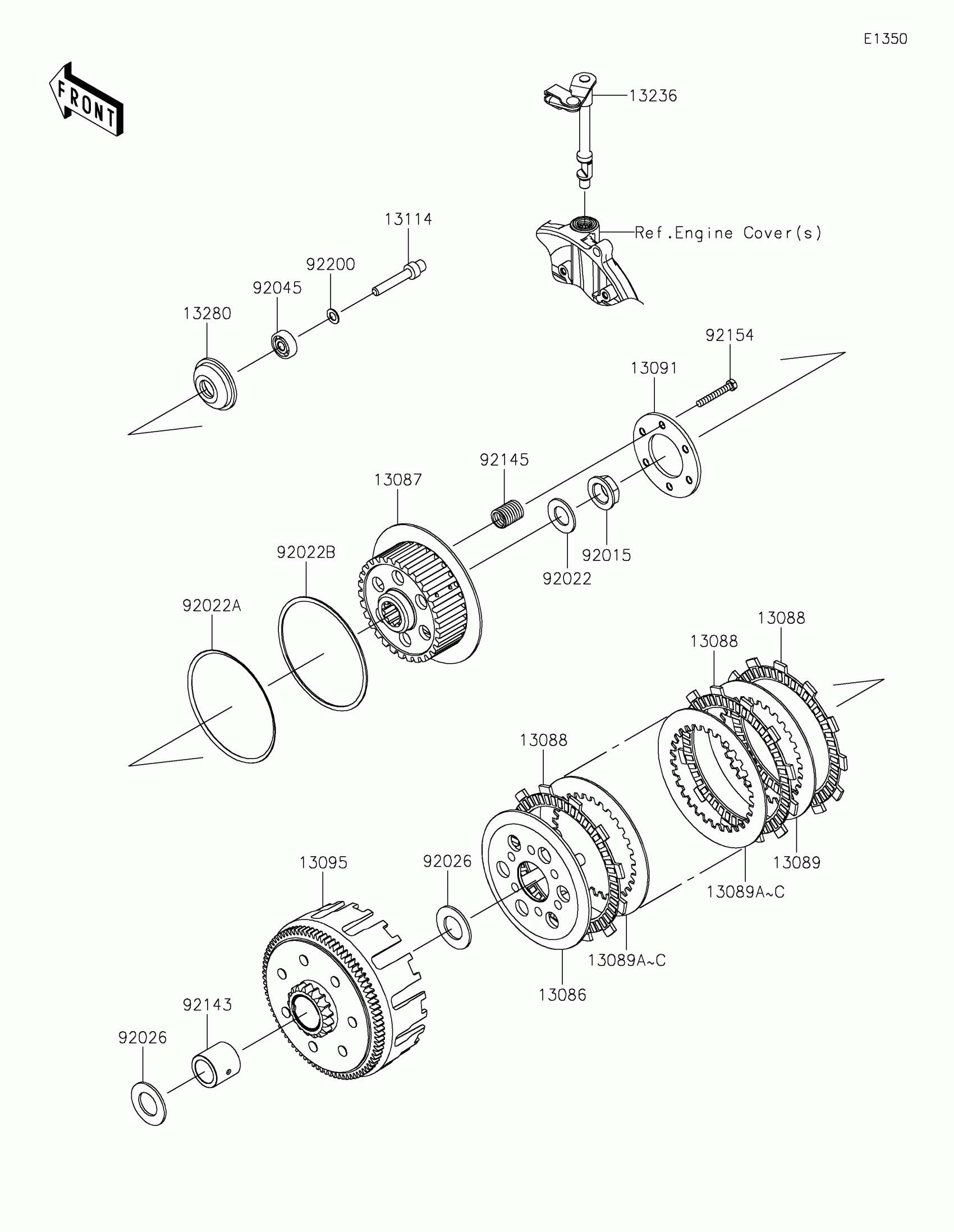

Kawasaki KLX300SM Clutch Diagram

#

Description
Price

13086

WHEEL-CLUTCH

13086-0004

$47.99

13087

HUB-CLUTCH

13087-0045

$137.42

13088

PLATE-FRICTION

13088-0042

$14.18

13089

PLATE-CLUTCH

13089-1085

$10.42

13089A

PLATE-CLUTCH,T=1.6

13089-1094

$9.73

13089B

PLATE-CLUTCH,T=2.0

13089-1116

Unavailable

13089C

PLATE-CLUTCH,T=1.2

13089-1117

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1683

$20.69

13095

HOUSING-COMP-CLUTCH

13095-0576

$441.66

13114

PUSHER-CLUTCH

13114-1068

$24.34

13236

LEVER-COMP

13236-0158

Unavailable

13280

HOLDER,CLUTCH PUSHER

13280-0812

$13.39

92015

NUT,16MM

92015-1581

$14.81

92022

WASHER,16.3X29X1.75

92022-1356

$5.61

92022A

WASHER,JUDDER SPRING

92022-1974

$14.36

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

$14.36

92026

SPACER,20.3X36.6X2

92026-0725

$12.85

92045

BEARING-BALL,627

92045-1236

$16.08

92143

COLLAR

92143-1959

$30.45

92145

SPRING

92145-0637

$10.70

92154

BOLT,UPSET,5X35

92154-0065

Unavailable

92200

WASHER,7X12.5X0.8

92200-0909

$3.49
