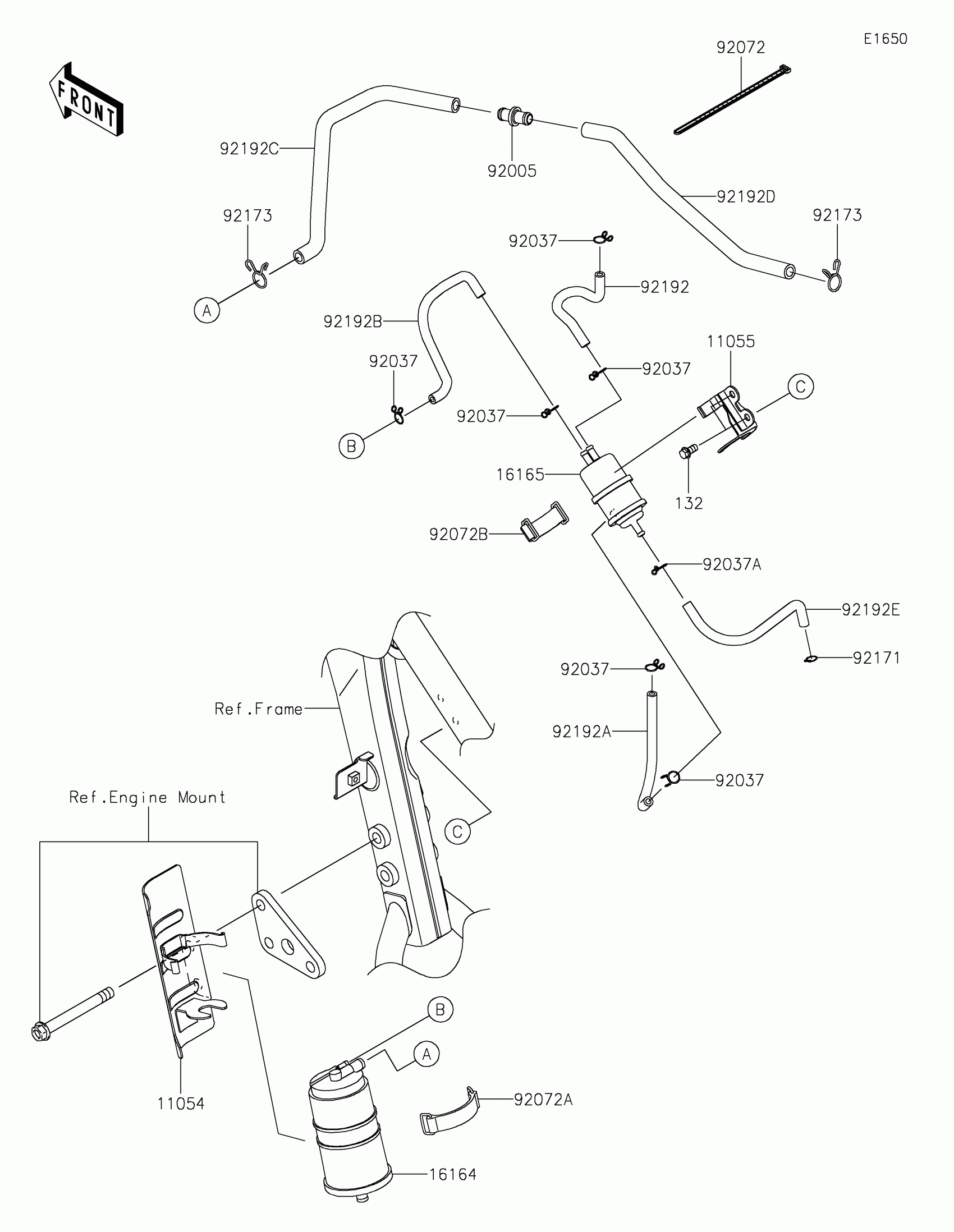

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,CANISTER

11054-1638

1
Out of stock

11055

BRACKET,SEPARATOR

11055-1149

1
Out of stock

16164

CANISTER

16164-0022

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92005

FITTING

92005-1379

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=250

92072-1237

1
Out of stock

92072A

BAND,TOOL,L=82

92072-1294

1
Out of stock

92072B

BAND,L=50

92072-1419

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92173

CLAMP,14MM

92173-0192

1
Out of stock

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0722

1
Out of stock

92192A

TUBE,SEPARATOR-TANK,RED

92192-0723

1
Out of stock

92192B

TUBE,SEPARATOR-CANISTER,BLUE

92192-0724

1
Out of stock

92192C

TUBE,CANISTER-FITTING,GRN/WHT

92192-0725

1
Out of stock

92192D

TUBE,FITTING-A/C,GRN/WHT

92192-0726

1
Out of stock

92192E

TUBE,THROBO-SEPARATOR,WHITE

92192-0787

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BB0612

1
Out of stock
