2001 Kawasaki KLX300R Oil Pump Diagram

← All diagrams

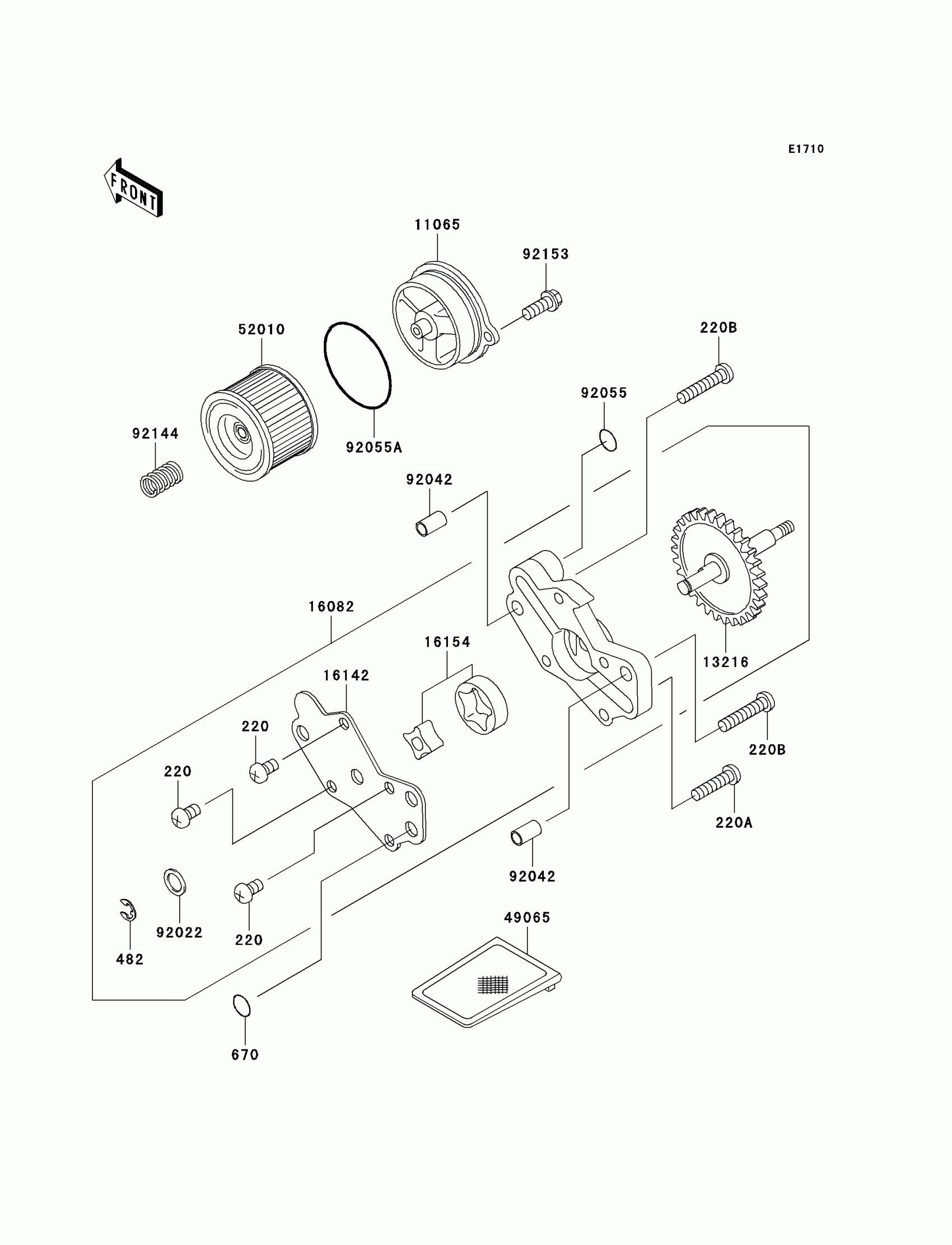

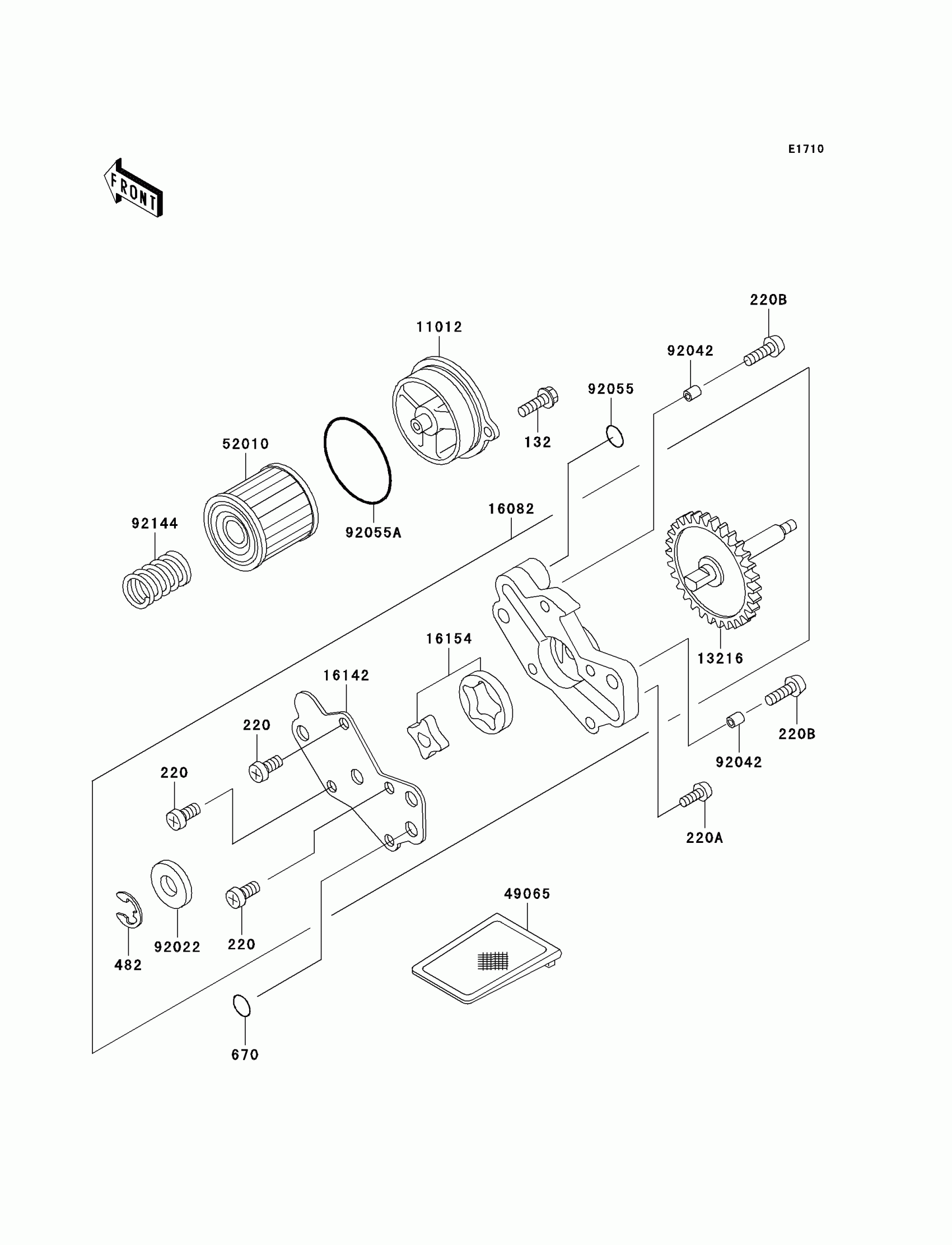

Find the part on the Oil Pump diagram for your 2001 Kawasaki KLX300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KLX300R Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

220

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

220A

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

220B

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

482

1

$0.67

In stock

670

O RING,10MM

670B2010

1

$1.31

In stock

11012

CAP,OIL FILTER

11012-1915

1

$59.58

In stock

13216

GEAR-COMP

13216-1142

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1130

1

$207.46

In stock

16142

COVER-PUMP

16142-1123

1

$44.51

In stock

16154

ROTOR-PUMP

16154-1077

1

$38.53

In stock

49065

FILTER-OIL

49065-1058

1

$10.11

In stock

52010

ELEMENT-OIL FILTER

52010-1053

1

$7.23

In stock

92022

1

$3.12

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,OD=13

92055-074

1

$6.82

In stock

92055A

RING-O,52.6X2.4

92055-1577

1

$3.72

In stock

92144

SPRING

92144-1761

1

$3.69

In stock
