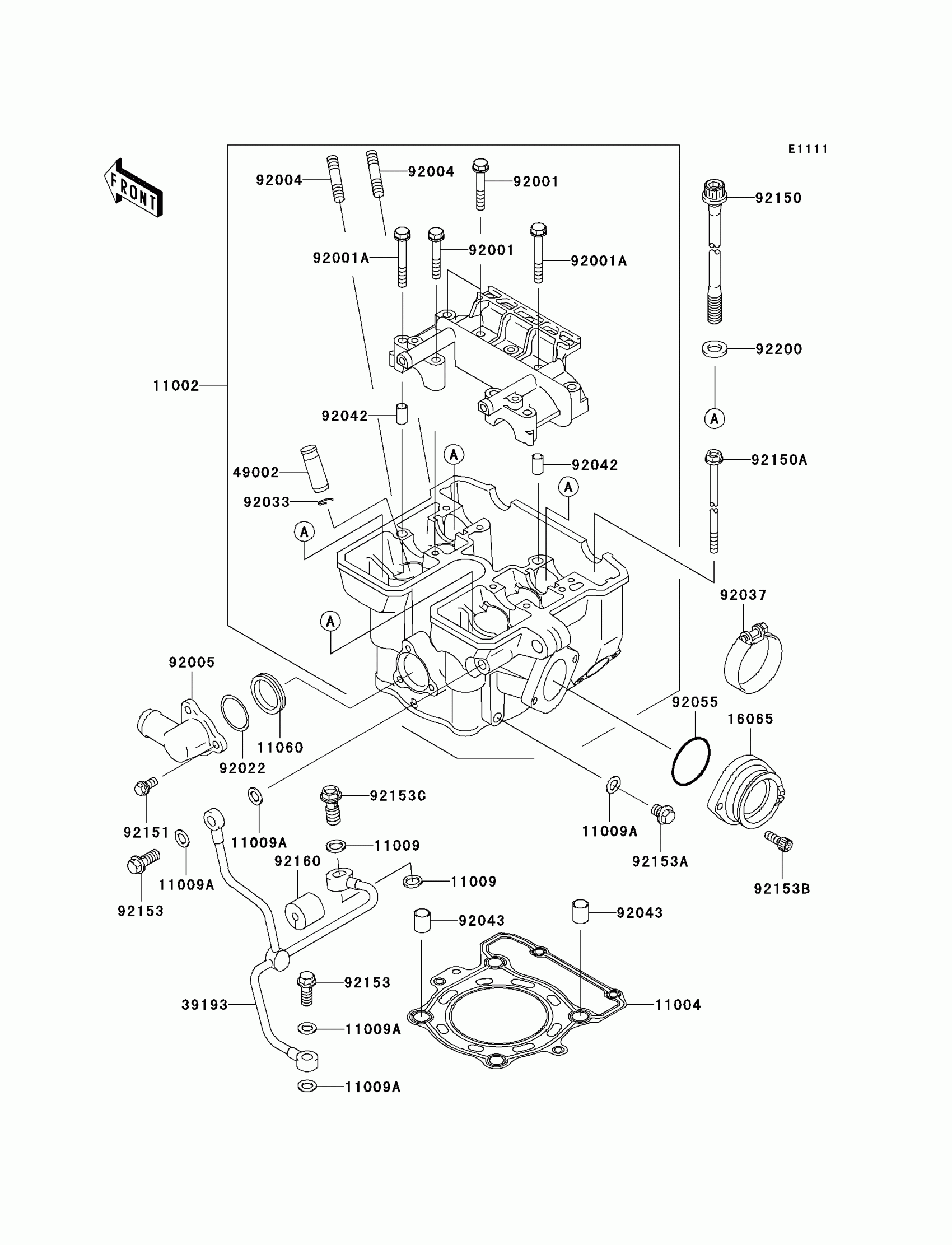

Find the part on the Cylinder Head diagram for your 2001 Kawasaki KLX300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KLX300R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X10

132Y0810

1
Out of stock

11004

GASKET-HEAD

11004-1314

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1317

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

11009A

GASKET,8.2X14X1.0

11009-1344

1
Out of stock

11060

GASKET,THERMOSTAT

11060-1300

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1283

1
Out of stock

39193

PIPE-OIL

39193-1029

1
Out of stock

49002

GUIDE-VALVE

49002-1126

—
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1
Out of stock

92001A

BOLT,6X46

92001-1872

1
Out of stock

92002

BOLT,6X16

92002-1143

1
Out of stock

92002A

BOLT,BANJO,8X20

92002-1618

1
Out of stock

92004

STUD,8X22

92004-1217

1
Out of stock

92005

FITTING

92005-1258

1
Out of stock

92022

WASHER,25.3X30X1

92022-161

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92037

CLAMP,ID=53,BLACK

92037-1304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O

92055-1255

1
Out of stock

92150

BOLT,10X165

92150-1368

1
Out of stock

92150A

BOLT,6X135

92150-1552

1
Out of stock

92150B

BOLT,BANJO,10X23

92150-1641

1
Out of stock

92160

DAMPER,6.3X22X20

92160-1013

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock
