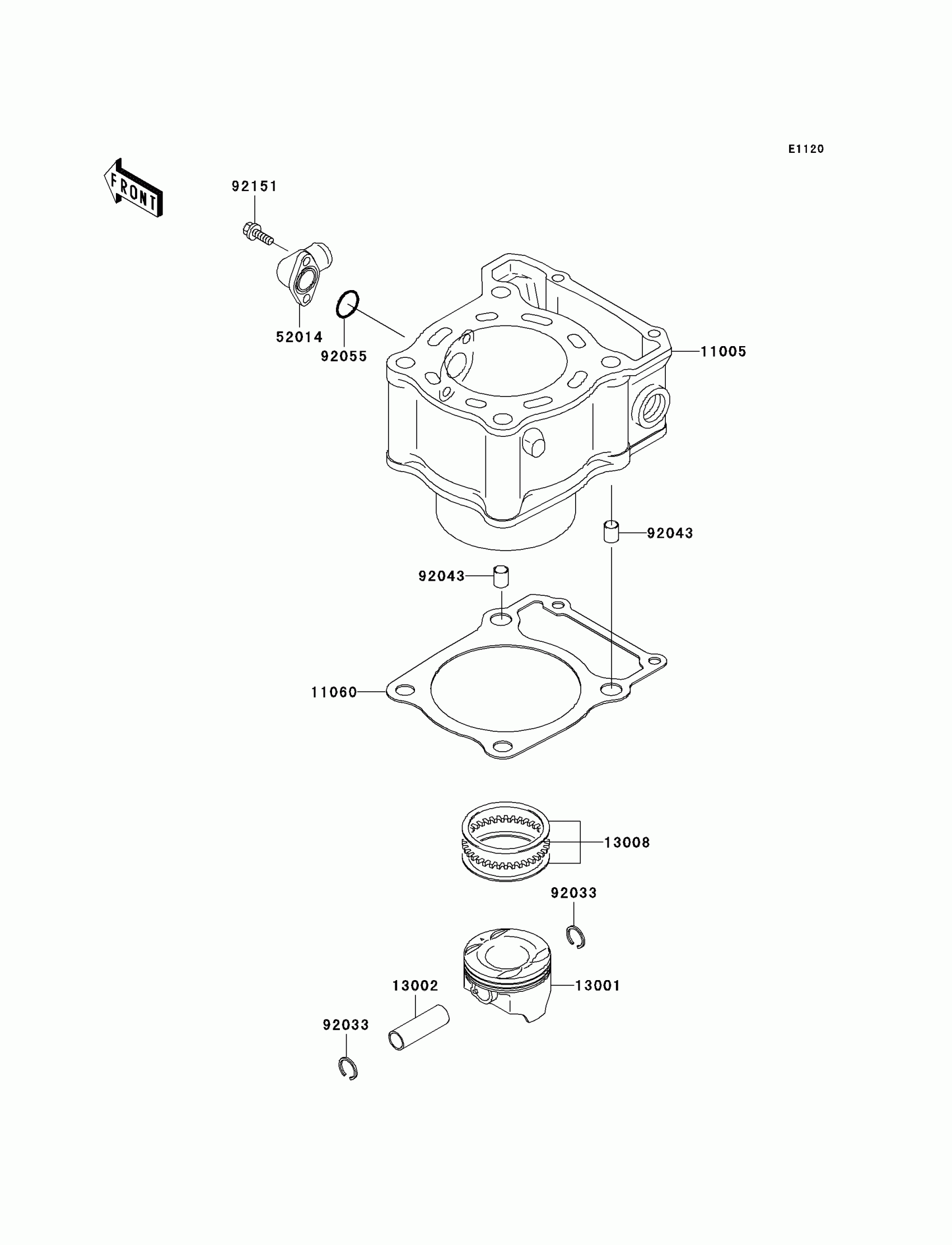

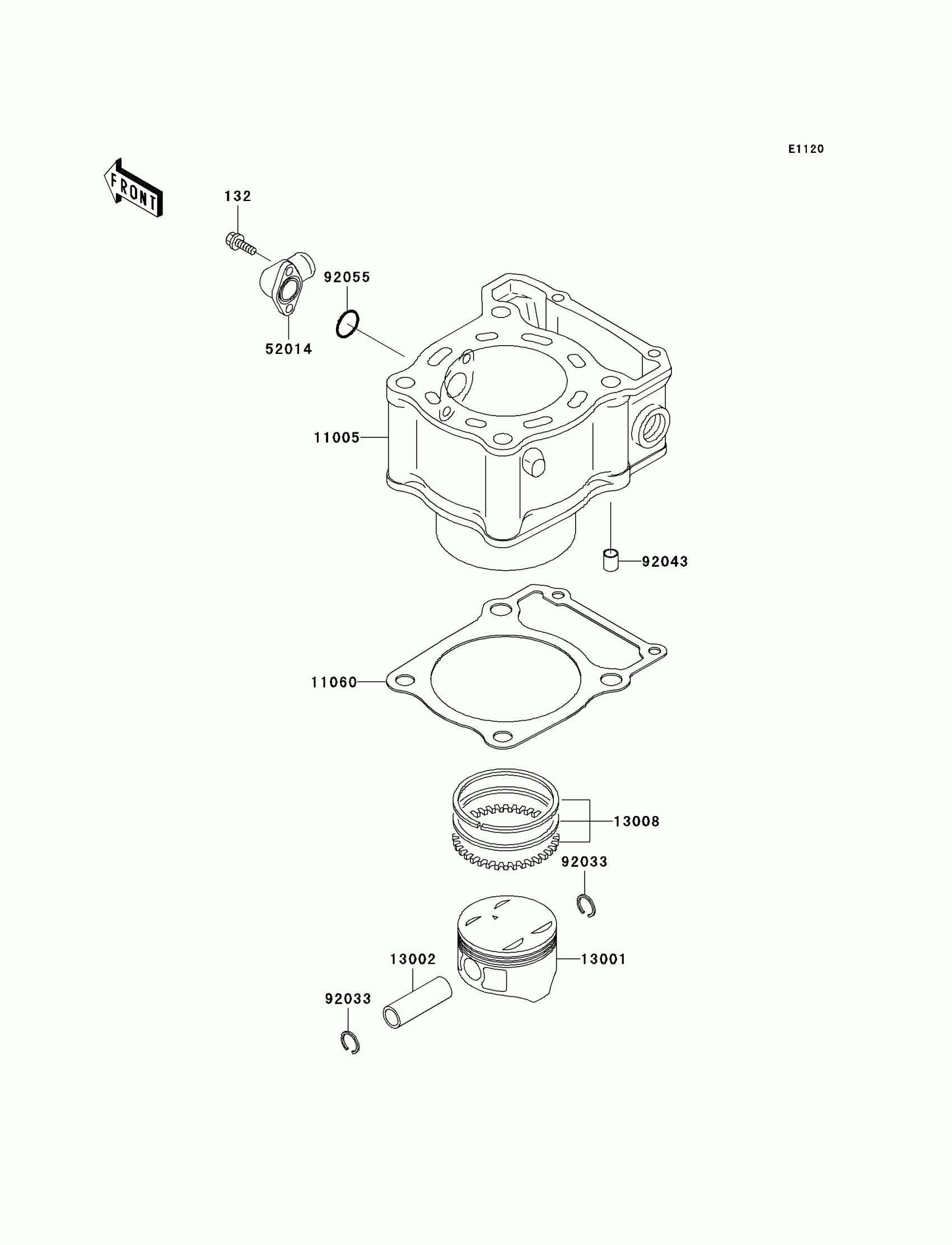

Kawasaki KLX300R Cylinder/Piston(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X14

132Y0614

Unavailable

11005

CYLINDER-ENGINE

11005-1816

Unavailable

11060

GASKET,CYLINDER BASE

11060-1740

$9.03

13001

PISTON-ENGINE

13001-1463

$156.28

13002

PIN-PISTON

13002-1109

$21.17

13008

RING-SET-PISTON,STD

13008-1071

$77.27

52014

ELBOW

52014-1084

Unavailable

92033

RING-SNAP

92033-1054

$1.76

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,19.5X1.5

92055-055

$3.29
