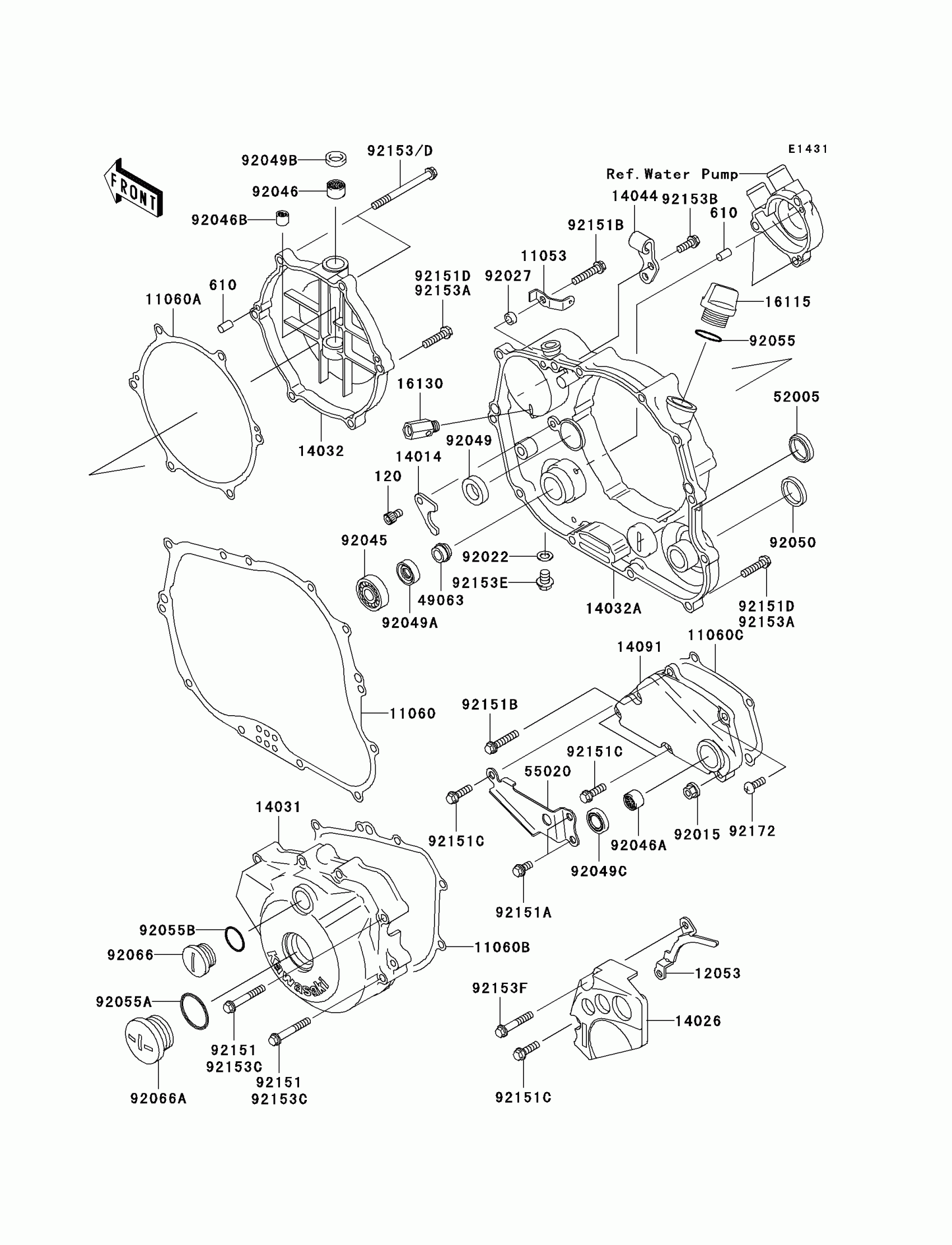

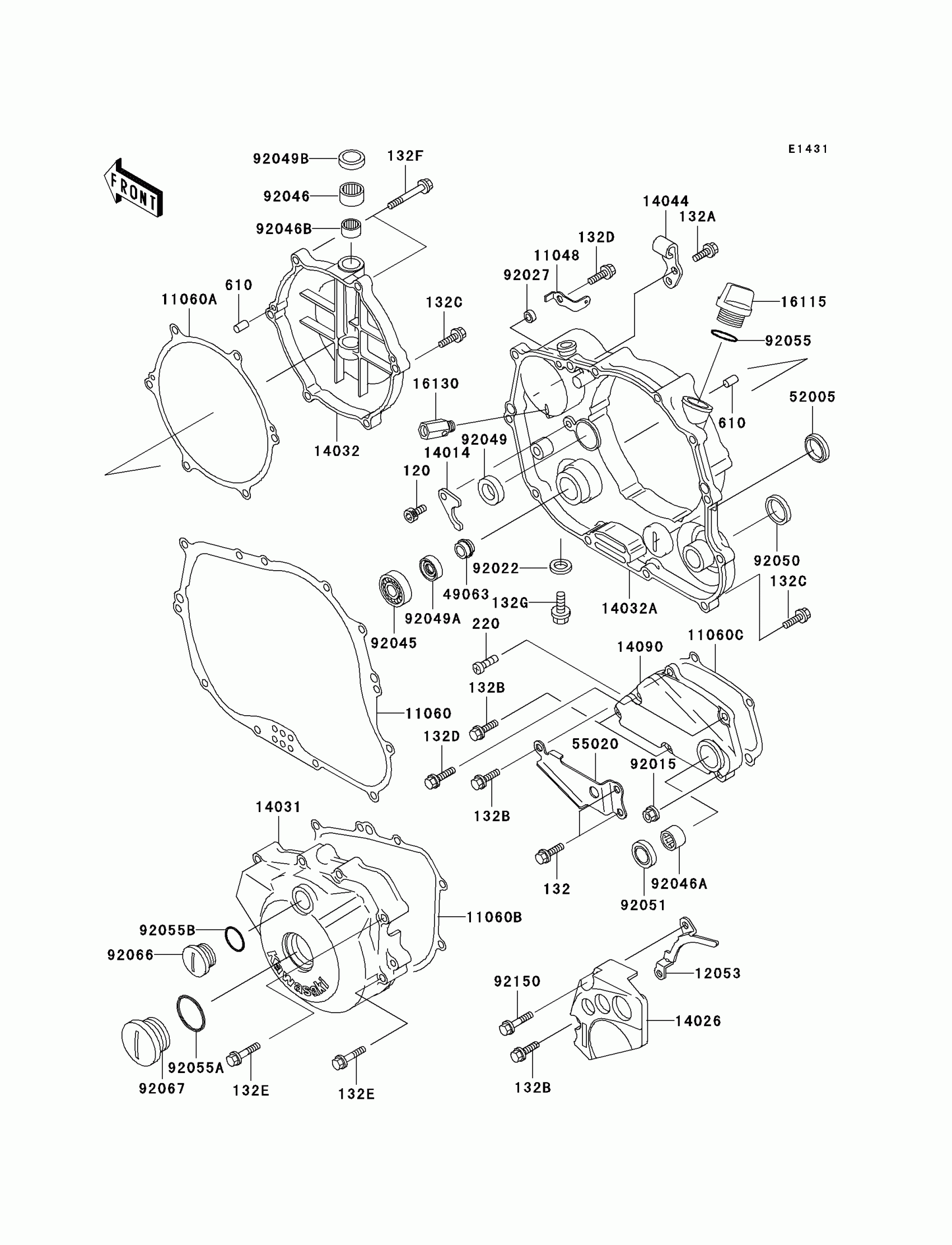

Find the part on the Engine Cover diagram for your 2001 Kawasaki KLX300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KLX300R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120P0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X16

132Y0616

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

11048

BRACKET

11048-1300

1
Out of stock

11060

1

$37.45

In stock

11060A

1

$12.55

In stock

11060B

1

$19.26

In stock

11060C

1

$11.16

In stock

12053

GUIDE-CHAIN

12053-1337

1

$12.36

In stock

14014

PLATE-POSITION

14014-1062

1
Out of stock

14026

COVER-CHAIN

14026-1186

1
Out of stock

14031

COVER-GENERATOR

14031-1301

1

$208.68

In stock

14032

COVER-CLUTCH,OUTER

14032-1335

1

$120.38

In stock

14032A

COVER-CLUTCH

14032-1438

1

$342.01

In stock

14044

HOLDER-CABLE

14044-1078

1

$7.36

In stock

14090

COVER,TRANSMISSION

14090-1285

1

$103.09

In stock

16115

CAP-OIL FILLER

16115-1053

1

$9.67

In stock

16130

VALVE-ASSY-RELIEF

16130-1001

1

$41.95

In stock

49063

1

$18.61

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

55020

1

$14.17

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92022

WASHER,8.2X14X1.0

92022-1488

1

$4.34

In stock

92027

COLLAR,6.5X10.5X4.5

92027-1885

1

$5.42

In stock

92045

BEARING-BALL,6901

92045-1246

1

$26.96

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92046B

BEARING-NEEDLE

92046-1230

1
Out of stock

92049

SEAL-OIL

92049-1191

1
Out of stock

92049A

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92049B

SEAL-OIL,AG0353-F0

92049-1262

1
Out of stock

92050

SEAL-OIL

92050-078

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O

92055-012

1

$0.95

In stock

92055A

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92055B

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

PLUG,COVER

92066-1397

1

$14.00

In stock

92067

PLUG,30X8

92067-024

1

$8.95

In stock

92150

BOLT,6X35

92150-1137

1

$5.59

In stock

132C

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132E

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132F

BOLT-FLANGED-SMALL

132Y0670

1
Out of stock

132G

BOLT-FLANGED-SMALL,8X10

132Y0810

1
Out of stock

220

SCREW-PAN-CROS

220X0616

1
Out of stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
