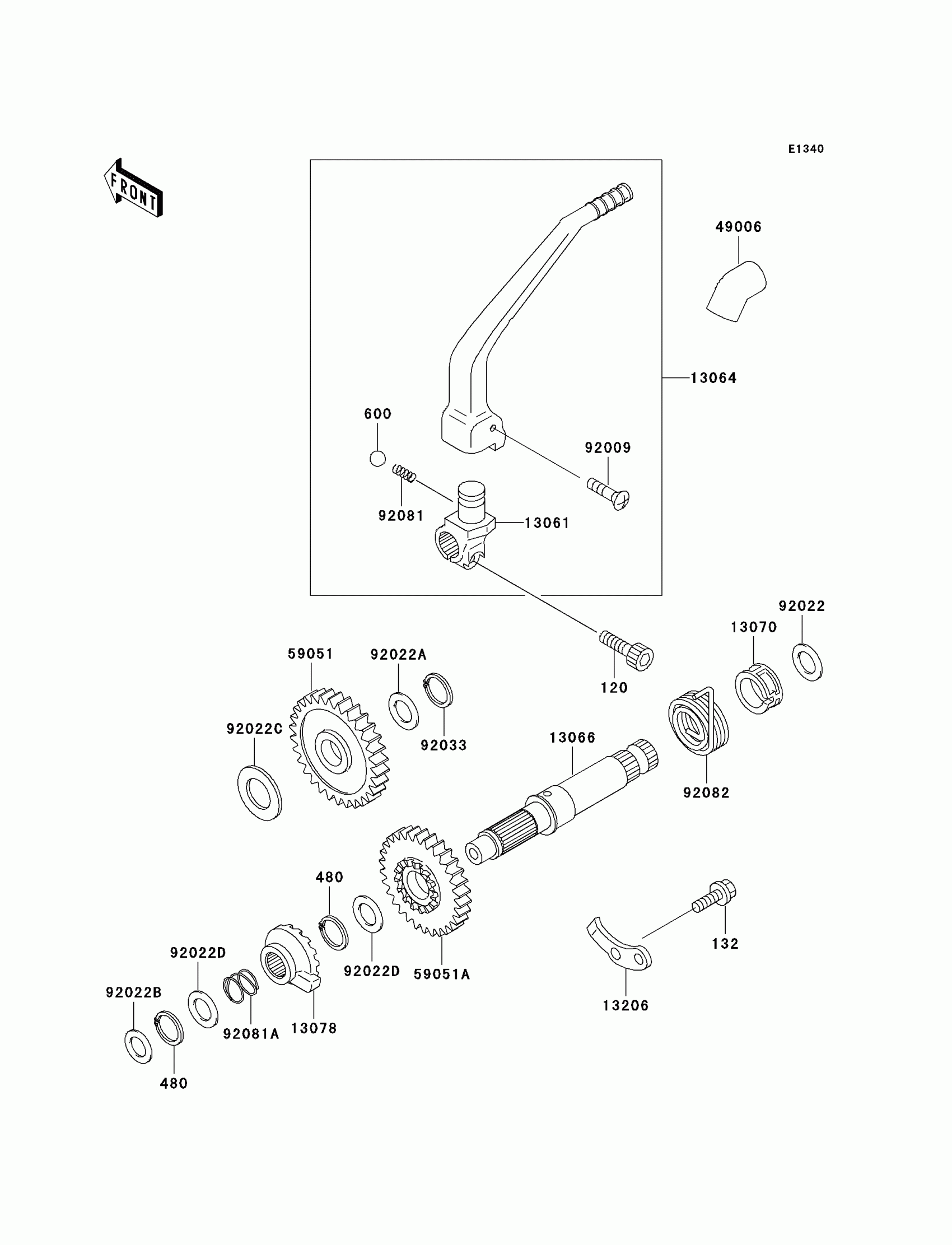

Kawasaki KLX300R Kickstarter Mechanism Diagram

Description

Price

120

BOLT-SOCKET,8X25

120S0825

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

600

BALL-STEEL,1/4

600A0800

$0.59

13061

BOSS,KICK PEDAL

13061-1397

$75.22

13064

LEVER-ASSY-KICK,PEDAL

13064-1172

Unavailable

13066

SHAFT-KICK

13066-1088

$108.81

13070

GUIDE,KICK SPRING

13070-011

$9.49

13078

RATCHET

13078-1052

$67.80

13206

GUIDE-KICK

13206-1062

$10.19

49006

BOOT

49006-1287

$7.17

59051

GEAR-SPUR,IDLE,28T

59051-1120

$153.72

59051A

GEAR-SPUR,KICK,29T

59051-1131

$131.21

92009

SCREW,6X27

92009-1607

$6.55

92022

WASHER,18.5X23X1.2

92022-118

$4.17

92022A

WASHER,17.3X25X0.5

92022-1614

$3.43

92022B

WASHER,12.3X20X0.5

92022-269

$0.98

92022C

WASHER,17.3X30X1.4

92022-270

$7.50

92022D

WASHER,16.8X22X0.5

92022-315

$4.67

92033

RING-SNAP

92033-032

$3.78

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92082

SPRING,KICKSTARTER

92082-003

$29.01
