2007 Kawasaki KLX300R Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2007 Kawasaki KLX300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

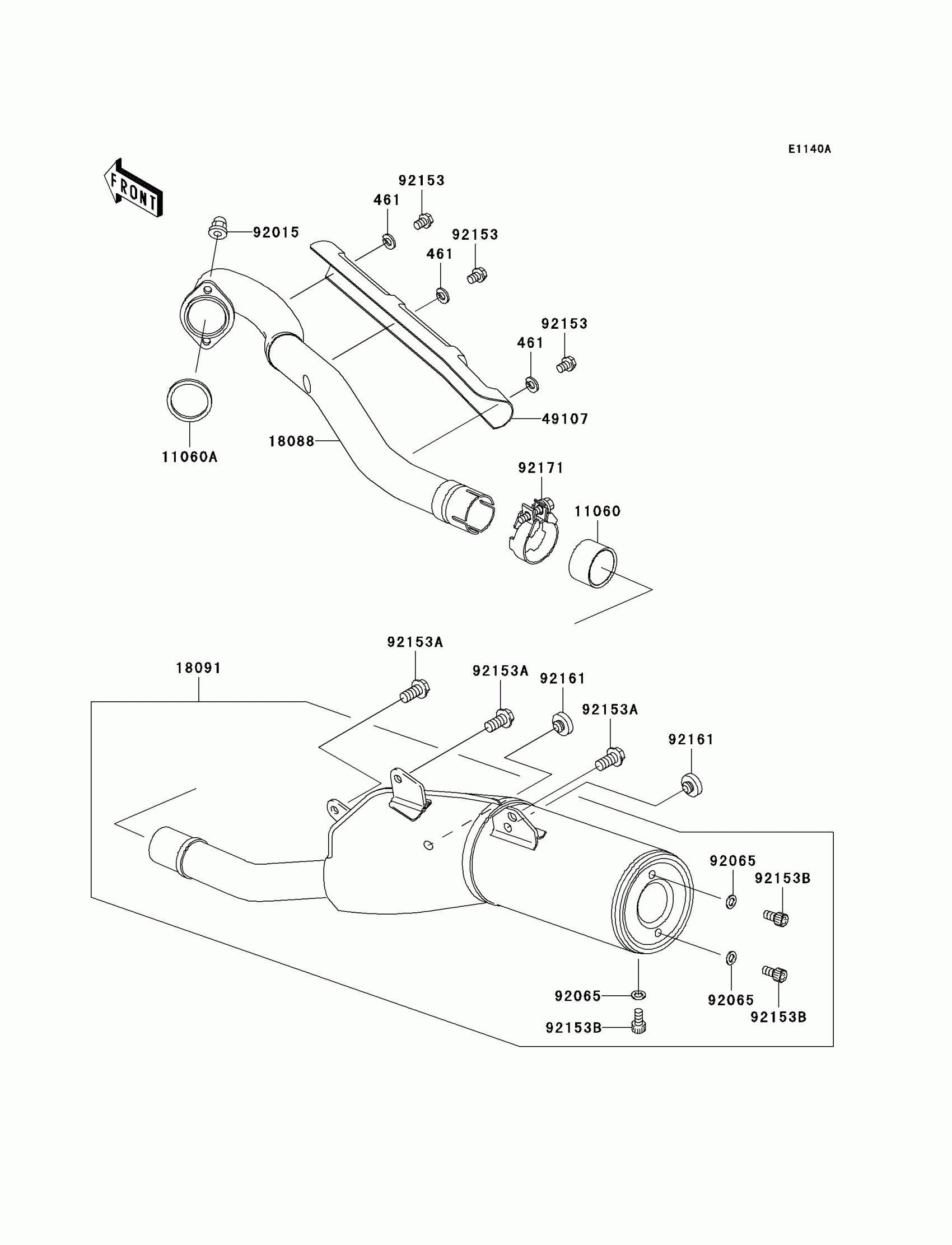

2007 Kawasaki KLX300R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

WASHER-SPRING,6MM

461S0600

1
Out of stock

11060

GASKET,MANIFOLD EXHAUST

11060-1068

1
Out of stock

11060A

GASKET,EXHAUST PIPE

11060-1203

1
Out of stock

18088

PIPE-EXHAUST

18088-0034

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-0268

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-0062

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92065

GASKET

92065-096

1
Out of stock

92153

BOLT,6X8

92153-0860

1
Out of stock

92153A

BOLT,FLANGED,8X16

92153-1308

1
Out of stock

92153B

BOLT,SOCKET,6X12

92153-1347

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92171

CLAMP,MUFFLER,BLACK

92171-0564

1
Out of stock
